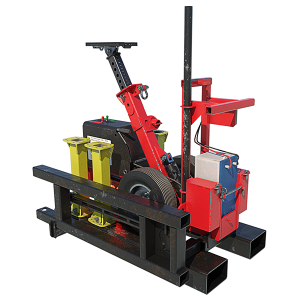

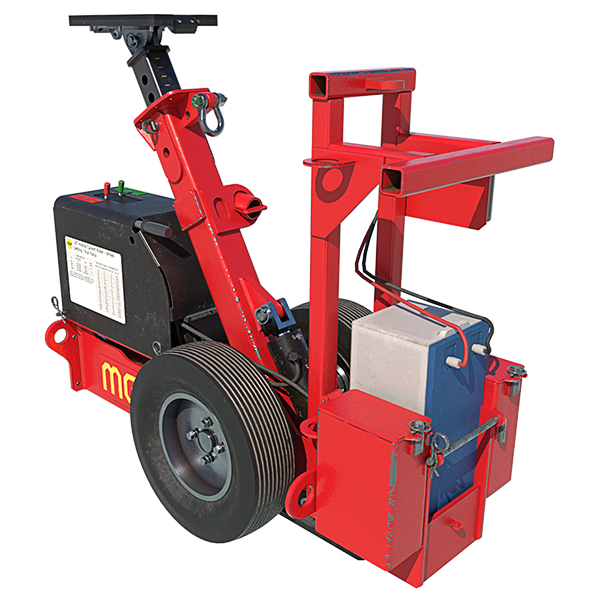

18t Hybrid Culvert Puller

18t Hybrid Culvert Puller

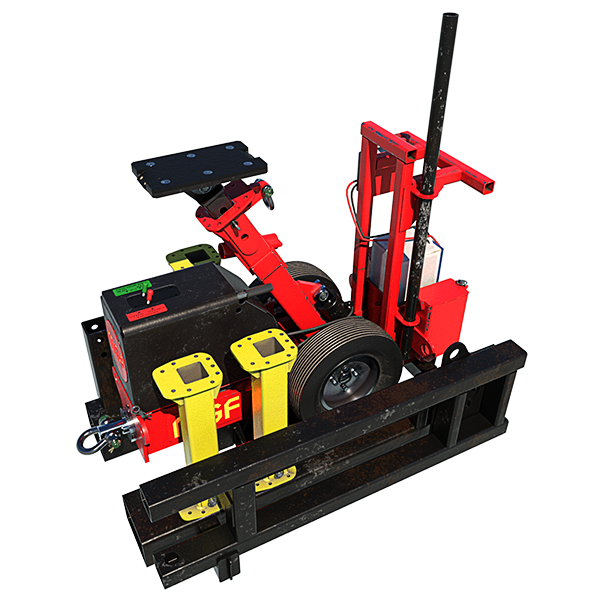

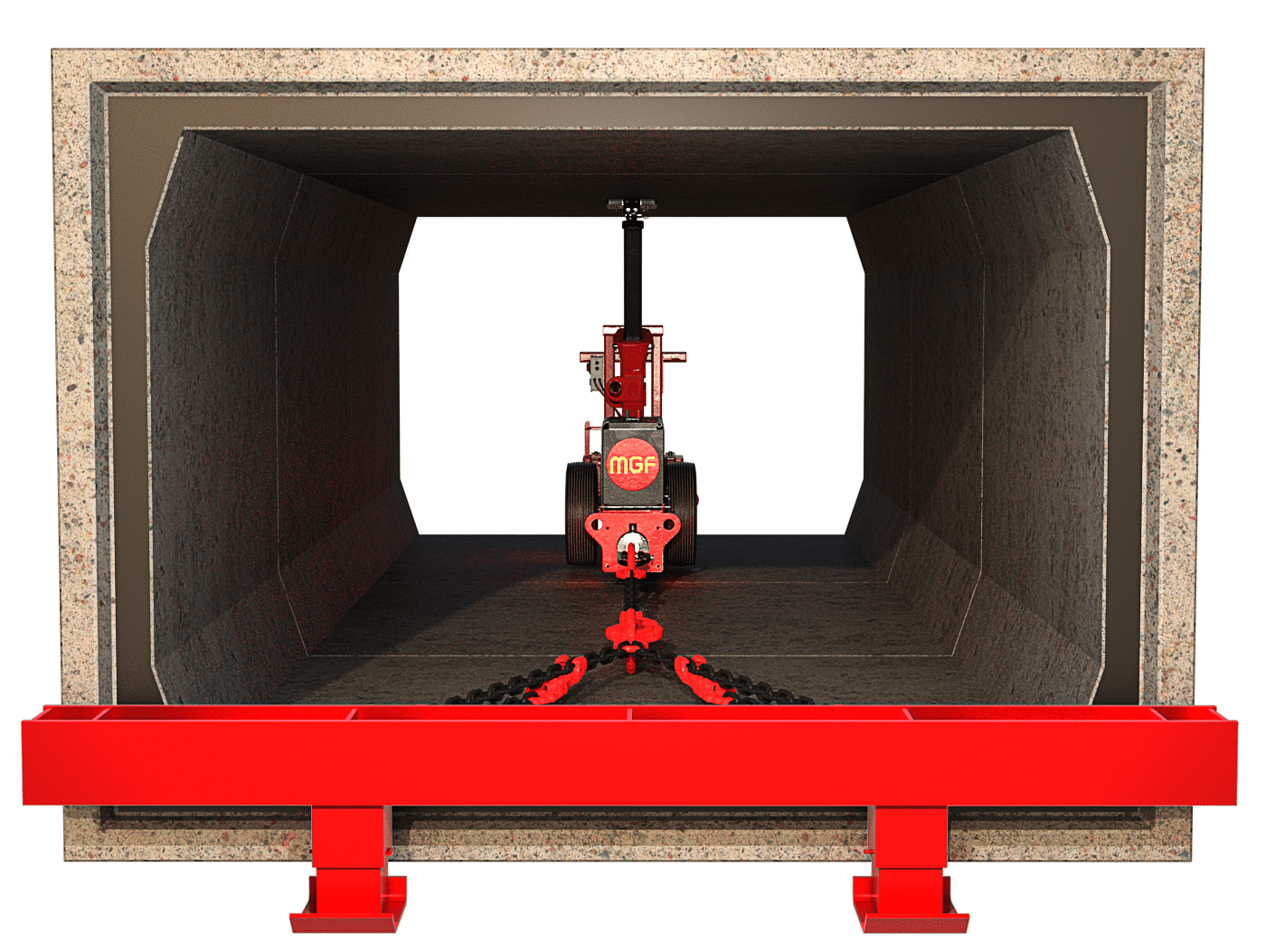

The 18t Hybrid Culvert Puller is a mechanical device designed for the fast and safe method of installing pre-cast concrete culverts and pipes with the accuracy needed to achieve specified joint tolerances. It is provided within a carry frame which also includes attachments such as the front mount tube and strut extensions, along with a spare battery and charger.
  • Suitable for culverts & pipes with internal heights between 0.6m & 3.6m (N.B. 0.6m – 1.2m requires the use of the Front Mount Tube)
  • Hybrid power options including:
    • Battery power
    • MGF motorised hydraulic pump
* Internal heights of 600mm-1200mm require a front mount tube
Pulling capacity (t)
18
Culvert Inside Height (mm)
600-3600*
Pulling Options
Pulling Beam
Power Options
12V Battery / MGF 70L Petrol Hydraulic Pump
Puller Weight (kg)
450
Remote Options
Corded/Wireless
