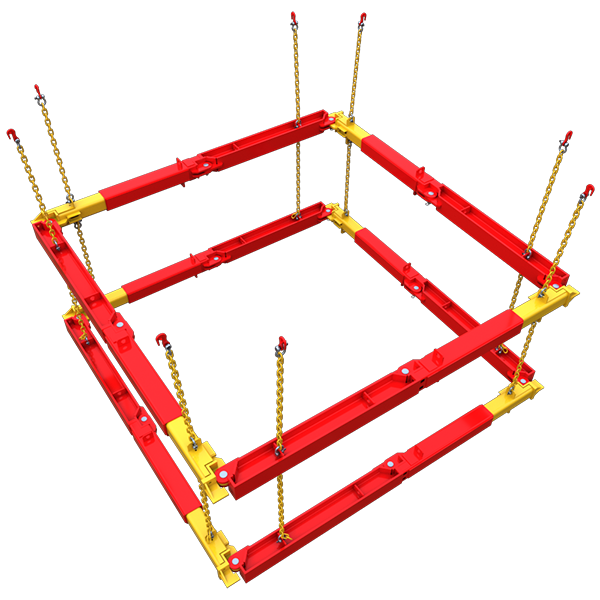

203 UC Brace

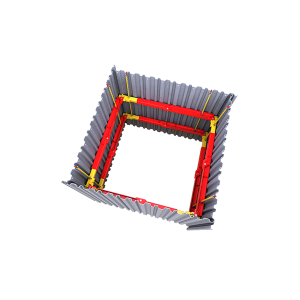

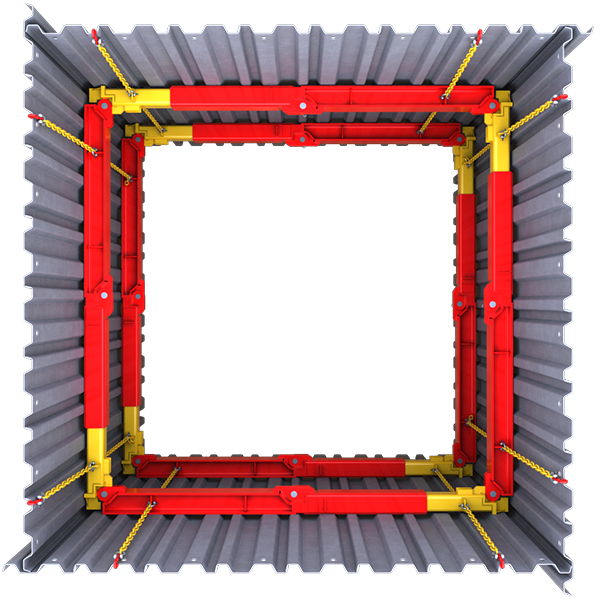

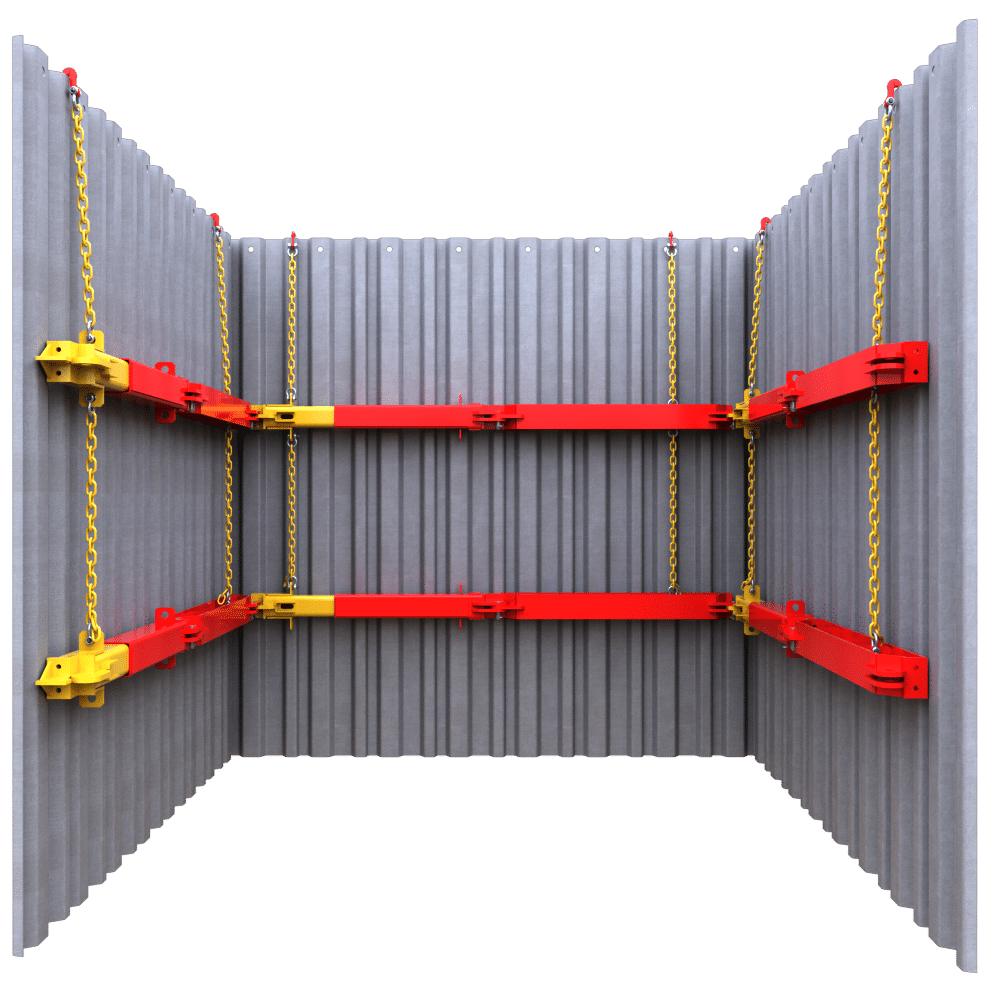

Designed to brace small to medium sized cofferdams as well as larger trenches, this system allows for the safe installation of underground structures, drive/ thrust pits or services.
  • Modular hydraulic bracing system designed to be used in conjunction with steel trench sheets or sheet piles
  • Compatible with 203 UC+ Brace to enable optimum design solutions
  • Double acting hydraulic power pack combines with a range of fixed length extensions to form the leg brace
  • Larger sizes possible when combined with 200 and 300 series cross struts
This medium duty hydraulic bracing system is both simple to assemble and highly versatile. The 203 UC Brace is a medium duty, modular, hydraulic bracing system, which is suitable for clear spans of up to 9.1m. The range is both simple to assemble and highly versatile and includes a hydraulic power pack and extension pieces.

Description
150kN 203 UC Ram
203 UC Extension
203 UC Extension
203 UC Extension
203 UC Extension
203 UC Extension
203 UC Extension
Length (min - max) (mm)
1747 - 2747
600
1000
2000
3000
4000
5000
Weight (kg)
352
79
122
208
294
380
466
