203 UC+ Brace

203 UC+ Brace

A modular hydraulic bracing range that includes a 300kN double acting hydraulic power pack, with 4 different lengths of extension bar, 0.25m, 0.9m, 3.3m and 5.0m to ensure efficient frame designs.
  • Tank Brace system lying between our 203 UC and 305 UC Series
  • 0.9m, 3.3m & 5.0m the extensions feature shear lugs for accepting knee braces, meaning no bespoke work in welding/removing shear stops.
  • Compatible with 203 UC Series Brace to enable optimum design solutions
  • Fully compatible with 200 and 300 Series Bracing Struts

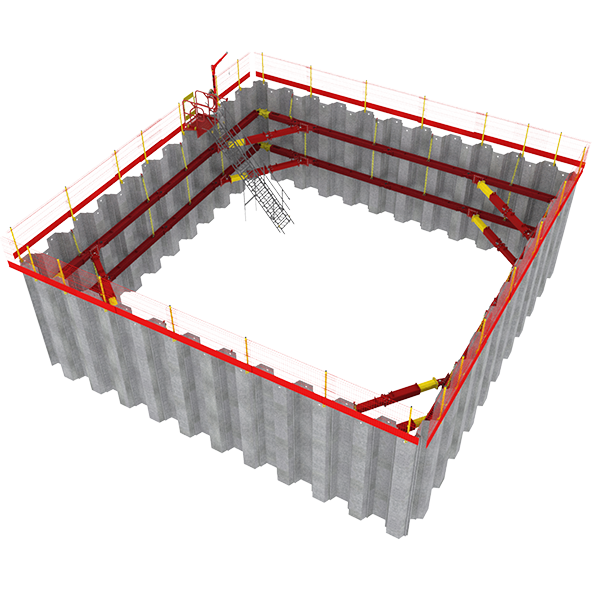

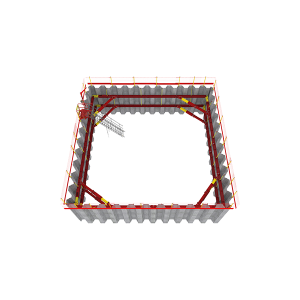

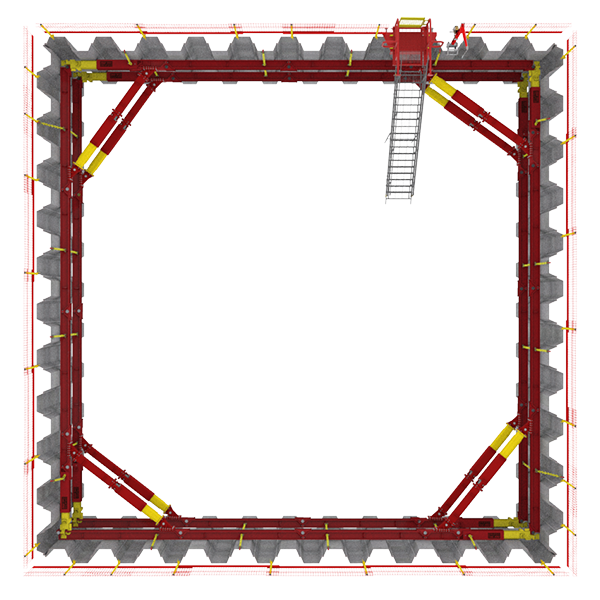

This Brace is a medium duty, modular, hydraulic bracing system, which is suitable for clear spans of up to 11m. The range is both simple to assemble and highly versatile and includes a hydraulic power pack and extension pieces.
Description
300kN 203 UC+ Ram
203 UC+ Extension
203 UC+ Extension
203 UC+ Extension
203 UC+ Extension
Length (min - max) (mm)
1600 - 2300
250
900
3300
5000
weight (kg)
425
60
130
421
610
