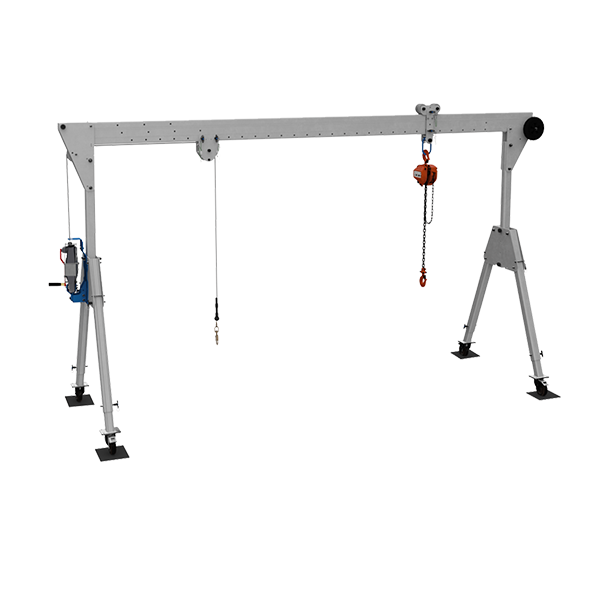

Aluminium Portable Gantry

Our Aluminium Portable Gantry is lightweight and extremely strong. This portable system can be manually assembled, using just four bolts and can safely lift to 5000kg, making it ideal for multiple applications. This system offers an overhead anchor point for multiple users for fall protection, whilst also providing great versatility for lifting materials.

Lifts up to 5 tonnes
Manually assembled
Supports multiple users for fall protection
Great versatility for lifting materials

Our Aluminium Portable Gantry range is highly customisable to meet your specific needs, with a variety of A-frame height configurations and beam lengths from 2.5 to 9 metres depending on the WLL.

Capacity

Max. Goods Lifting (kg)

Max. Personnel Lifting (kg)

Fall Arrest (Persons)

1000

500

2000

1000

3000

1500

5000

2000

Dimensions

Min. Height of Lift (mm)

Max. Height of Lift (mm)

Min. Available Span (mm)

Max. Available Span (mm)

1605

5826

2500

9000

1605

5826

2500

9000

1605

5826

2500

8400

1660

5827

2500

8400

2181

5000

2500

5500
