Aluminium Trench Box

Aluminium Trench Box

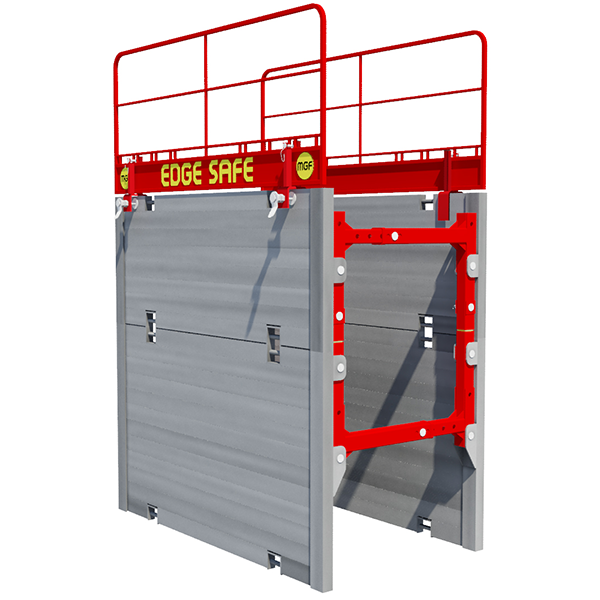

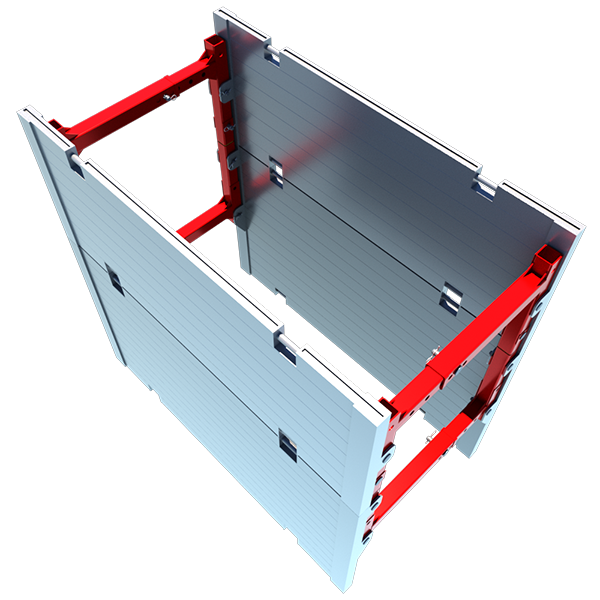

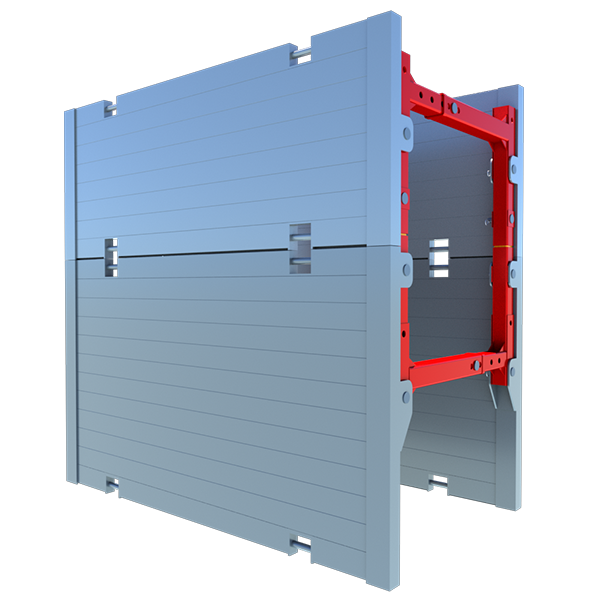

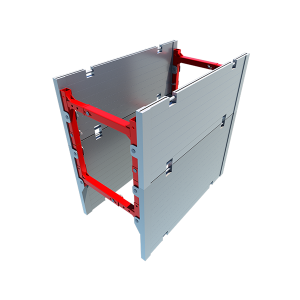

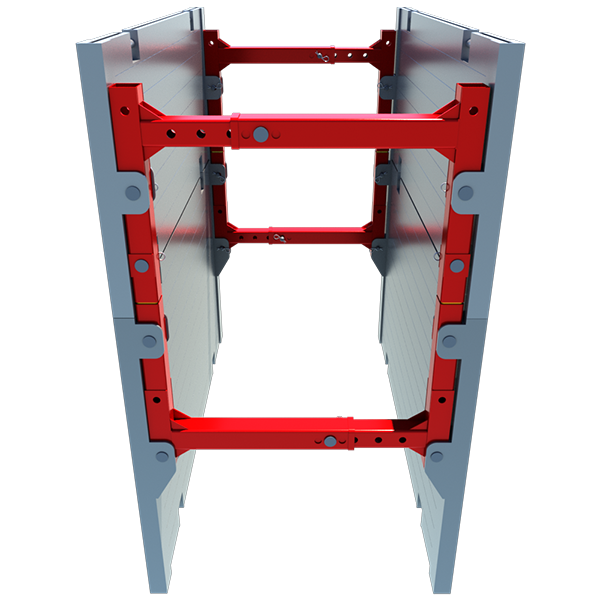

Our Aluminium Trench Box is a lightweight, two-sided mechanical excavation support system ideal for installing shallow utility pipes and services where ground movement is non-critical.
  • For trenches up to 2.4m deep and 1.75m wide
  • Ideal for use when a small excavator restricts the maximum weight
  • Recommended pipe lengths of up to 2.5m and pipe outer diameters of up to 0.75m
  • Designed to be installed using the excavate and lower in place technique

Description (m)
2.0 x 1.5 Base
2.0 x 1.0 Top
2.5 x 1.5 Base
2.5 x 1.0 Top
3.0 x 1.5 Base
3.0 x 1.0 Top
Max Depth (m)
2.4
2.4
2.4
2.4
2.4
2.4
Internal Width (mm)
735 - 1635
735 - 1635
735 - 1635
735 - 1635
735 - 1635
735 - 1635
Panel Thickness (mm)
60
60
60
60
60
60
Box Weight (kg)
336
242
382
270
428
298
Length Between Struts (mm)
1790
1790
2290
2290
2790
2790
Clearance Below Bottom Struts (mm)
825
825
825
