Auger

Our Product Range / Excavation Solutions / Trench Sheets, & Sheet Piles / Installation & Extraction Ancillaries / Auger

Auger

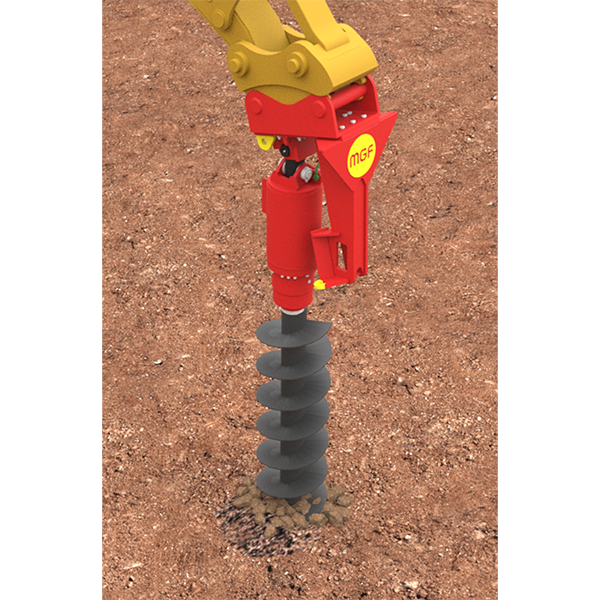

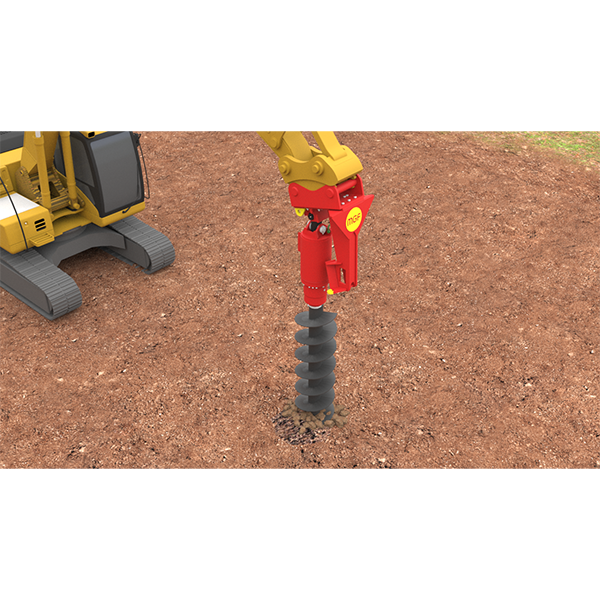

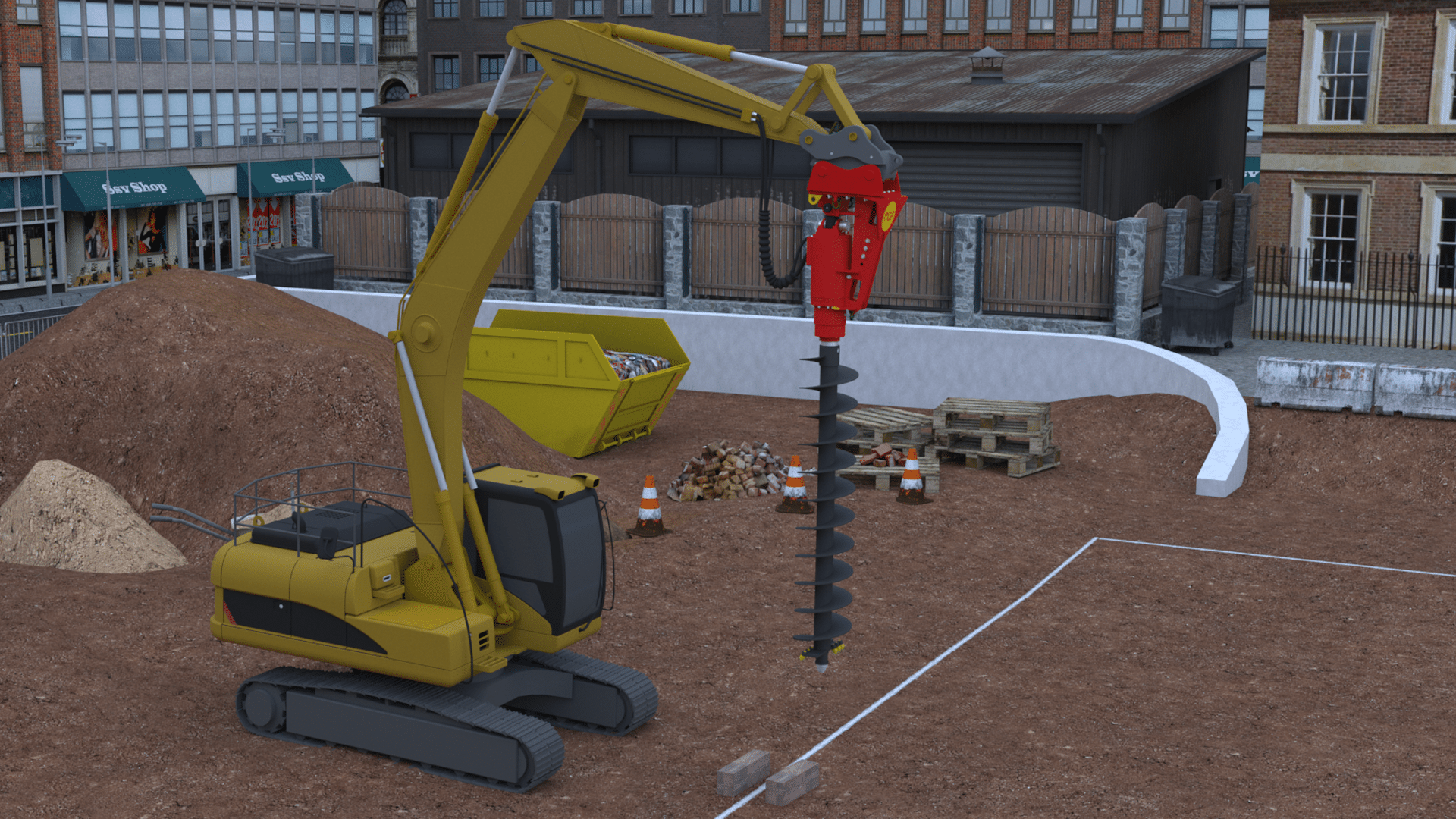

For use in difficult ground conditions, MGF’s Auger can be used to drill into the ground to loosen the material prior to using an EMV. The Auger connects to the excavator quick hitch using our Pipe Lifter bolted head plates for ease of use on site.

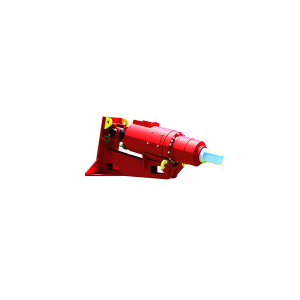

Supplied with an in house developed cradle to control the auger during use
Telescopic extension to achieve a max depth of 6.4m or above 6.4m rigid extension pieces can be added to achieve 9m max with 400dia drill
Ø400mm drill bit available
Suitable for excavator capacities from 13t-45t

A complementary product to our existing EMV range.

Auger Data

Oil Pressure Range (bar)

Torque Range (Nm)

Oil Flow Range (lpm)

Speed Range (rpm)

Hub Options (mm)

Height (mm)

Width (mm)

Weight (kg)

Hitch Options

Auger Range

Rec. Drilling Diameter Range

35000 Max.

180 - 310

20510 - 35323

80 - 225

11 - 31

110 sq

1411

406

442

Single Pin Hitch | Double Pin Cradle Hitch

300 - 1500
