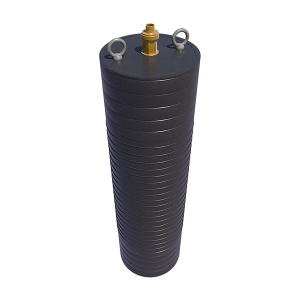

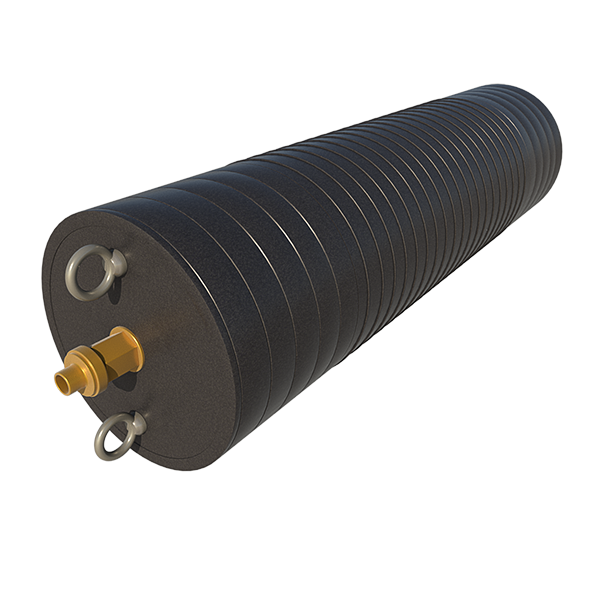

Blank Pipe Stopper

Blank Pipe Stopper

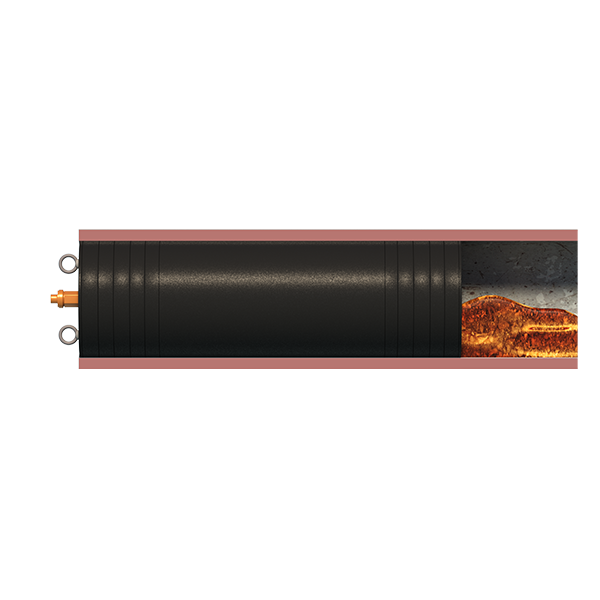

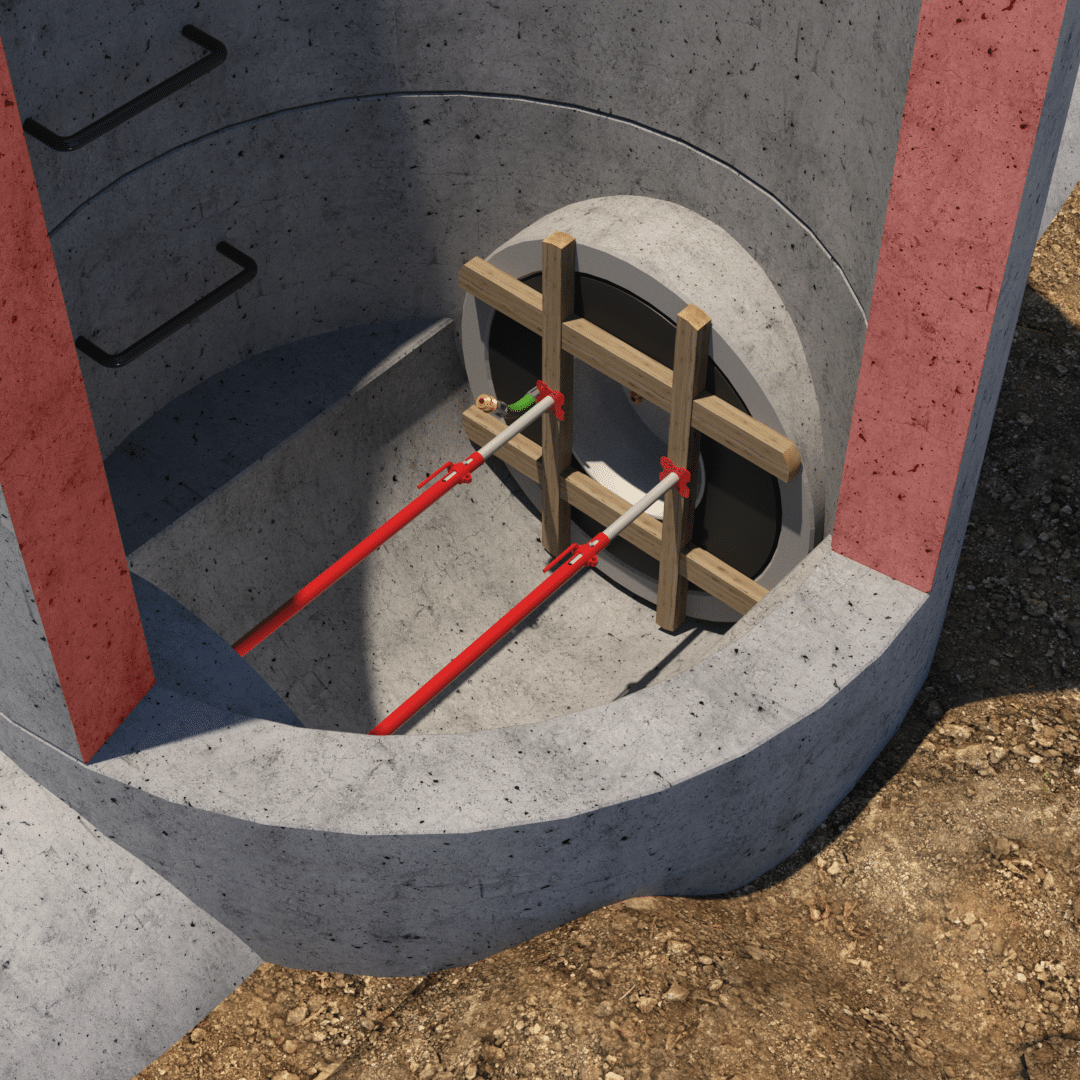

The Blank Pipe Stopper is an optimum solution when quick and reliable sealing of drainage is required. The extensive range of sizes allows reliable pipe sealing and inflation is via a hand pump or compressor adaptor fitted with a pressure regulator.
  • Durable construction expandable pipe stopper
  • Pipe internal diameters from 75mm to 2000mm
  • Rapid and reliable pipe sealing
Range (mm)
100/200
150/300
200/400
300/600
500/1000
600/1200
800/1400
Maximum Inflation Pressure (Inside Pipeline) (bar)
2.5
2.5
2.5
2.5
1.5
1.5
1.5
Maximum Inflation Pressure (Outside Pipeline) (bar)
0.5
0.5
0.5
0.5
0.5
0.5
0.5
Pipe Diameter (mm)
100-200
150-300
200-400
300-600
500-1000
600-1200
800-1400
Diameter Approx (mm)
90
145
195
295
450
580
785
Cylinder Length (mm)
510
460
650
735
1110
1320
1810
Total Length (mm)
555
505
700
780
1115
1365
1855
Air Requirements Approx (mm)
40
87
224
507
1525
2475
3125
Weight (kg)
1.2
1.9
2.8
7.0
17.0
25.0
41.0
Maximum Back Pressure (bar)
1.0
1.0
1.0
1.0
0.5
0.5
0.5
