Bypass Stoppers

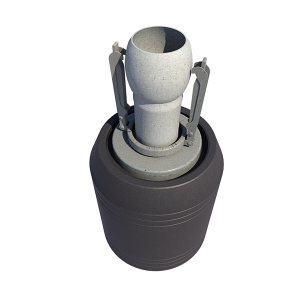

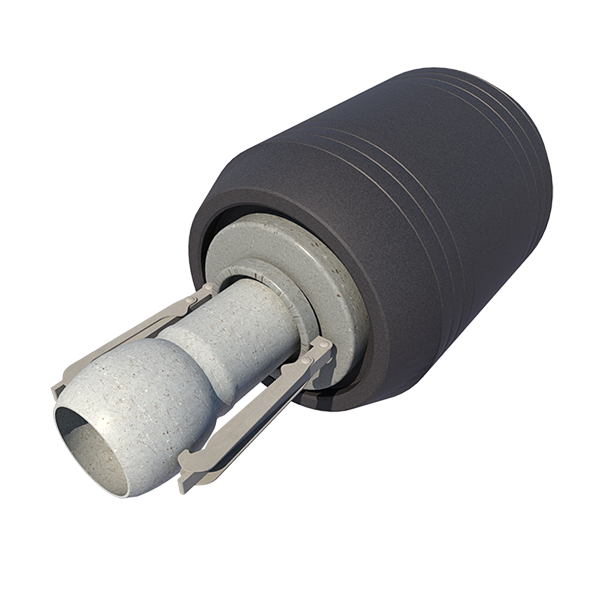

3D rendered image of our Bypass stoppers
3D rendered image of our Bypass stoppers

Bypass Stoppers

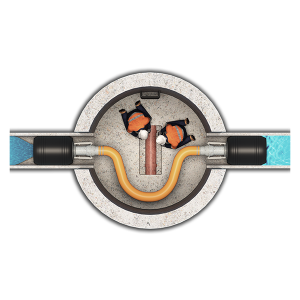

The Bypass Stoppers is an effective solution for stopping a flow of water, the bauer couplings allow rigid or lay flat hoses to be connected to the stopper, taking the flow above ground via a pump or by gravity through the area of work. They are a cost effective alternative to over-pumping as well as being easy and effective to use. Inflation is via a hand pump or compressor adapter fitted with a pressure regulator.
  • Durable construction expandable bypass/fluming stopper
  • PE core for reduced weight
  • Maximum inflation and back pressure must not be exceeded
  • Supplied with either 2″, 3″, 4″, 6″ or 8″ Bauer Male coupling, to suit customers requirements
Range
100/200
200/500
500/800
500/1200
Max Inflation Pressure (Inside Pipeline - Outside Pipeline) (bar)
1.5 - 0.5
1.5 - 0.5
1.5 - 0.5
1.5 - 0.5
Pipe Diameter (mm)
100 - 200
200 - 500
500 - 800
500 - 1200
Diameter Approx (mm)
97
195
450
450
Cylinder Length (mm)
485
550
565
920
Air Requirement Approx (litres)
27
143
310
1420
Weight (kg)
2.2
7.0
32.0
42.5
Max Back Pressure (bar)
0.5
0.5
0.5
0.5
