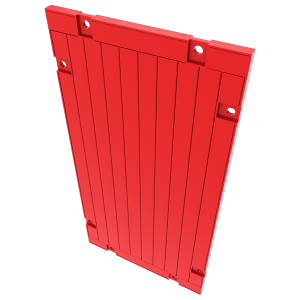

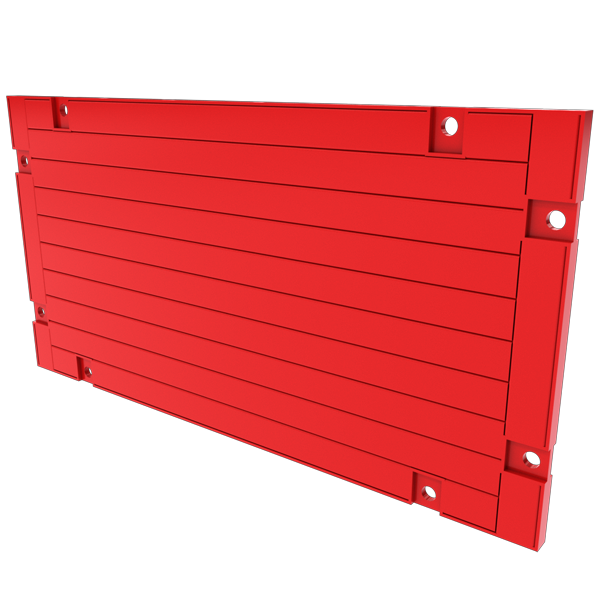

Endsafe Panels are a steel panel system designed to safely support vertical soil faces at open ends of boxes or trench excavations where it is not possible to batter the soil back.
  • Designed to be installed by an excavator
  • For trench depths up to 4.8m deep and widths from 1.2m to 4.0m (panels can be used in both orientations and should be combined with similar panel thickness to provide the required coverage)
  • Can be used instead of trench sheets to close off open ends of box systems
  • Designed to safely support vertical soil faces at open ends of box and hydraulic waler systems where it is not possible to batter the soil back
No more than 2 panels should be connected together. Utility Panels also available, which include a 1.2m square hatch to accommodate service entry

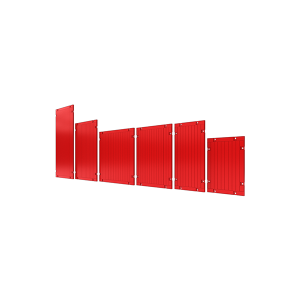

Description (L x H) (m)
1.8 x 1.2 Endsafe Panel
2.4 x 1.2 Endsafe Panel
2.4 x 1.8 Endsafe Panel
3.0 x 2.0 Endsafe Panel
2.4 x 2.4 Endsafe Panel
4.0 x 2.0 Endsafe Panel
3.0 x 2.0 Utility Endsafe Panel
2.4 x 2.4 Utility Endsafe Panel
4.0 x 2.0 Utility Endsafe Panel
Weight (kg)
225
290
410
510
380
845
512
453
840
Panel Thickness (mm)
60
60
60
60
60
100
60
60
100
