Excavator Mounted Compactor Plate

Excavator Mounted Compactor Plate

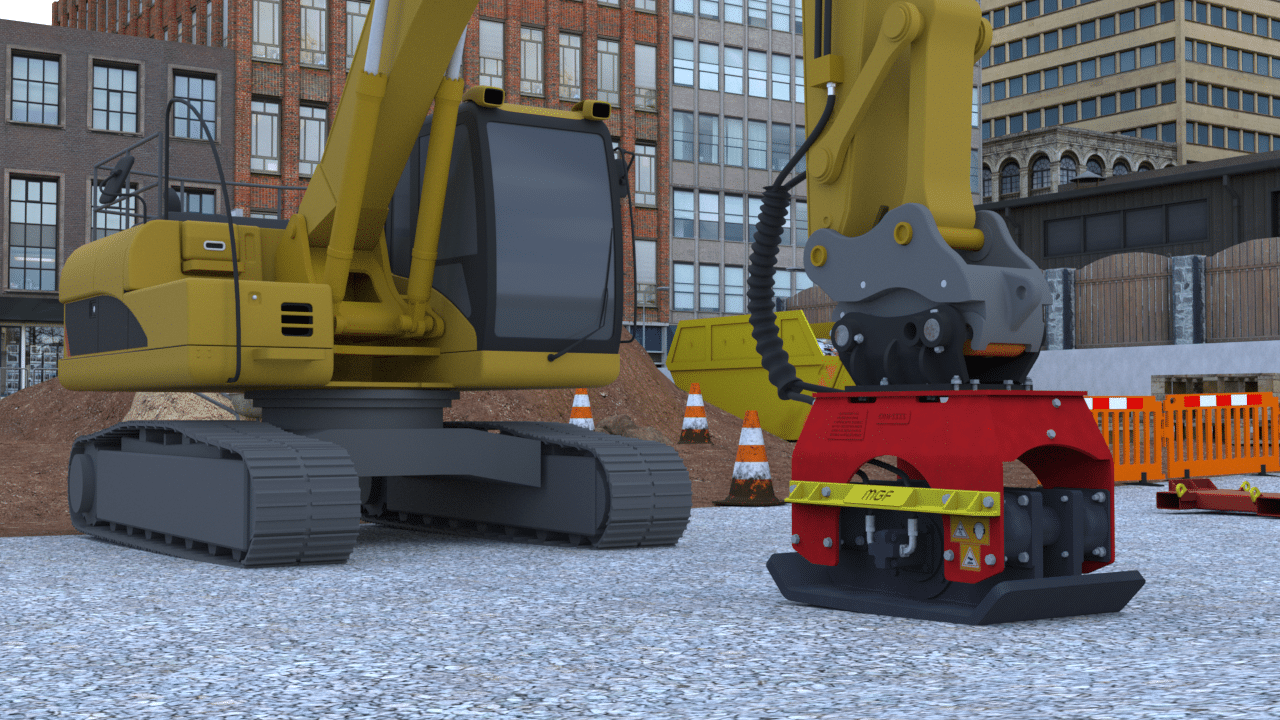

An excavator mounted compactor plate that attaches to an excavator quick hitch mechanism using a universal quick hitch head plate. This product can be used to provide safe, fast and efficient compaction for different materials, such as soil, sand or gravel. The MGF Excavator Mounted Compactor Plate also benefits from the removal of operatives from the area being compacted, improving safety and speed.
  • Suitable for use with a wide range of ground types and applications
  • Offering high compaction forces and fast turnaround times
  • Suitable for excavators ranging from 8t – 22t
  • Supplied with a universal quick hitch head plate, which can be adjusted to suit either 65mm or 80mm pins
Specification
Carrier Weight (kg)
Operating Weight (kg)
Height (mm)
Width (mm)
Base Plate (mm)
Base Plate Thickness
Oil Supply (l/min)
Maximum Operating Pressure (bar)
Maximum Back Pressure (bar)
Force at Maximum Frequency (kg)
Frequency (Hz)
Reservoir Capacity (85/90W Gear Oil) (l)
Measurement
7,711 – 21,773
799
800.1
710
710 x 1016
38
121
200
21
7,388
33
4.8
