GRP Stackshore

GRP Stackshore

GRP Stackshore is a new system that utilises 2m long GRiPSHORE+ Trench Box panels along with lightweight GRP Stackshore panels to form 4 sided box configurations.
  • Ideal for rail jobs and utility works
  • System can be fully assembled by hand
  • System weights from 361kg – 412kg
  • System is 4 sided and can be configured with openings on any face

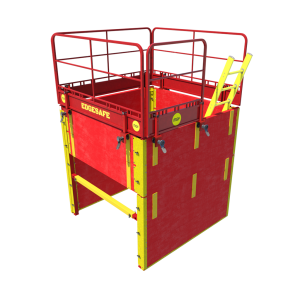

GRP Stackshore panels weigh only 18kg and a fully built-up configuration, at 2.0m x 2.0m x 2.0m, with one opening weighs 400kg. The system is specifically targeted towards rail jobs where shoring is required around catchpits/chambers. GRiPSHORE+ systems are compatible with existing MGF Edgesafe panels and brackets.
Description
2000 x 1200 GRiPSHORE+ Panel
2000 x 800 GRiPSHORE+ Panel
2000 x 400 Stackshore panel
1200mm Vertical Strut
1506mm Horizontal Strut

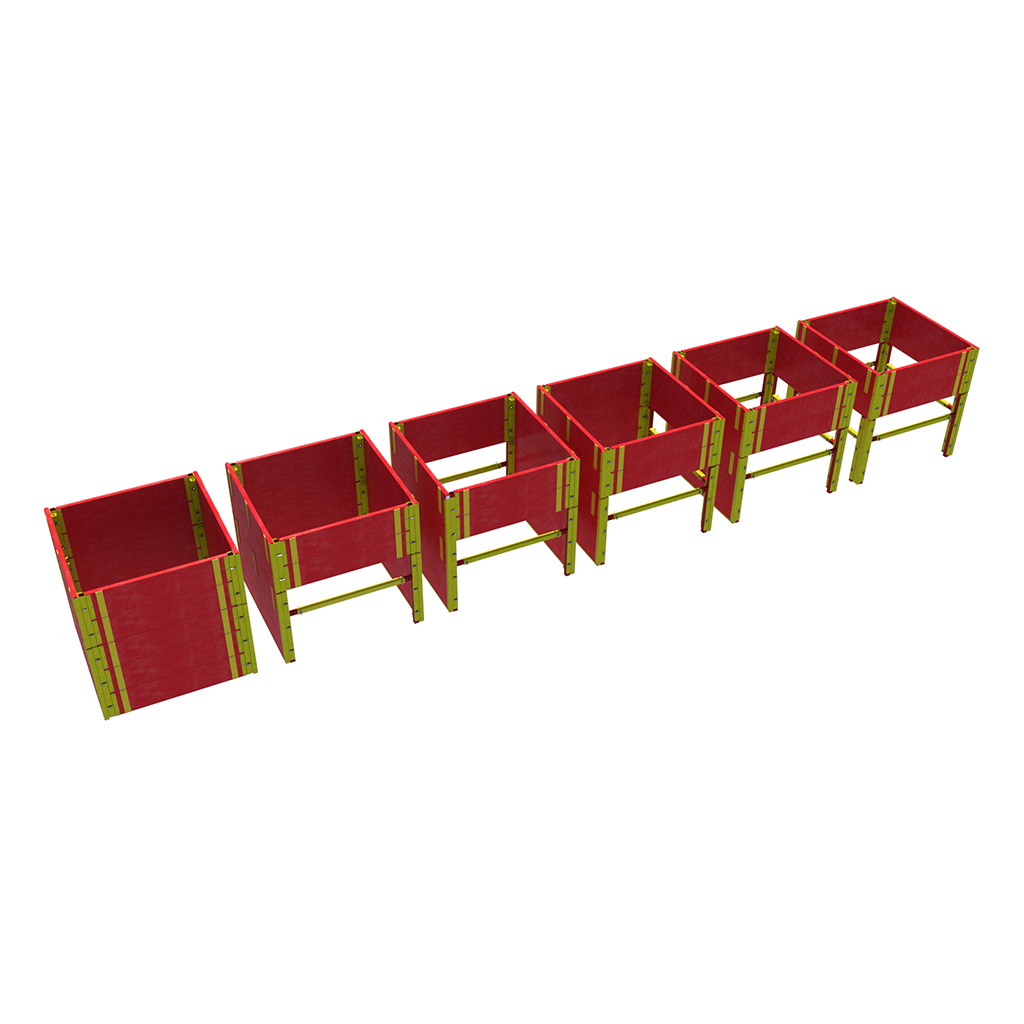

Assembled GRP Stackshore – No opening

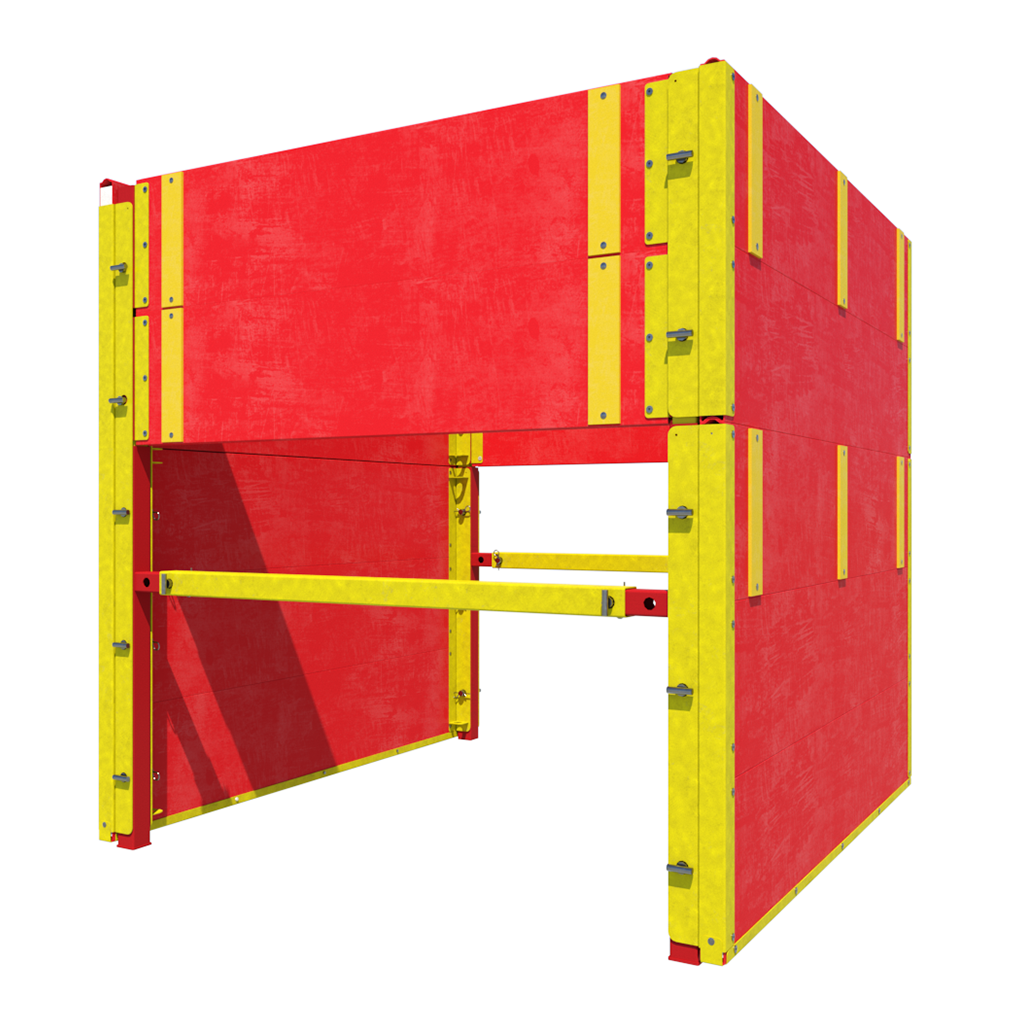

Assembled GRP Stackshore – 1 opening
Assembled GRP Stackshore – 2 openings (through)
Assembled GRP Stackshore – 2 openings (90°)
Assembled GRP Stackshore – 3 openings
Assembled GRP Stackshore – 4 openings
Weight (kg)
65
42
18
10
9

416
391
365
406
417
396
