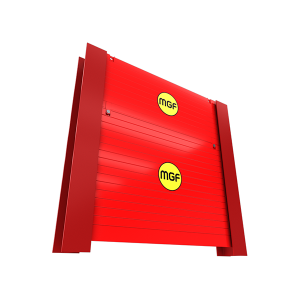

King Posts and Panels 1

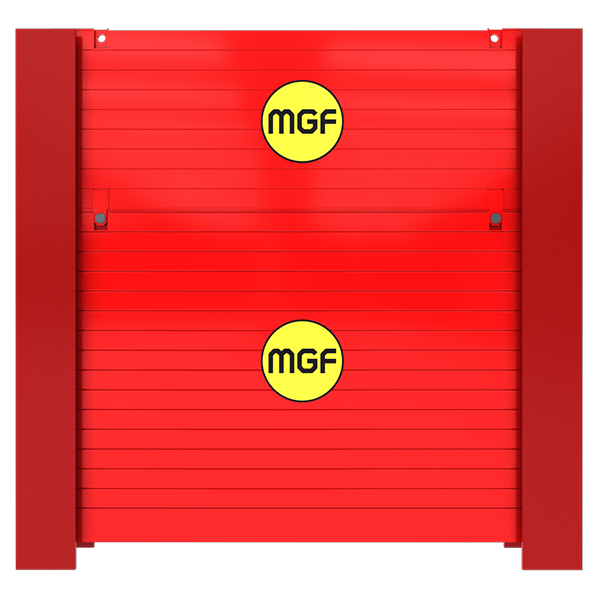

King Post & Panel 2

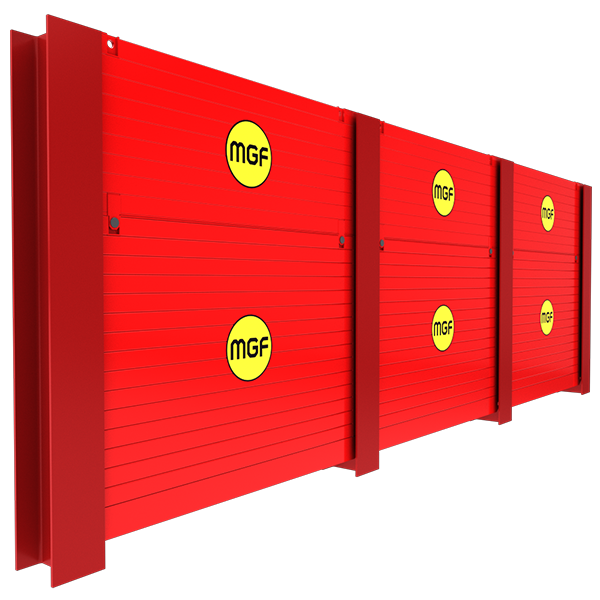

King Post & Panel 3
King Posts and Panels 1
King Post & Panel 2
King Post & Panel 3

King Posts and Panels

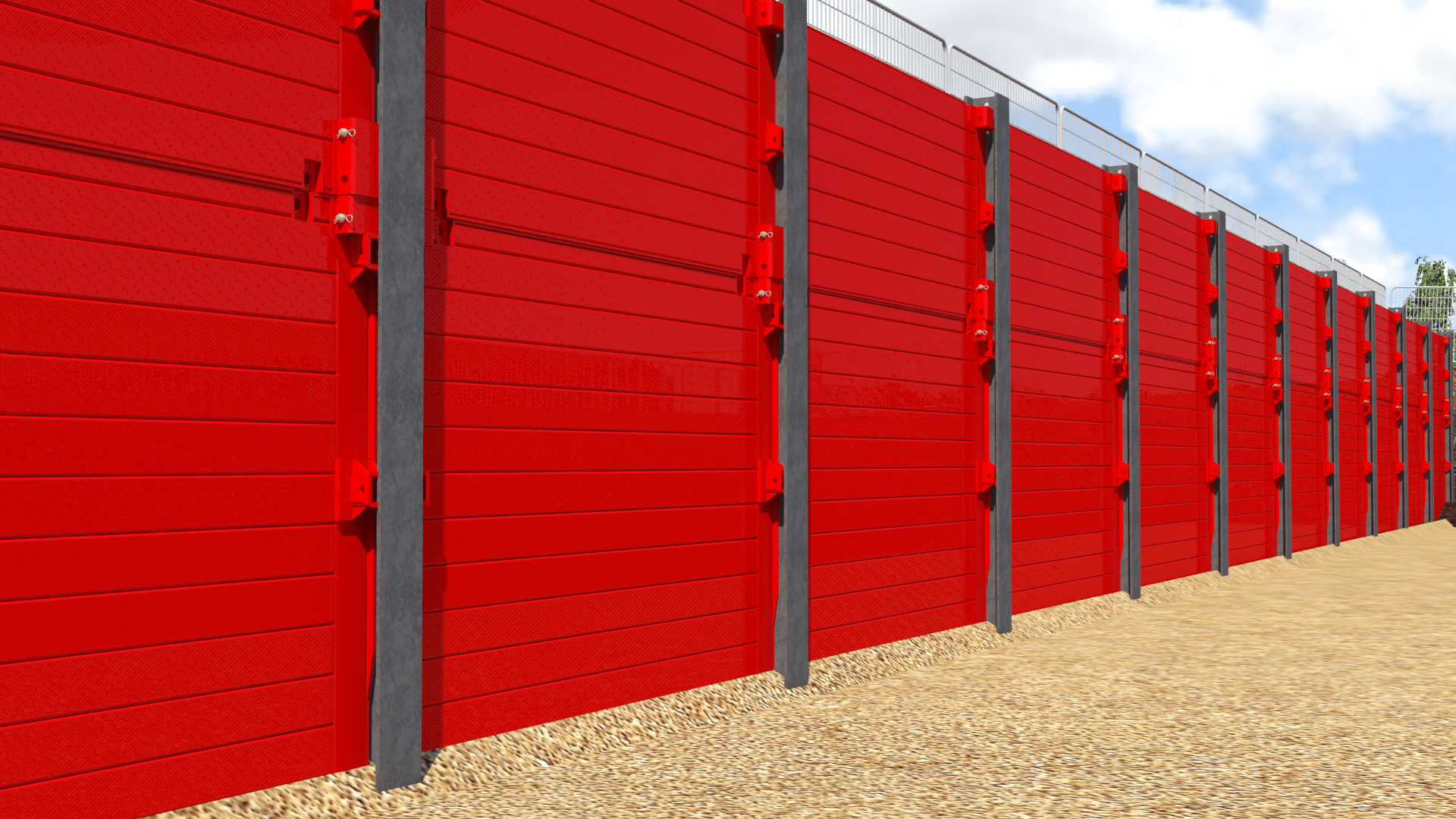

Our King Posts and Panels are an ideal solution for single-sided retaining walls or basement type excavations. For when it is not feasible to drive sheet piles or where a clear working area is essential to allow construction of the works.
  • Compatible with endsafe and trench box panels giving standard panel widths from 1.8m to 3.5m
  • Consists of steel column posts with steel in-fill panels
  • Retained heights of up to 4m
  • Allows a clear area for construction works
Base and top units can be connected to achieve additional height although endsafe panels cannot be connected to achieve additional height.
Panel Length x Height (mm)
3000 x 2010 Base
3000 x 1100 Top
3500 x 2462 Base
3500 x 1624 Top
1800 x 1200 Endsafe
2400 x 1800 Endsafe
2400 x 1800 Endsafe
3000 x 2000 Endsafe
2400 x 2400 Endsafe
4000 x 2000 Endsafe
Panel Thickness (mm)
60
60
100
100
60
60
60
60
60
100
Weight (kg)
435/586
320
970
686
225
290
410
510
380
845
Panel SWL (kN/m²)
45
45
50
50
45
45
45
45
45
45
Required King Post Centres, Cp (m)
3.1
3.1
3.6
3.6
1.9
2.5
2.5
3.1
2.5
4.1
