Manhole Brace

Manhole Brace

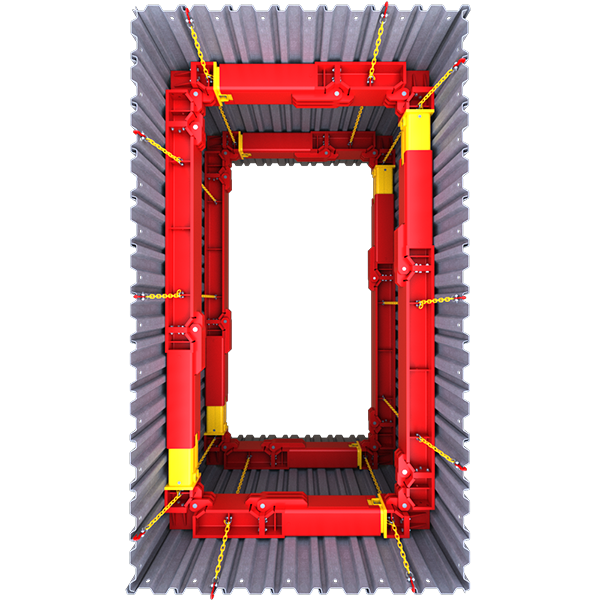

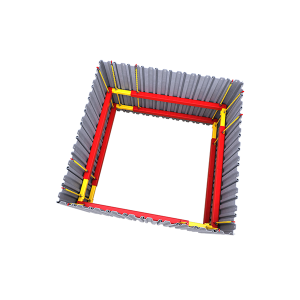

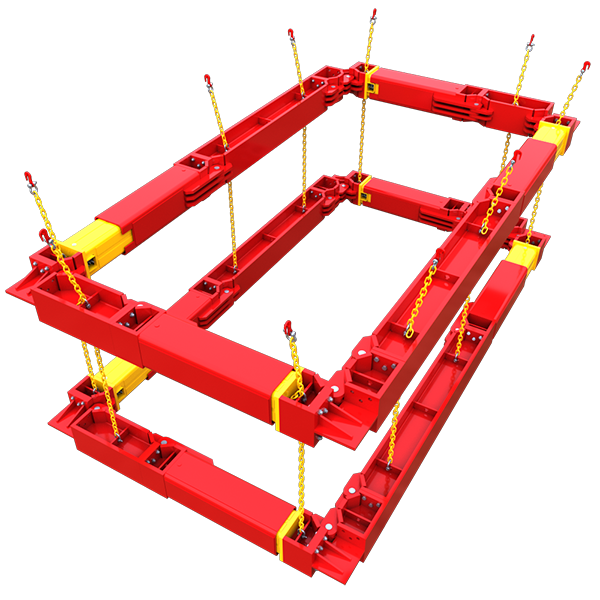

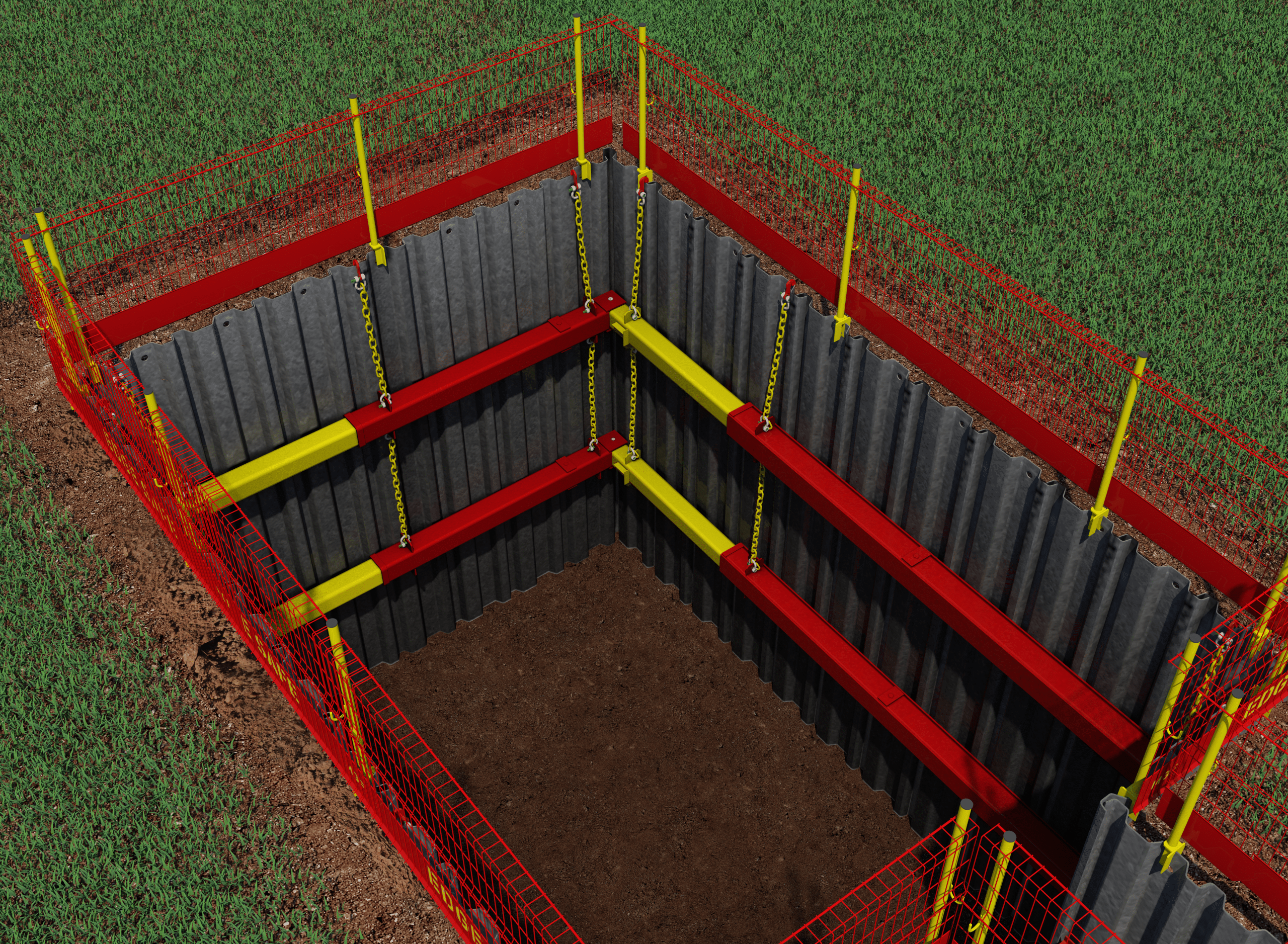

The simple to assemble, four-sided hydraulic frame system has been designed to brace small cofferdams and ensure the safe construction of manholes, pipe installations and tanks as well as carrying out repairs to highways and footpaths.
  • Available in a range of sizes from 1.4m to 6.0m
  • Individual legs are interchangeable and can be used in different combinations
  • Hydraulic cylinder incorporated in each brace leg for adjustment of frame size
  • Installed using an excavator

Product Description - Manhole Brace
(A) Leg
(B) Leg
(AB) Leg
(AB) Leg
(BC) Leg
(CD) Leg
(D) Leg
Hydraulic Type
A = SA
B = SA
AB- = DA
AB = DA
BC = DA
CD = DA
D = DA
Assembled Leg Range (min - max) (mm)
1730 - 2617
2192 - 3703
1375 - 2005
1943 - 3143
2973 - 4173
3573 - 4773
4836 - 6063
Weight (kg)
120
172
146
200
312
341
570
