Manhole Shutters

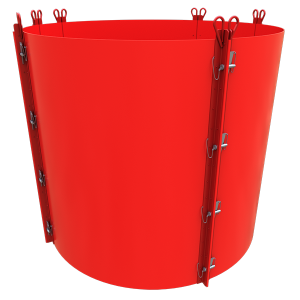

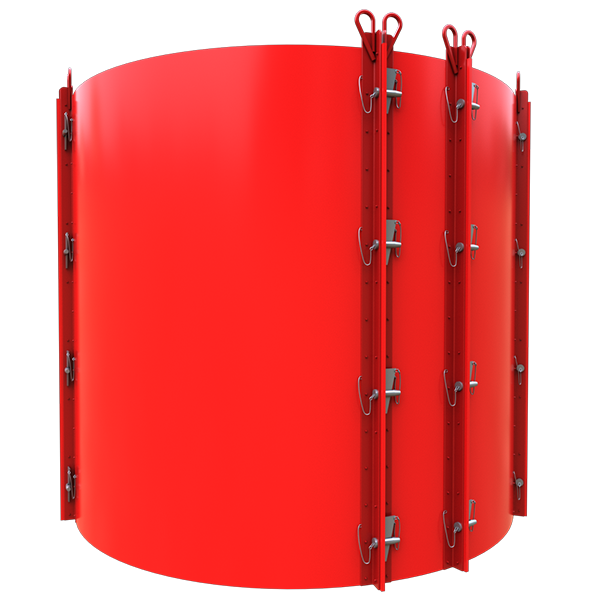

Manhole Shutter 1

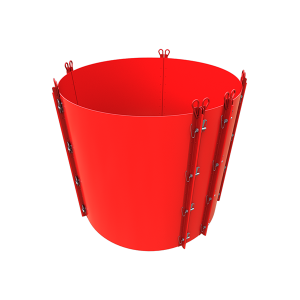

Manhole Shutter 2

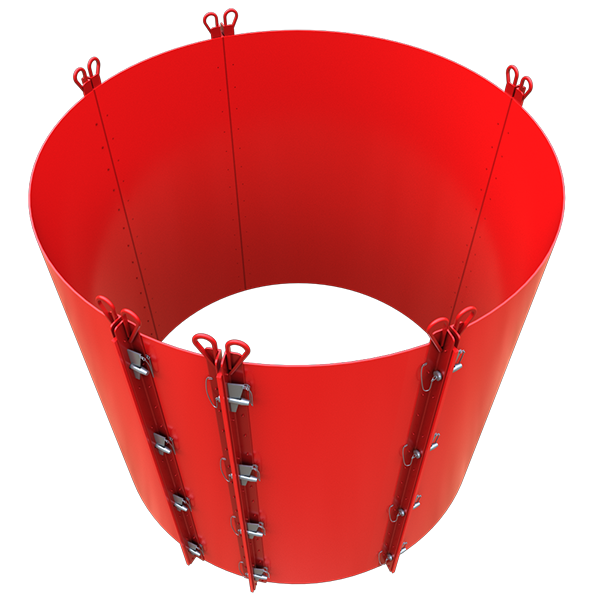

Manhole Shutter 3
Manhole Shutter 1
Manhole Shutter 2
Manhole Shutter 3

Manhole Shutters

Pre-formed steel manhole shutters ideal for use when forming a nominal concrete surround for manholes and the simple pin and wedge system allows for rapid assembling.
  • 3 panel sizes combine for manhole ring nominal diameters of 675mm to 2700mm
  • Panel heights of 1800mm available
*3000mm configuration requires additional ratchet strap supports, please contact MGF for guidance
Manhole Ring Internal Diameter (mm
675
900
1050
1200
1350
1500
1800
2100
2400
2700
*3000
Thickness of manhole ring (mm)
65
75
85
100
112
115
115
120
135
150
180
Panel Combination for Nominal 150mm Concrete Surround (A)
1
2
3
3
3
4
4
3
6
6
7
Panel Combination for Nominal 150mm Concrete Surround (B)
3
1
0
1
2
0
2
5
0
2
1
Panel Combination for Nominal 150mm Concrete Surround (C)
0
2
1
1
0
1
0
2
1
0
1
External diameter of concrete (mm)
1095
1362
1547
1751
1859
2031
2343
2661
2998
3310
3686
Theoretical thickness of concrete (mm)
145
156
164
176
143
151
157
161
163
143
163
Concrete Volume 1800H (m³)
0.78
1.06
1.28
1.56
1.38
1.60
1.94
2.26
2.63
2.56
3.25
Description
A Panel
B Panel
C Panel
Panel Length (mm)
1520
640
300
Weight (kg)
81
43
29
