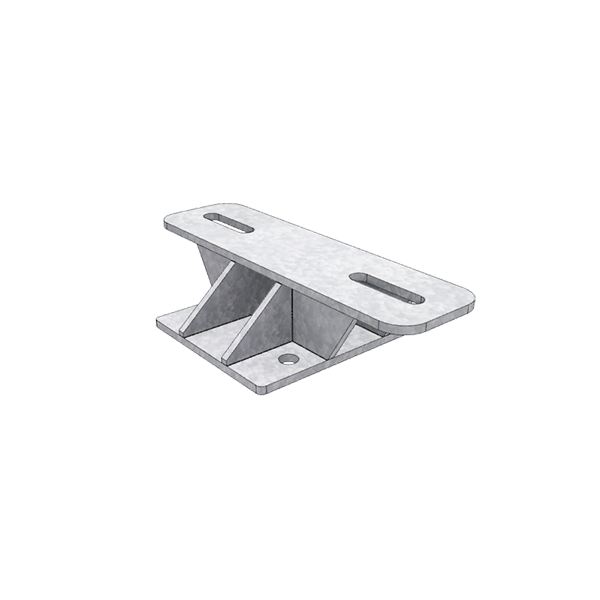

Light Duty Needle Beam Connector

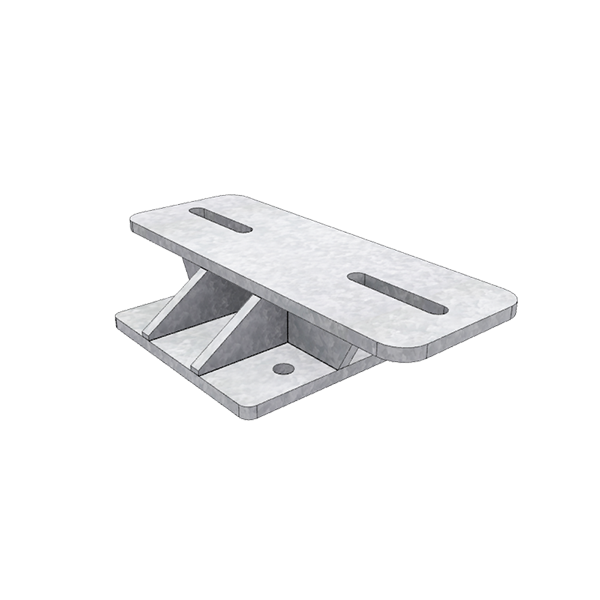

Medium Duty Needle Beam Connector

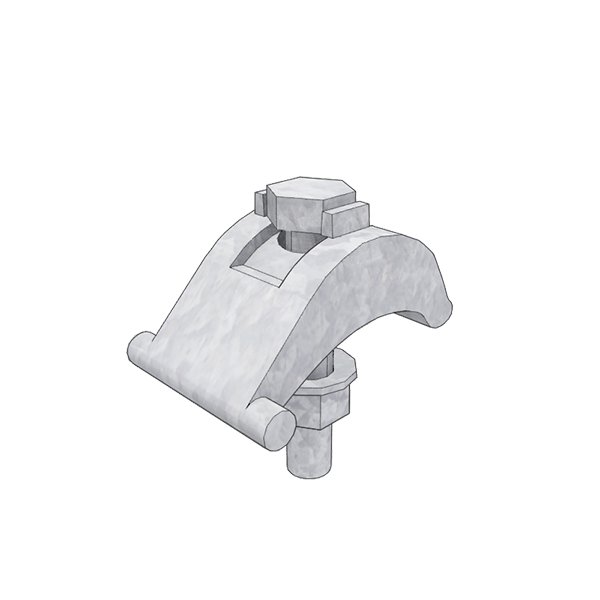

Needle and Grillage Beam Clamp

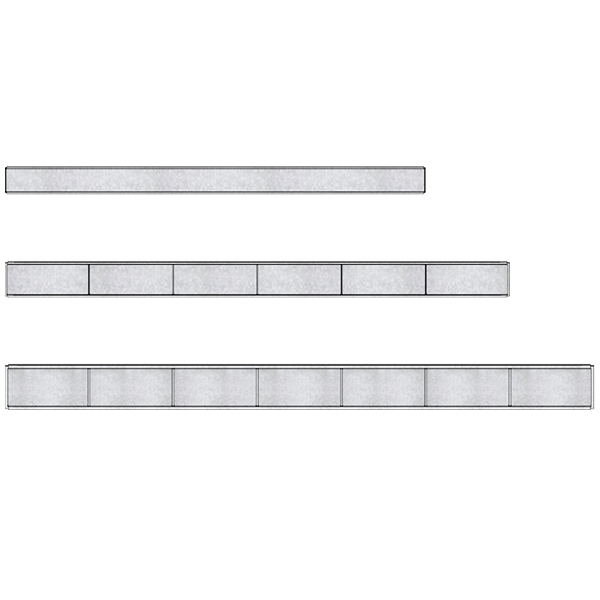

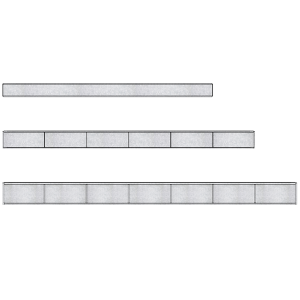

Needle and Grillage Beams

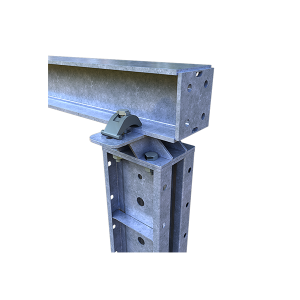

UniShore® Needle & Grillage Beams

MGF provide a range of UniShore® Needle & Grillage Beams sections and connectors are available for the Light and Medium systems.
  • 3 beam sizes available to suit loading requirements
  • 203 & 254 beams drilled for direct fixing to UniShore end details
  • Selection of lengths available to suit working space requirements
  • Non standard grillage beams can be fabricated on request
152UC37, 203UC60 and 254UC107 beams are available.
Description
B152-2000
B152-2500
B203-2500
B203-3000
B254-2500
B254-3500
LNBC
MNBC
BC1
Section Designation
152 x 152 x 37
152 x 152 x 37
203 x 203 x 60
203 x 203 x 60
254 x 254 x 107
254 x 254 x 107
Light Duty Needle Beam Connector
Medium Duty Needle Beam Connector
Needle/Grillage Beam Clamp
Length (mm)
2000
2500
2500
2500
3000
3500
-
-
-
Weight (kg)
80
98
170
205
315
435
6.7
15.1
0.22
