Piling Hammer

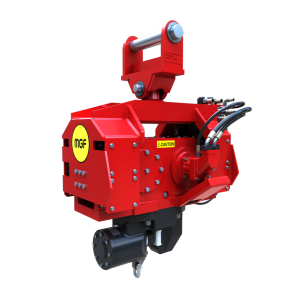

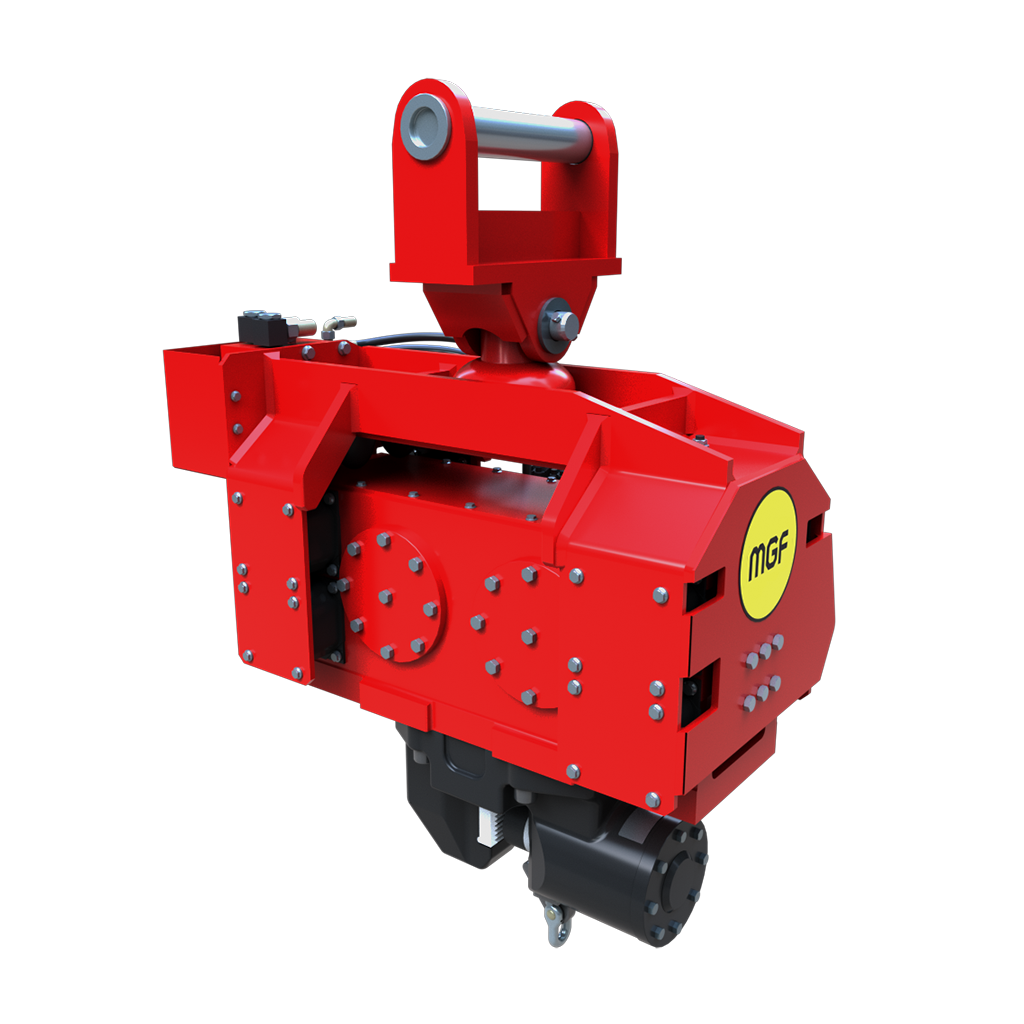

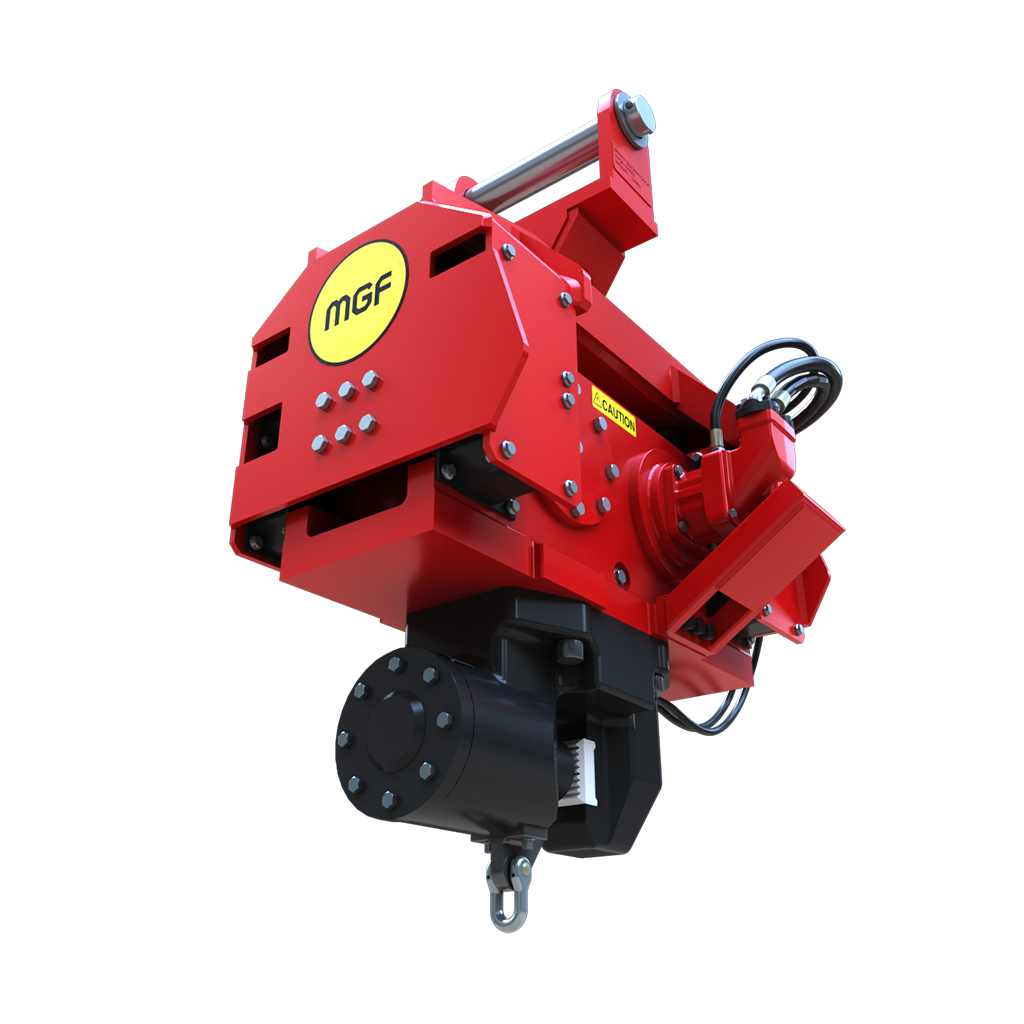

A piling and extraction attachment for the easy and cost-effective installation of trench sheets and sheet piles. EMVs reduce the cohesion of soils through vibrations which effectively fluidises the soil.

Extremely low height of the piling hammer allows driving of long piles
Fitted with a safety circuit
High push/pull force for increased driving performance
Clamps can be rotated 90° to allow face working

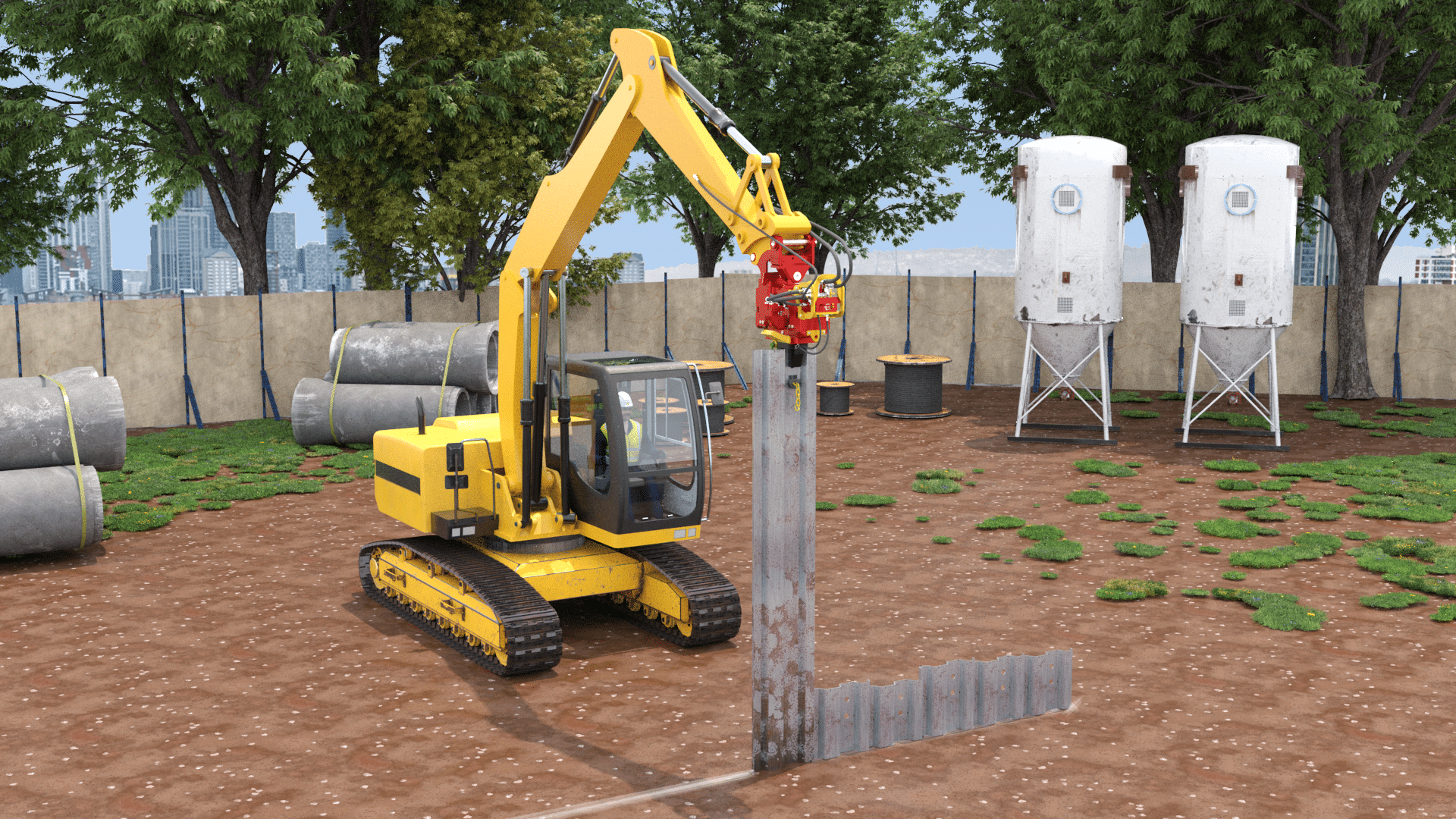

The Piling Hammer can easily be attached to an excavator, directly to the boom or via a quick hitch adaptor. The MS1 unit is smaller and lighter than our MS3 and MS4 units, reducing headroom needed for installing sheets.

Chain Thickness (mm)

Chain Hook

EWL (m)

Chain Shortener

Clear

Type

Centrifugal Force

Eccentric Moment

Frequency

Speed

Pulling Force

Push Down

Max. Power at Vibrator

Total Weight (Including clamping device)

Dyn. Weight (Including clamping device)

Amplitude

Oil Flow

Length

Width

Height (Including clamping device)

Width at Throat

Standard Clamping Device

Recommended Power Pack

Unit

max. kN

max. kgm

max. Hz

max. rpm

max. kN

max.l/min

L mm

B mm

H mm

T mm

MS-1 HFB

0.7

3360

350

230

6.1

102

722

472

538

230

MS-U 12

N/A

MS-3 HFB

296

3.0

3000

830

585

10.3

120

1153

623

1175

260

MS-U 40

MS-A 110V

MS-4 HFB

374

4.2

47.5

2850

120

100

1230

940

8.9

171

1216

725

1250

340

MS-U 60

MS-A 110V

You must be logged in to download files.

Login

Register
