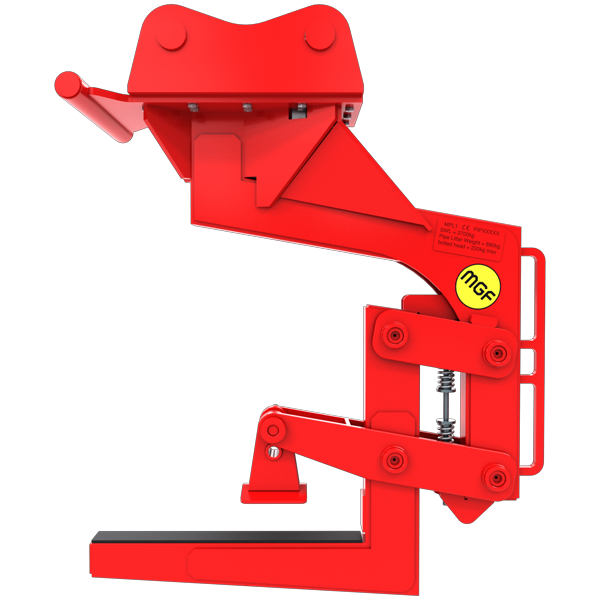

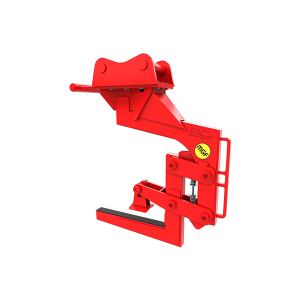

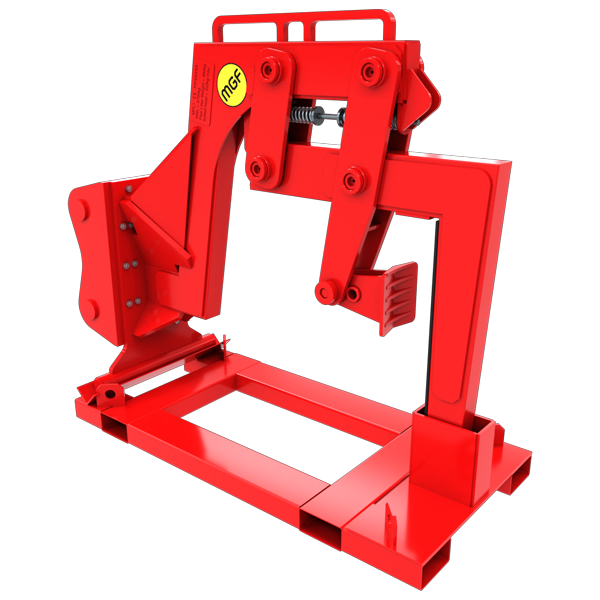

Pipe Lifter

Pipe Lifter

An excavator quick hitch attachment, ideal for the safe and rapid handling and laying of concrete pipes ranging from 0.3m to 1.2m nominal diameter.
  • 30º tilt for guiding pipes into position
  • Avoids need for ground workers in the trench during pipe installation
  • Avoids need to access wagon bed during unloading
Safe Working Load (kg)
3700
Pipe Nominal Diameter (mm)
300 – 1200
Max Pipe Length (mm)
2600
Pipe Lifter Weight (kg)
680
Height (mm)
1600
Length (mm)
1530
