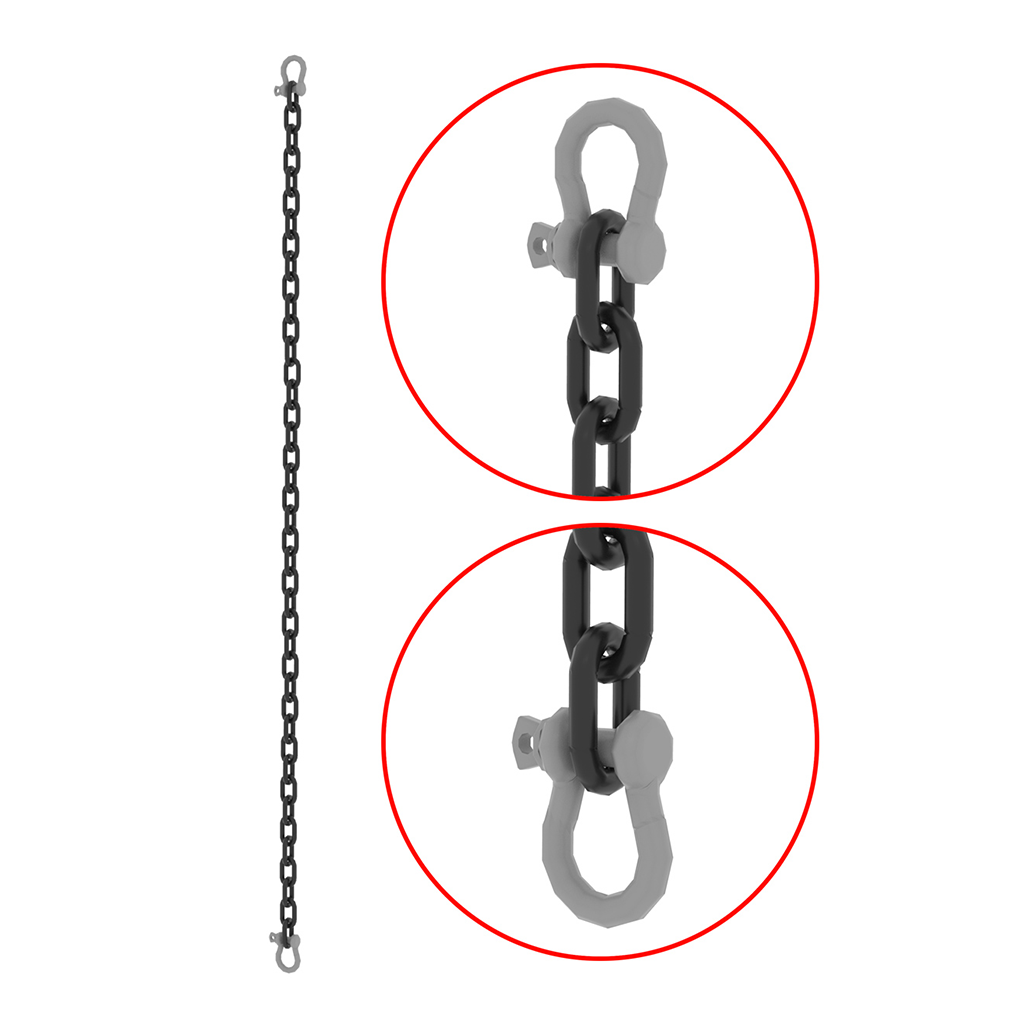

view 2Heavy Duty Restraining Chains

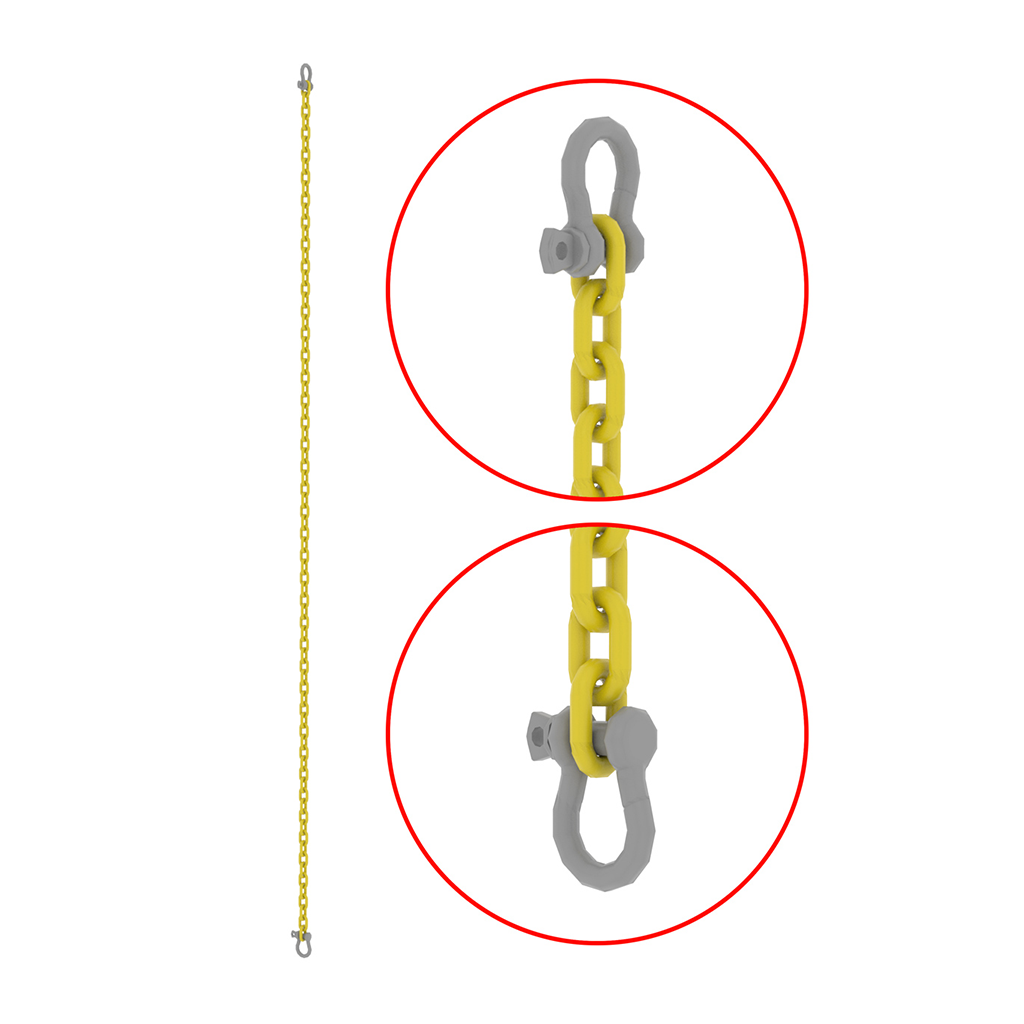

Standard Duty Restraining Chains view 2

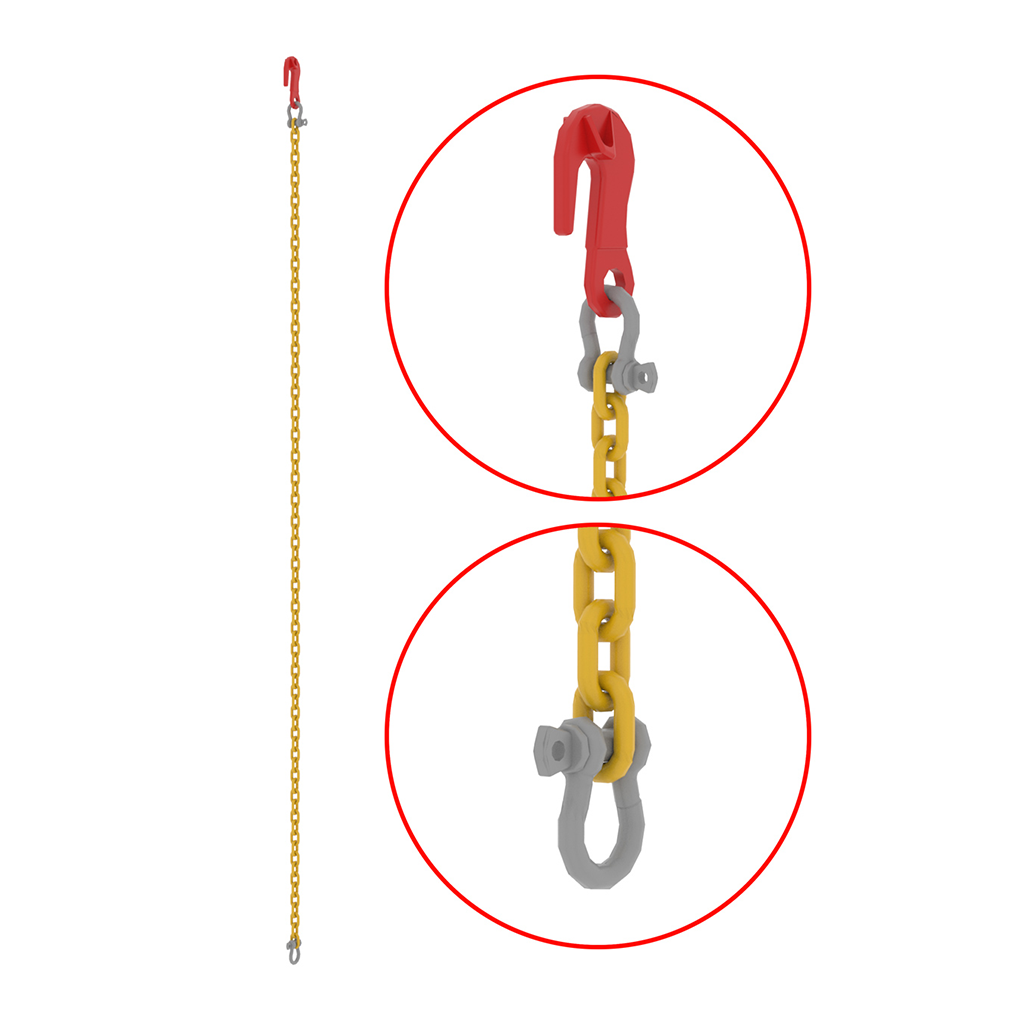

Standard Duty Restraining Chains

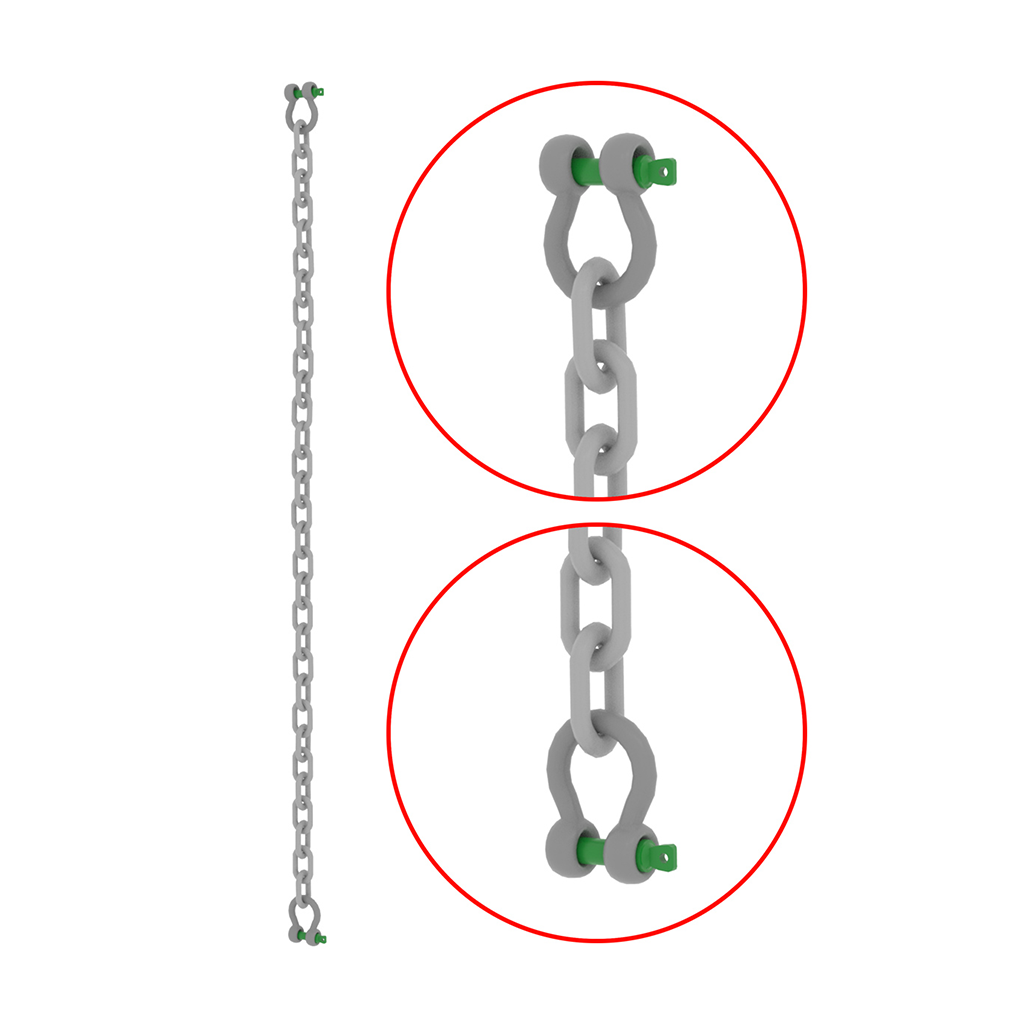

Utiltiy Restraining Chains view 2

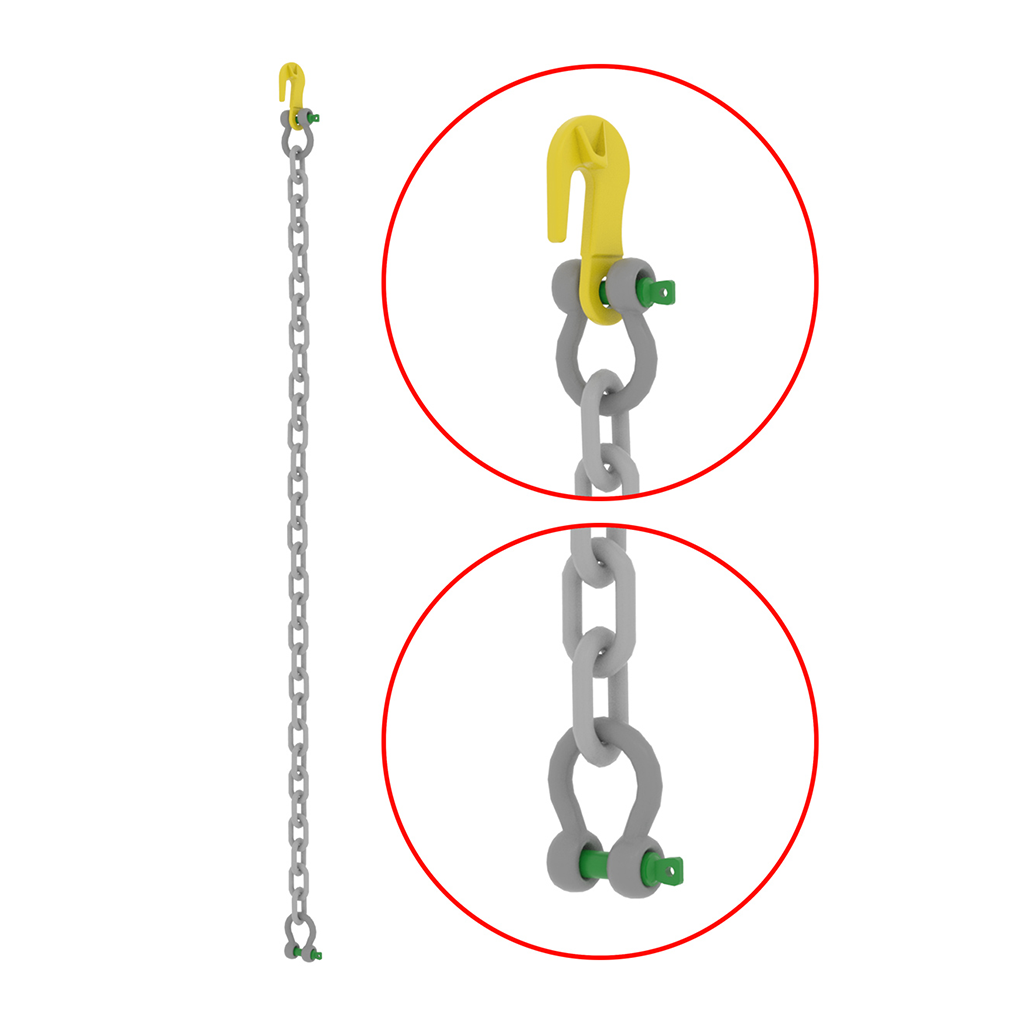

Utiltiy Restraining Chains

Restraining Chains

Our Restraining Chains are designed to provide short term vertical support (via trench sheets or sheet piles) to waler and brace systems assisting the installation/removal process.

Available as hook to shackle (for top frames) and shackle to shackle (lower frames)
Chains can be connected together for additional length

Description

Standard Duty - Hook Type

Standard Duty - Shackle Type

Heavy Duty - Hook Type

Heavy Duty - Shackle Type

Lightweight Restraining Chain (hook)

Lightweight Restraining Chain (shackle)

Length (mm)

2500

2500

2500

2500

1200

1200

Weight (kg)

9

9

14

14

2.0

1.75

SWL (t)

2

2

3.15

3.15

0.47

0.47
