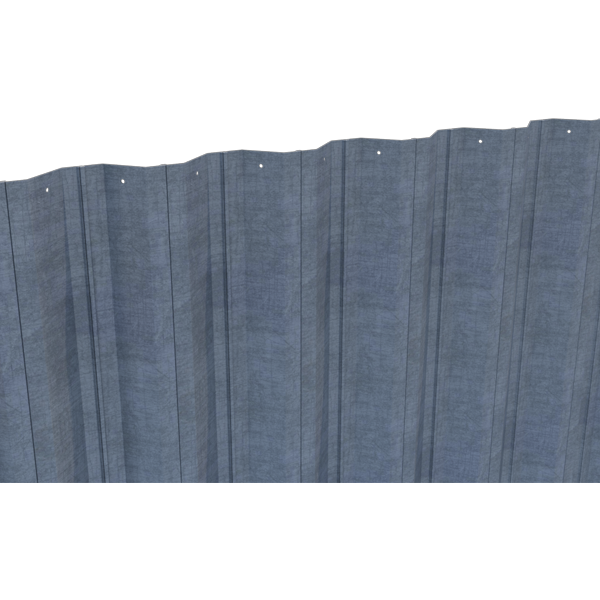

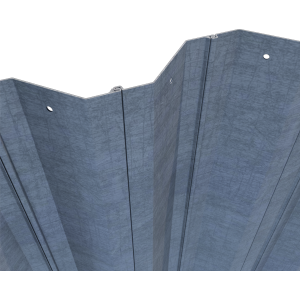

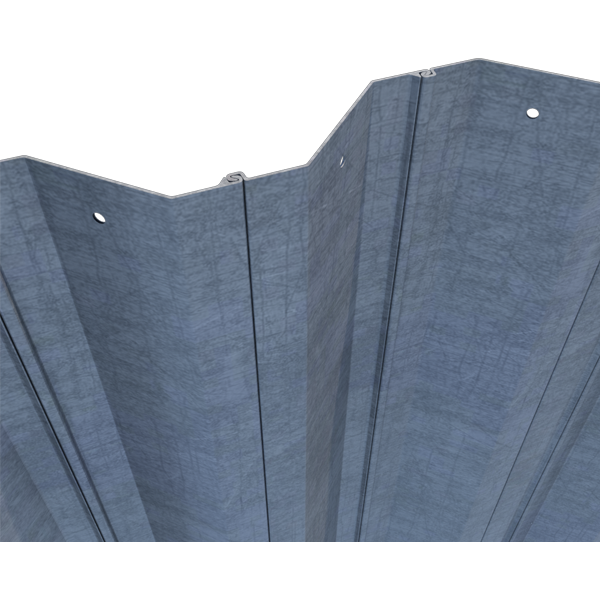

Sheet Piles – AZ12-770

Sheet Piles – AZ12-770

Z-type sheet piles are the preferred choice for permanent applications. Among the essential characteristics of Z-shaped sheet piles are the continuous form of the web and the specific location of the interlock symmetrically on both sides of the neutral axis. These two attributes have a positive influence on the section modulus. The AZ® series combine a section with extraordinary characteristics with the quality-proven Larssen interlock.

Good corrosion resistance, the steel being thickest at the critical corrosion points
Lighter than GU/PU piles when comparing sections with equivalent properties
Large width resulting in high installation performance and enhanced watertightness
Extremely competitive section modulus/mass relation

Can be supplied and installed as single 700mm wide piles or as double 1400mm wide piles. Sale Item Only. Buy back offer available.

Trench Box

Clear

Profile

AZ12-770

W (mm)

770

H (mm)

344

T (mm)

8.5

S (mm)

8.5

Weight (kg/m)

72.6

Weight (kg/m²)

94.0

Moment of Inertia (cm⁴/m)

21 430

Elastic Section Modulus (cm³/m)

1 245

Plastic Section Modulus (cm³/m)

1 480

Coating Area* (m²/m)

1.2

Per S

Per D

Per m of wall

A cm²

92.5

185.0

120.1

G kg/m

72.6

145.2

94.3

Iy cm⁴

16 500

33 000

21 430

Wel,y cm³

960

1 920

1 245

rg cm

13.36

AL m2/m

0.93

1.85

1.20

Test

Wel,y

Test

Sectional Area

Mass per m

Moment of inertia about the main neutral axis y-y

Elastic section modulus

Radius of gyration about the y-y axis

Coating area. One side, excludes inside of interlocks

Single pile

Double pile
