Stairsafe

Stairsafe

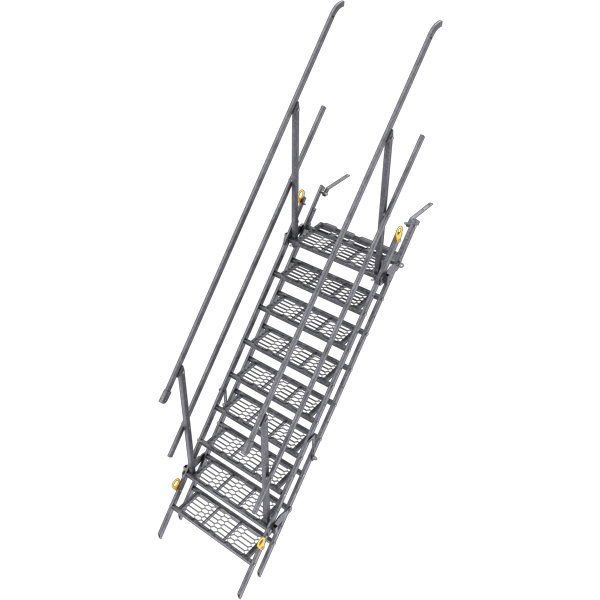

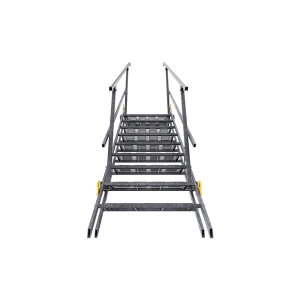

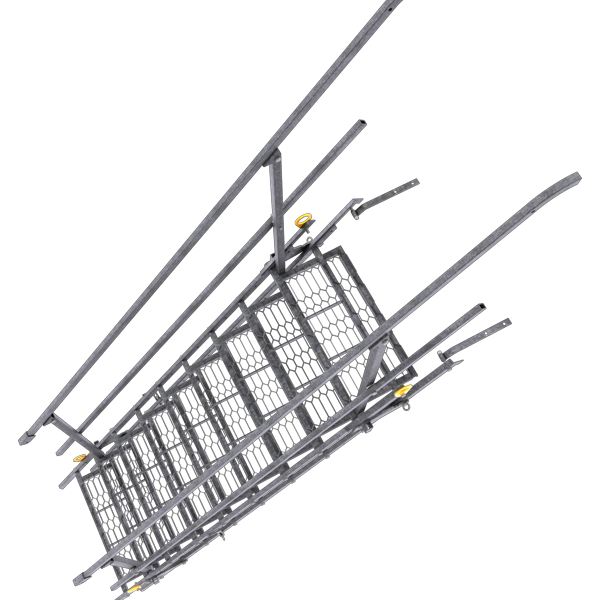

A lightweight, modular, galvanised steel stair system available in 3, 9, 12 & 18 step sections, that can easily connect together to allow heights from 500mm up to 7700mm.
  • Angular range of 30-50° with self adjusting steps
  • Compatible with MGF Laddersafe & Wall Bridge range
  • Compatible with a range of Trench Sheets & Sheet Piles
  • System can be flat-packed for storage / transport

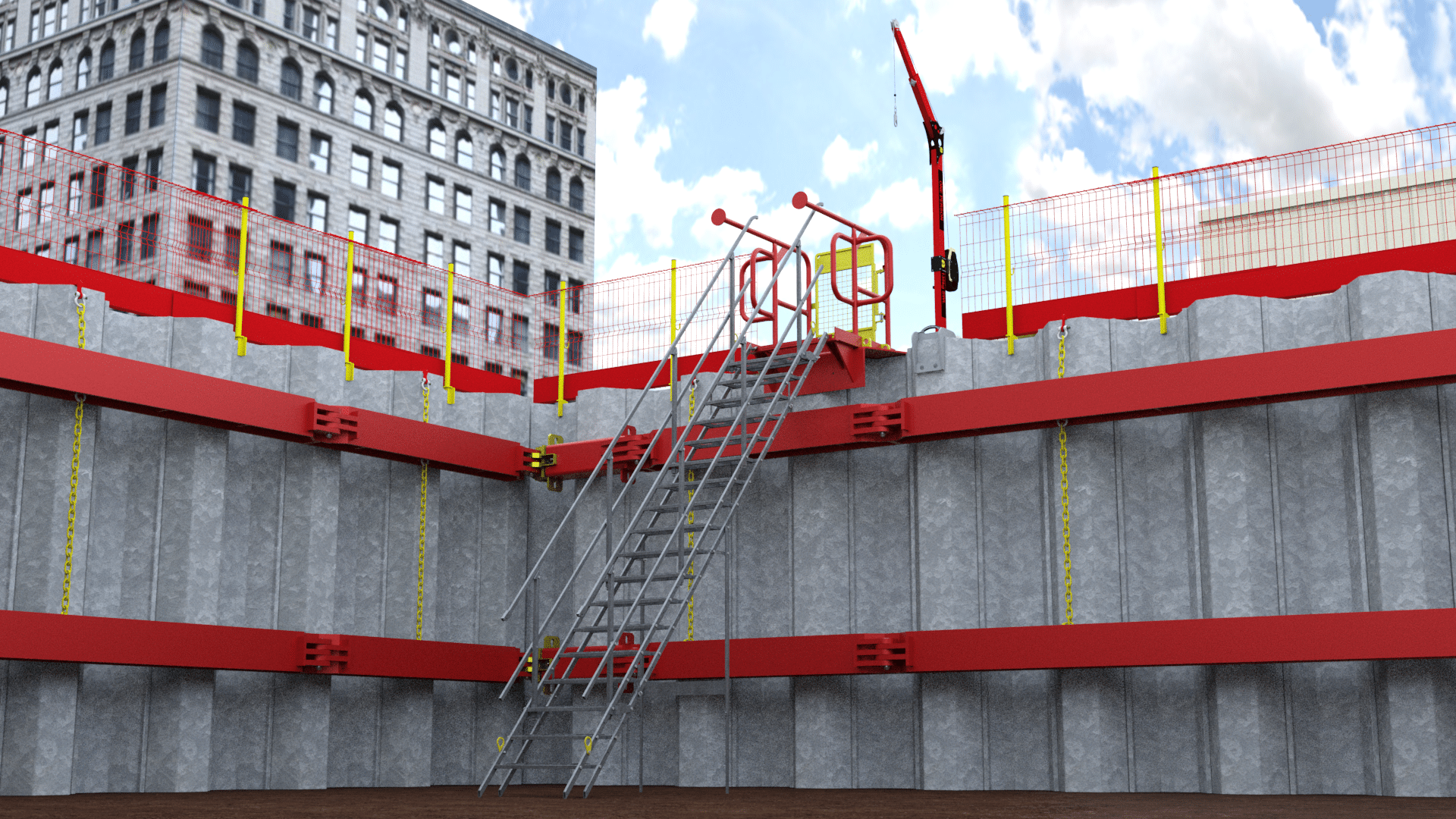

Stairsafe connects to a compatible MGF Type 3 Laddersafe system, allowing Stairs to be installed on Sheet Piles and 100mm+ thick box panels. Stairsafe assemblies of 24 steps and above require additional beam support sections.
Total Steps
3
6
9
12
18
21
27
36
Weight (kg)
45
90
95
140
185
230
280
370
Height Formation to Platform (min - max) (mm)
500 - 750
1000 - 1500
1500 - 1900
1900 - 2700
2700 - 3800
3800 - 4600
4600 - 5800
5800 - 7700

3 Step Stairs
9 Step Stairs
12 Step Stairs
18 Step Stairs
Beam Support - End Section
Beam Support - Middle Section
Weight
45
95
112
185
132
93
