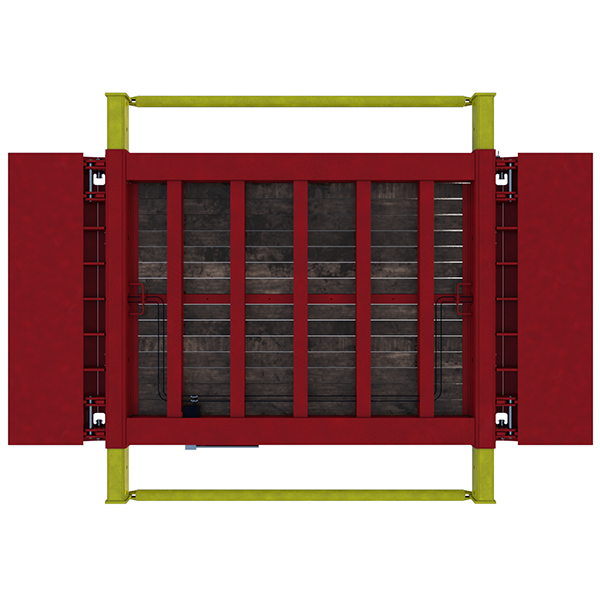

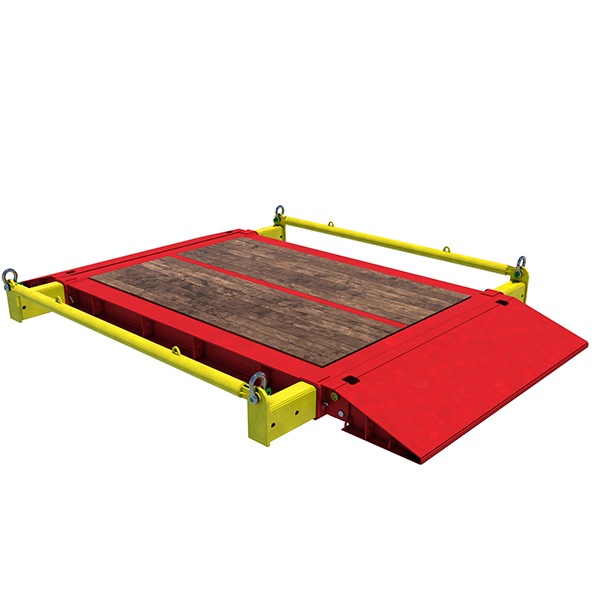

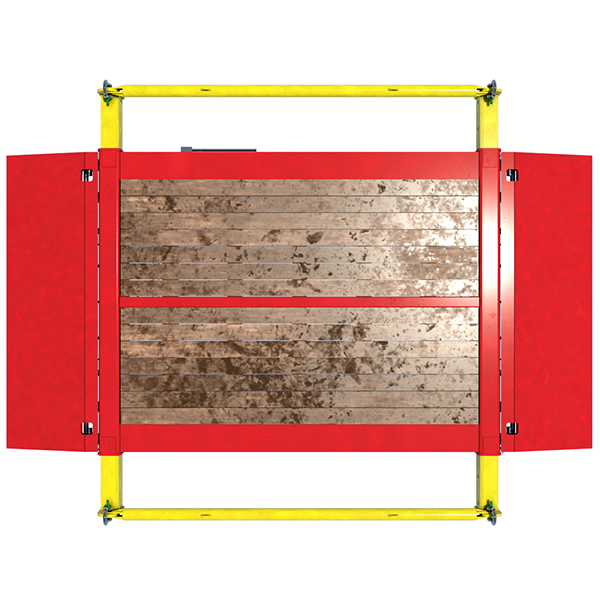

T33 Lifting Tray

T33 Lifting Tray

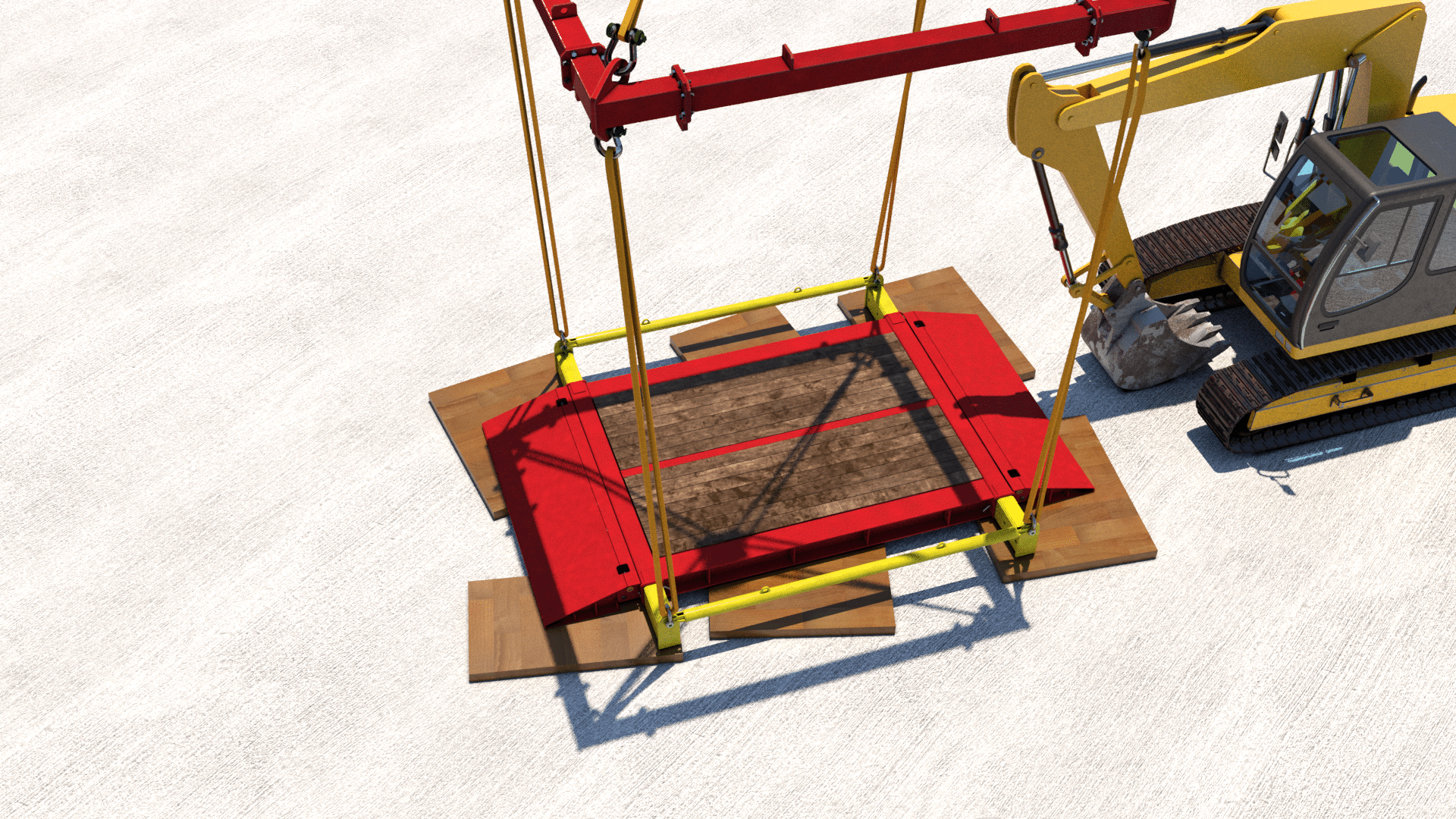

The T33 Lifting Tray has been designed specifically to safely lift excavators or heavy machinery, up to a maximum weight of 33t, in and out of excavations and shafts. Ideal for use on major projects, or any projects that require a crane to handle plant and heavy machinery.
  • Adjustable, telescopic arms increase effective width from 2.88m to 3.88m
  • Tray is 3.7m long with the ramps giving an additional 0.9m length each end for a total max. length of 5.5m

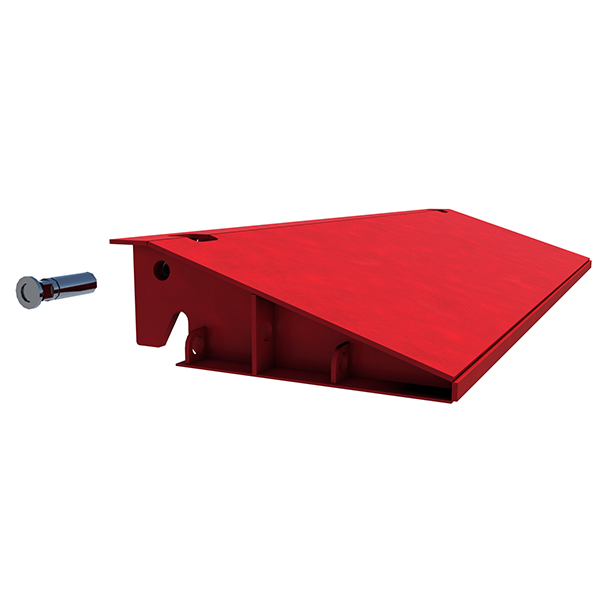

  • Features 2 removable ramps, which attach to the tray with a simple pinned connection
  • Available with a range of endless round fabric slings

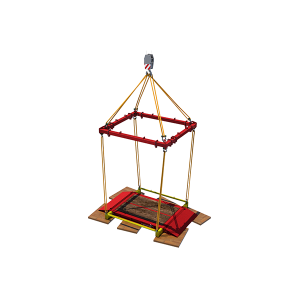

This tray is compatible with MGF’s F55 Spreader Frames and S80 Spreader Beams.
Description
Max. Assembled Weight
Lifting Tray Main Tray
Lifting Tray Ramp
Lifting Tray Spreader Arm
13.5t Green Pin Bow Shackle
4.75t Green Pin Bow Shackle
5m 15t Endless Round Sling
3.5m 25t Endless Round Sling
Weight (kg)
3990
2525
625
91
6
4
17
21
