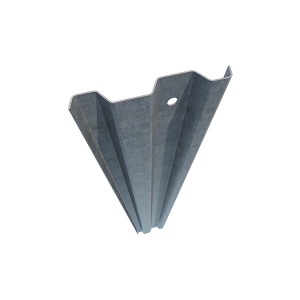

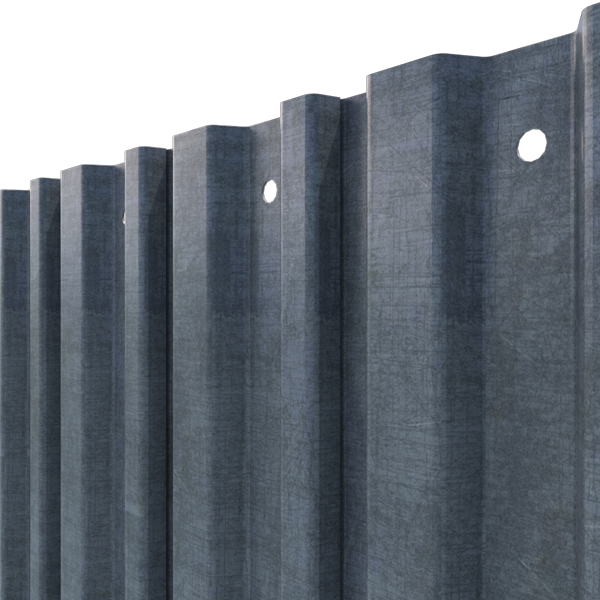

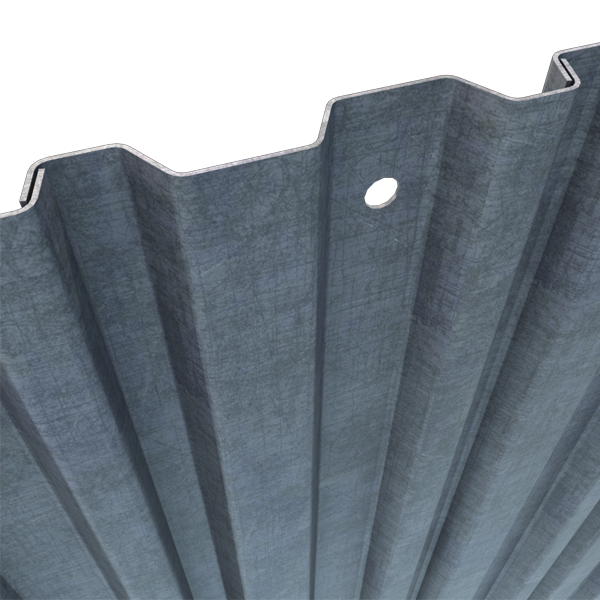

Trench Sheets – KKD 600/8 (S275 JRC)

Trench Sheets – KKD 600/8 (S275 JRC)

Trench sheets provide an effective ground solution to support the vertical faces of small to medium sized trenches and excavations.
  • Galvanising service
  • Available lengths: 4m – 8m
  • Clutch sealing service
Profile
KKD 600/8
Steel Grade
S275
Width (mm)
600
Height (mm)
80
Thickness (mm)
8.0
Weight (kg/m)
50.0
Weight (kg/m²)
83.3
Section Modulus Z (cm³/m)
242.0
Moment Capacity (kNm/m)
48.4
