UniShore® Bracing

Our Product Range / Structural Support / UniShore® Bracing

UniShore® Bracing

UniShore® Bracing systems are available for the UniShore range to suit specific requirements.

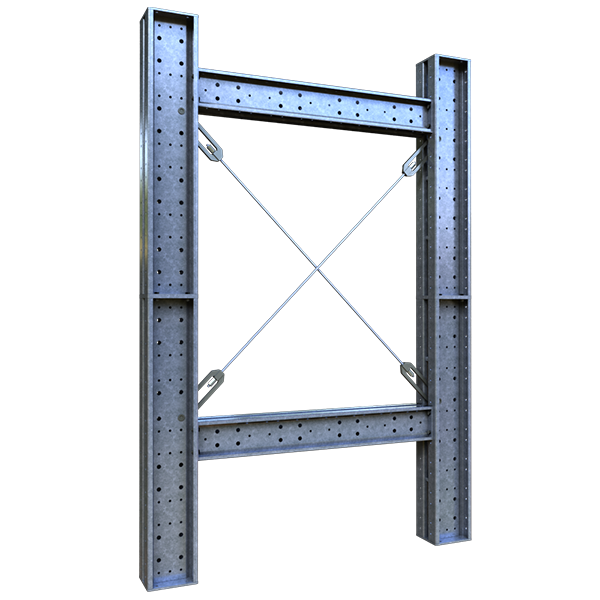

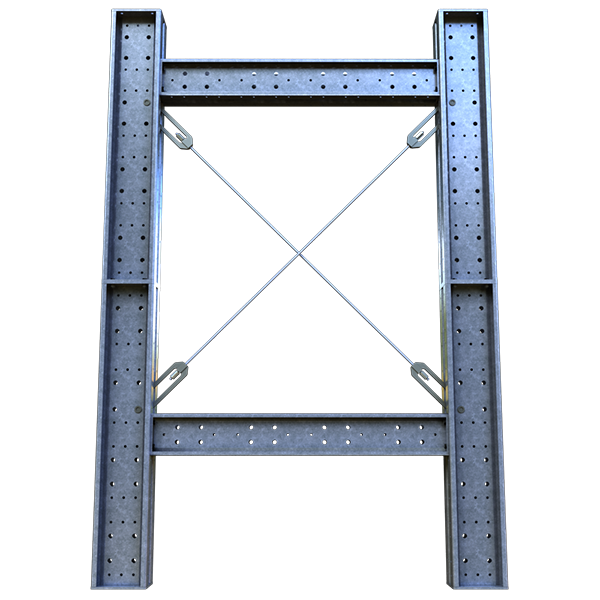

Tension Bracing uses high load Dywidag tie bars and a tension bracket to connect using the CP1 connecting pin into the web of the prop members providing a high load simple to install bracing panel

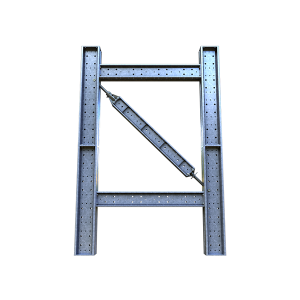

Push Pull Bracing is used where a single push pull type brace is preferred, push pull braces are made from standard light or medium prop components pinned into the prop webs using the CP1 Connecting pin

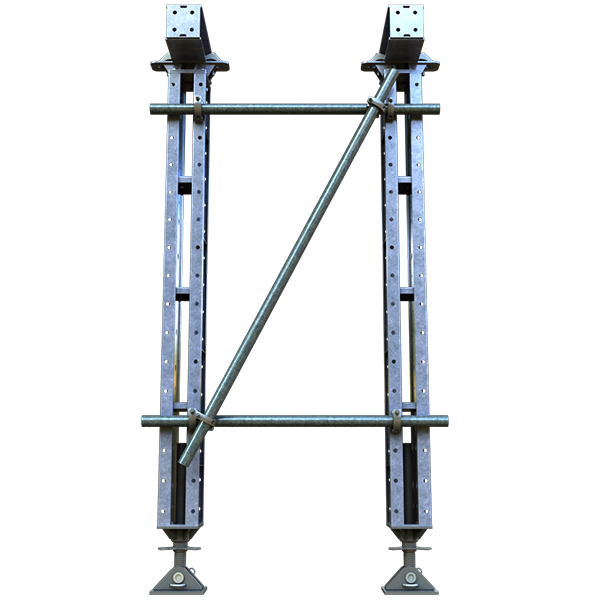

Scaffold Bracing is used with UniShore light or for stability bracing during installation or removal standard scaffold tubes connect to to any of the prop systems using a half coupler (code HC) and can be braced using standard fixed and swivel scaffold couplers

Simple pinned connection
Light and easy to install
High load capacity
Bracing systems compatible across the unishore range

UniShore® Bracing components are common across the range and feature a simple pinned connection into the prop sections.

Description

BTB

BHN

CP1

Component

Tension Bracket

50mm Hex Nut

Bracing Bar

30mm Pin

Weight (kg)

5.10

0.22

1.44/m

0.70
