UniShore® Light

UniShore® Light

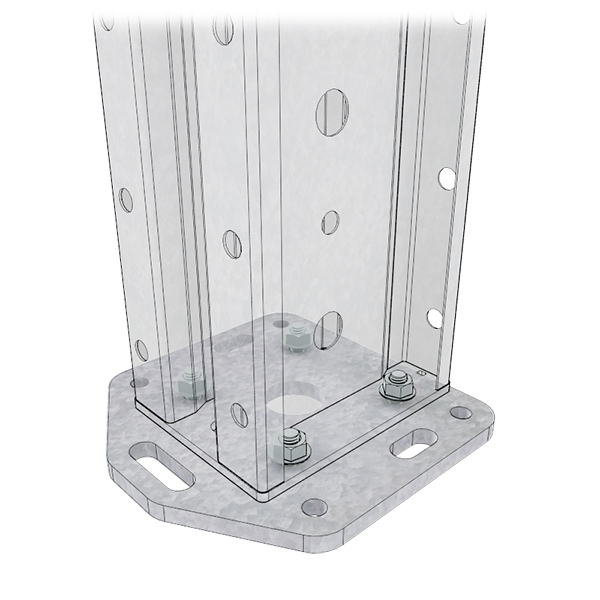

Light Duty Anchor Plate

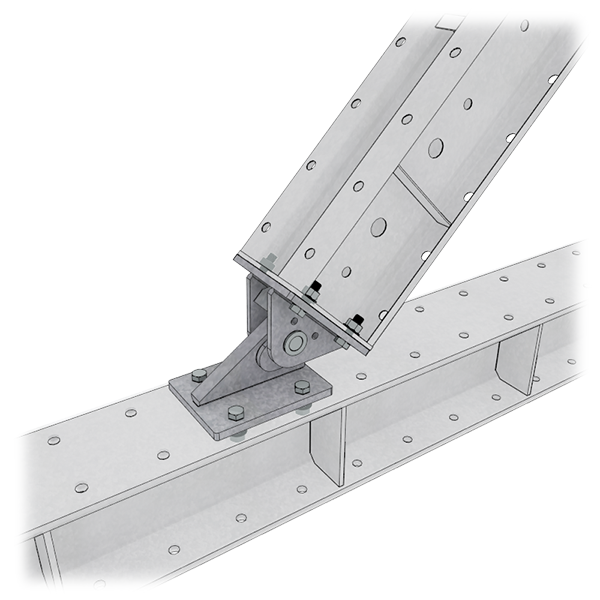

Light Duty Pivot Block

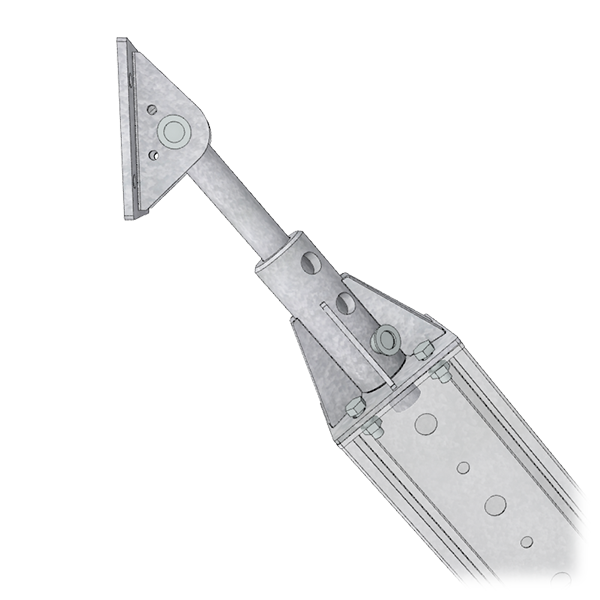

Light Raking Prop Adaptor

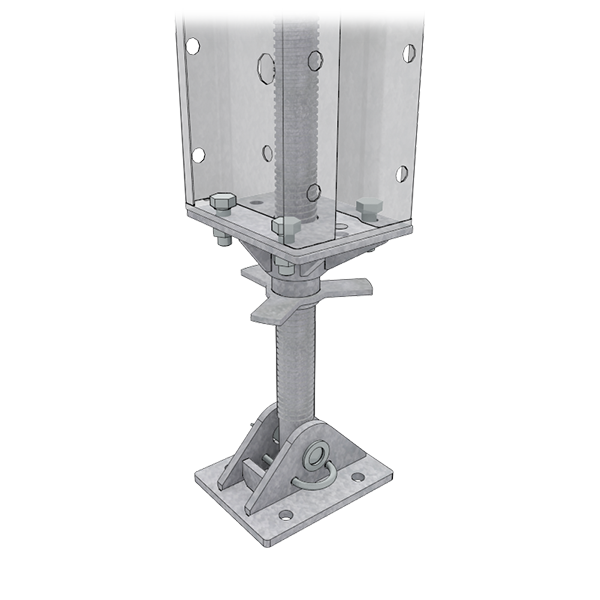

Light Screw Jack and Base Plate
UniShore® Light
Light Duty Anchor Plate
Light Duty Pivot Block
Light Raking Prop Adaptor
Light Screw Jack and Base Plate

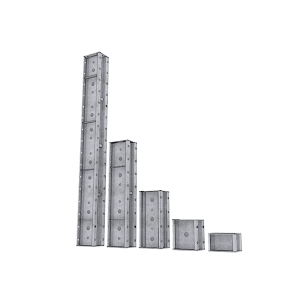

UniShore® Light

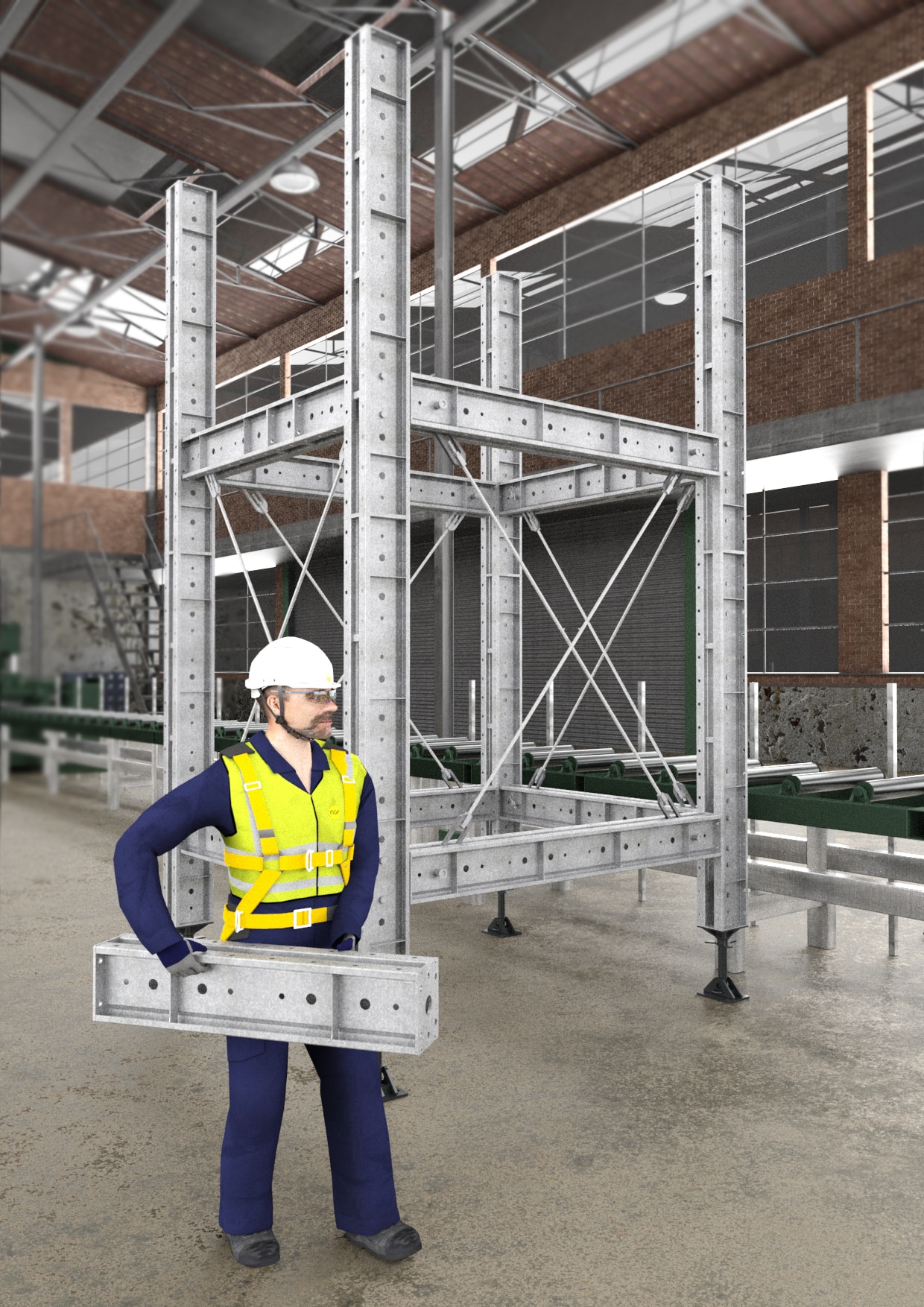

UniShore® Light is a lightweight, modular shoring and propping system that balances the need to minimise component weight, reducing risk where manual handling is unavoidable whilst maintaining robustness and load capacity. Ideal for use in a busy construction environment where there is limited space.
  • Load capacity of up to 20 tonnes
  • section weight 15.2 kg/m
  • Compact 220mm x 170mm section
  • Simple pinned connections
Sections can be bolted directly to UniShore® medium and heavy sections. A range of needle and grillage beams are available.
Product Code
LE0140
LE0250
LE0500
LE1000
LE2000
LSJ
LSJB
LPB
LRPA
LAP
Description
140mm Extension
250mm Extension
500mm Extension
1000mm Extension
2000mm Extension
Light Duty Screw Jack
Light Duty Base Plate
Light Pivot Block
Light Raking Prop Adaptor
Light Anchor Plate
Length (mm)
140
250
500
1000
2000
160 – 560




Weight (kg)
6.10
7.30
10.20
17.20
30.50
15.8
6.2
13.8
15.6
7.4
