Waler and Tie Back Systems

Our Product Range / Excavation Solutions / Trench Sheets, & Sheet Piles / Waler and Tie Back Systems

Waler and Tie Back Systems

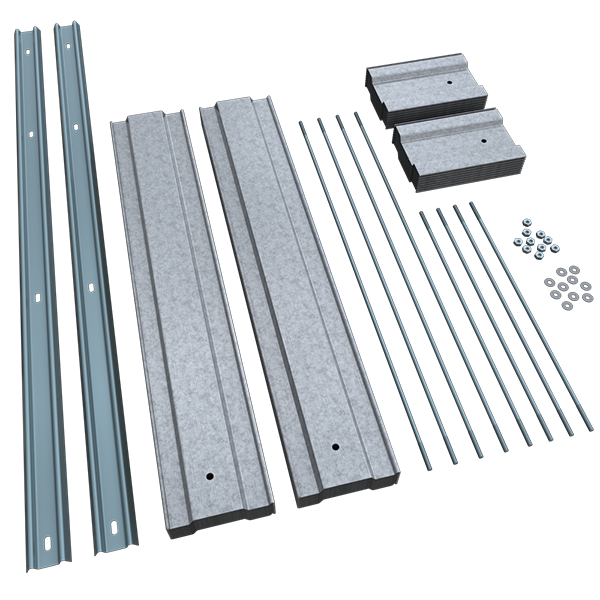

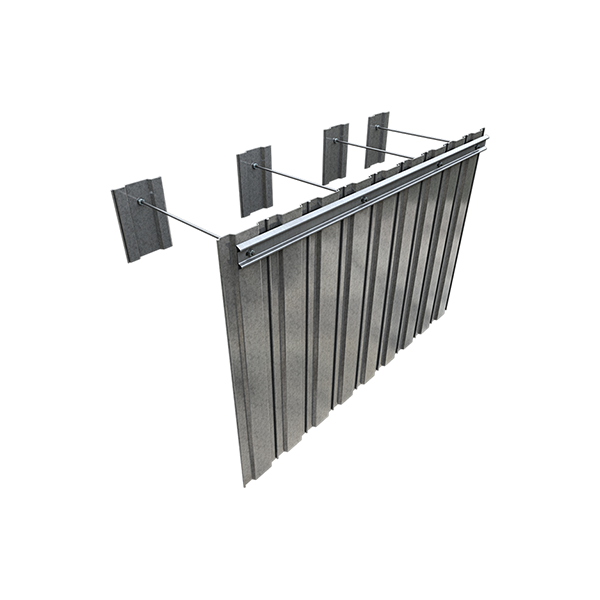

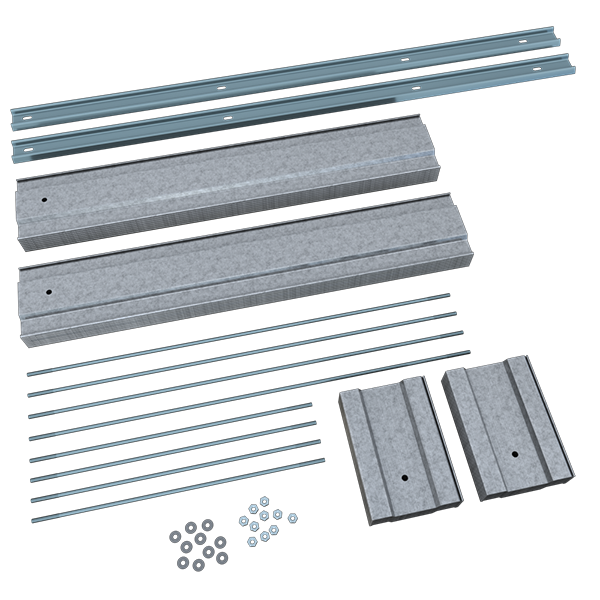

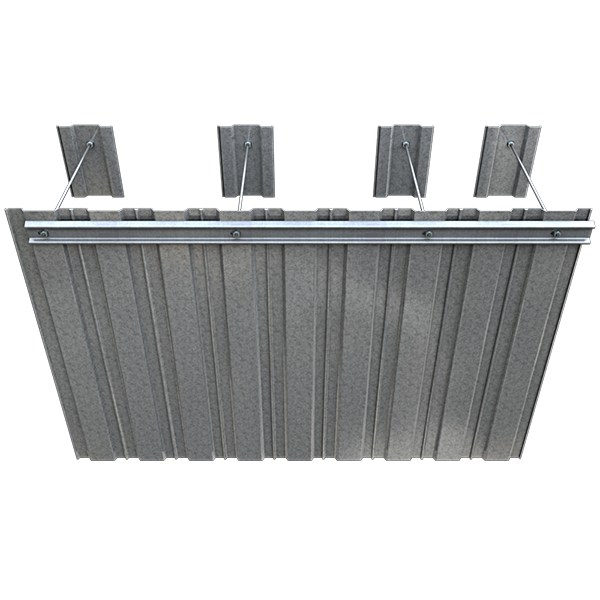

The Waler and Tie Back is an ideal system for bankside protection of canals, rivers and marinas. Supplied as a combination of L8 sheets, waler rails and tie back rods; this system can be used in different configurations depending on the site and ground conditions.

All fixings are supplied and zinc plated as standard, all walers are galvanised as standard
Sheets can be galvanised on request

Item

Interlocking L8 Sheet

Tie Back Waler Rail

Effective Width per Sheet (mm

430

3888

Weight (kg/m)

14.4

5.4

Thickness (mm)

3.5

3.0

Moment of Inertia (cm⁴)

42.8

8.4

Moment of Inertia per metre (cm⁴/m)

98.2

Section Modulus (cm³)

22.8

4.3

Section Modulus per metre (cm³/m)

52.3

Sectional Area (cm²)

18.5

6.8

Steel Grade

S275
