200 Series Strut

Our Product Range / Excavation Solutions / Excavation Support / Bracing Struts / 200 Series Strut

200 Series Strut

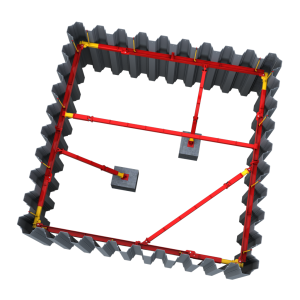

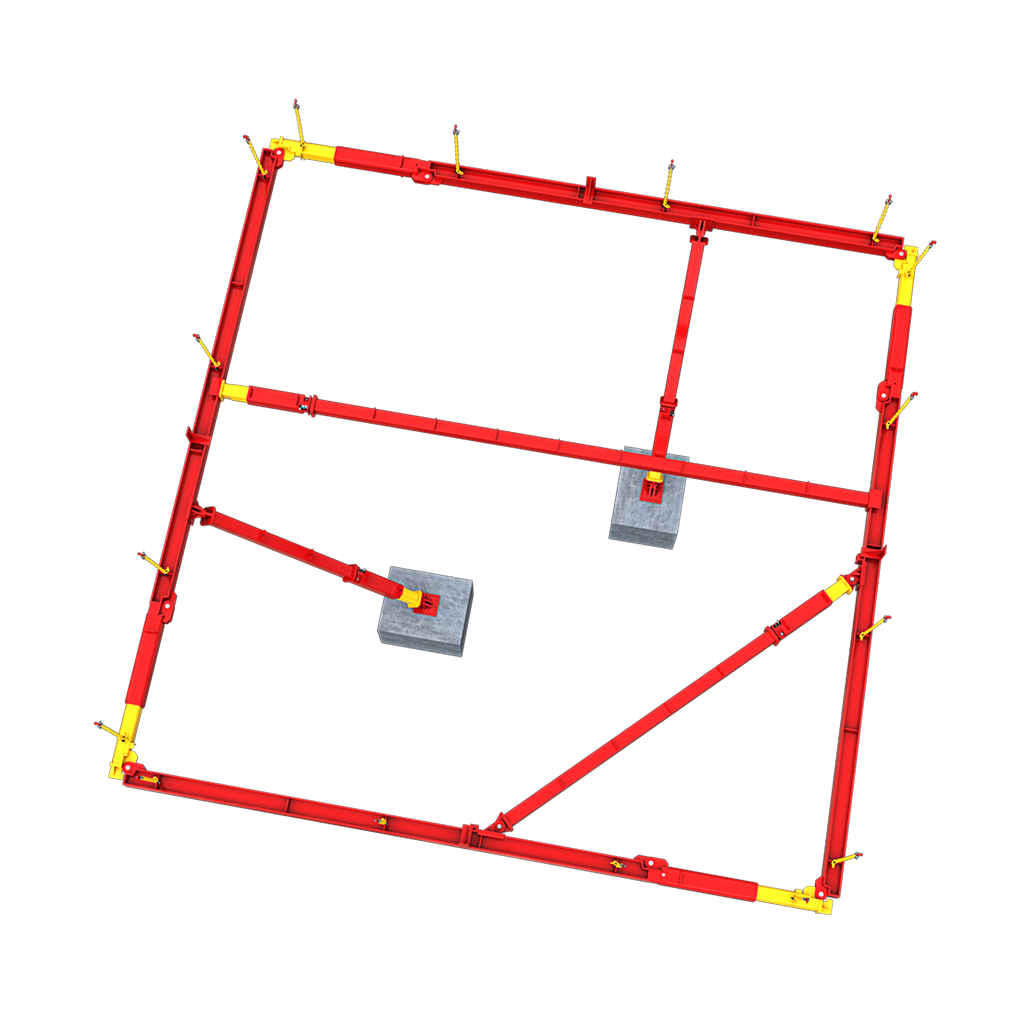

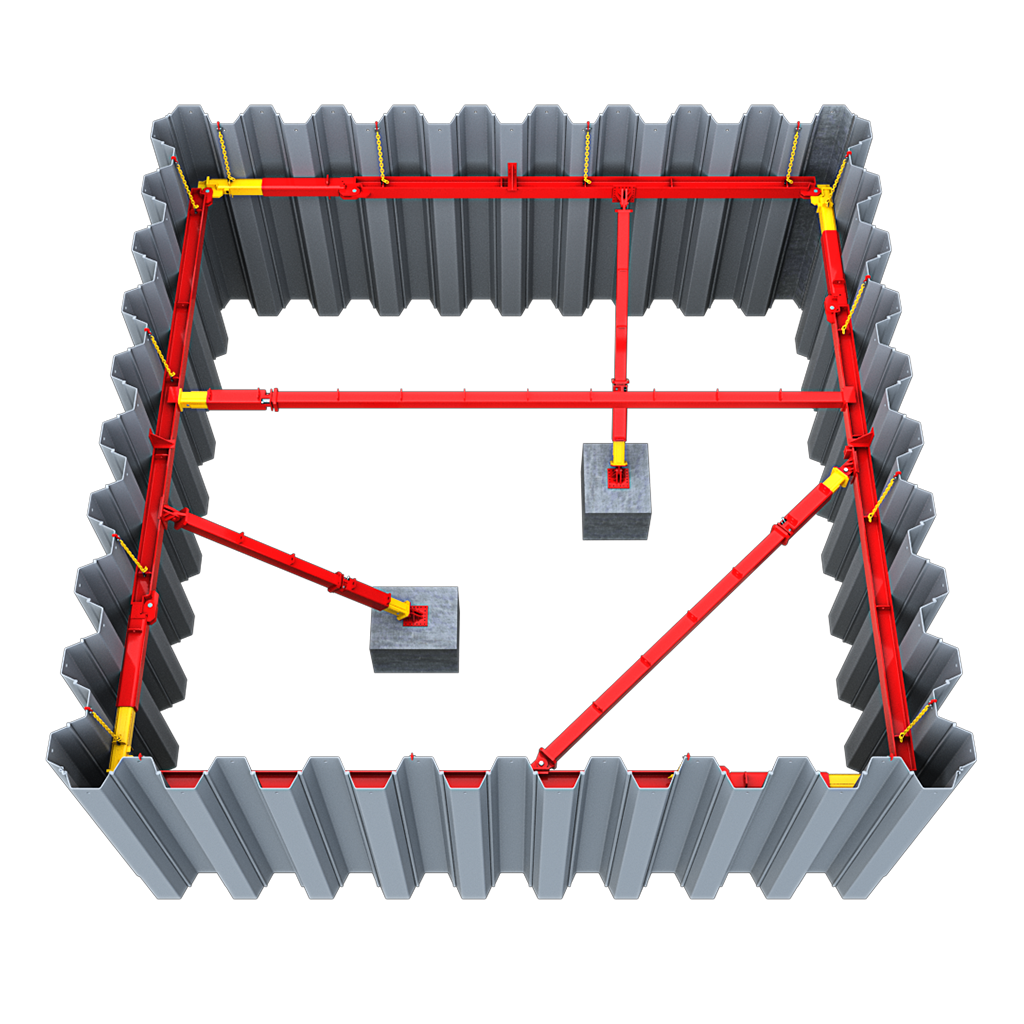

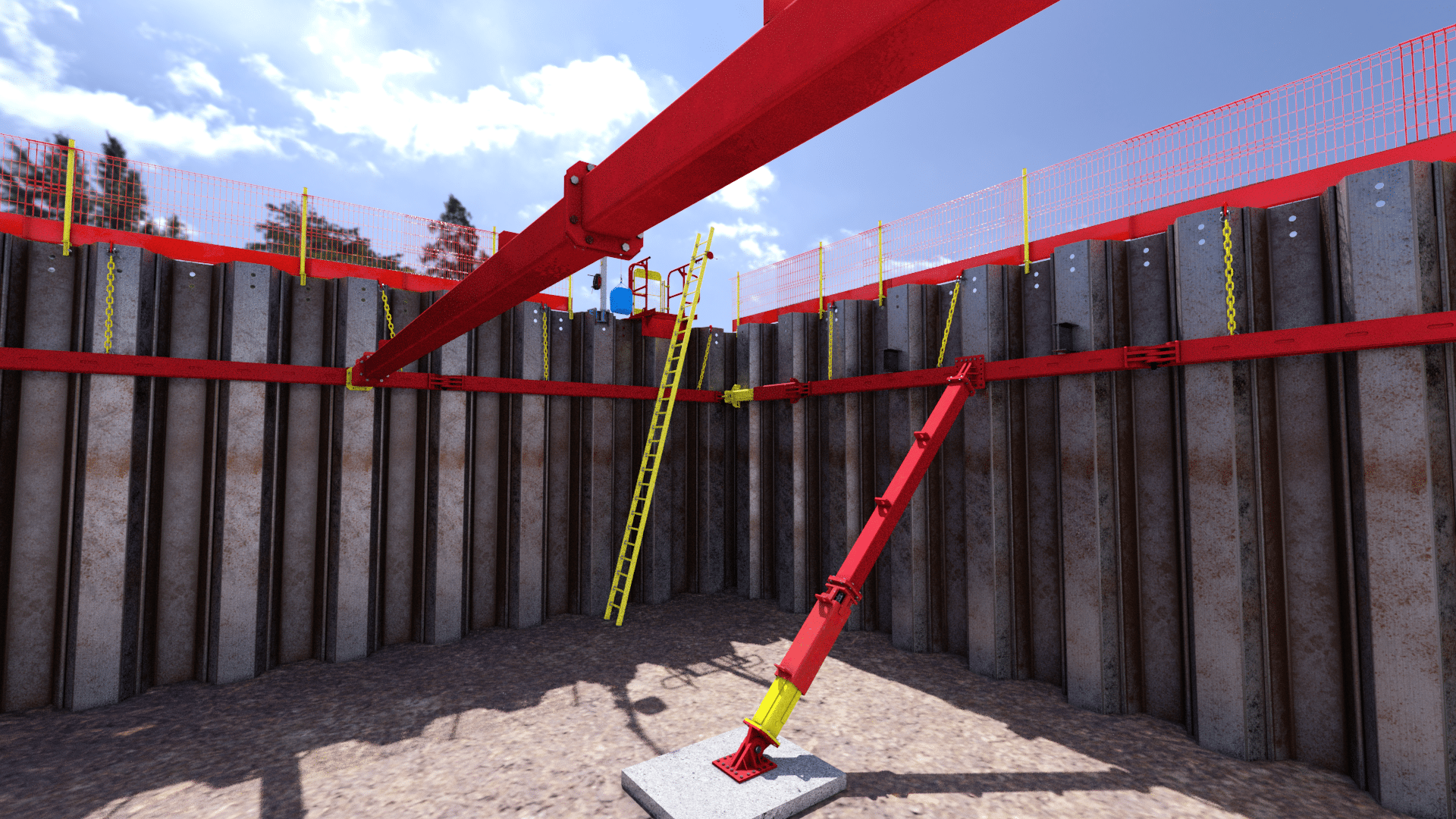

A highly versatile, medium duty strut system primarily for use in conjunction with hydraulic bracing systems.

For use with 600kN double acting hydraulic strut or double acting 250kN hydraulic strut
Compatible with 152 UC Waler, 203 UC, 254 UC and 305 UC and 406 UC Brace systems
Operating range from 0.62m to 10.5m

The complete system can support loads of up to 600kN and span from 0.62m to 10.5m. 305 UC Brace compatibility is limited to cross strut application. 0.25m to 0.5m extension available.

Description

250kN Hydraulic Strut

600kN Hydraulic Strut

200 Series Extension

Length (min - max) (mm)

625 - 925

1150 - 1750

250

500

1000

1500

2000

3000

4000

5000

6000

Weight (kg)

100

375

101

124

173

223

268

316
