406 UC Brace

Our Product Range / Excavation Solutions / Excavation Support / Hydraulic Bracing / 406 UC Brace

406 UC Brace

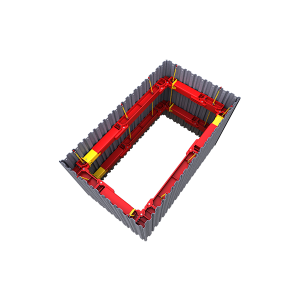

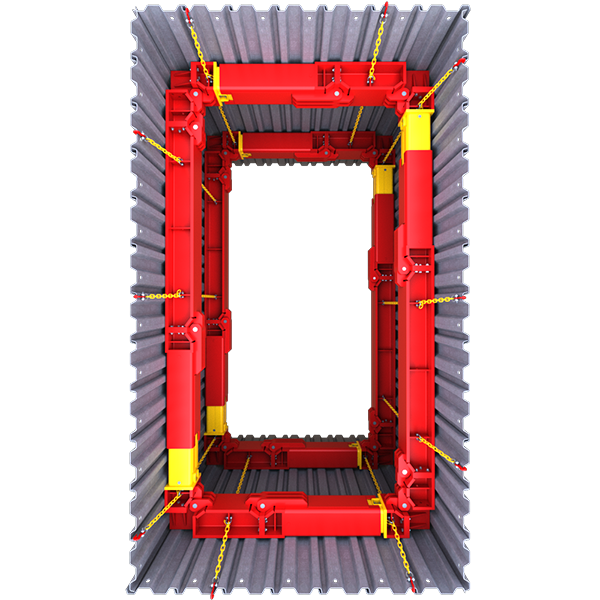

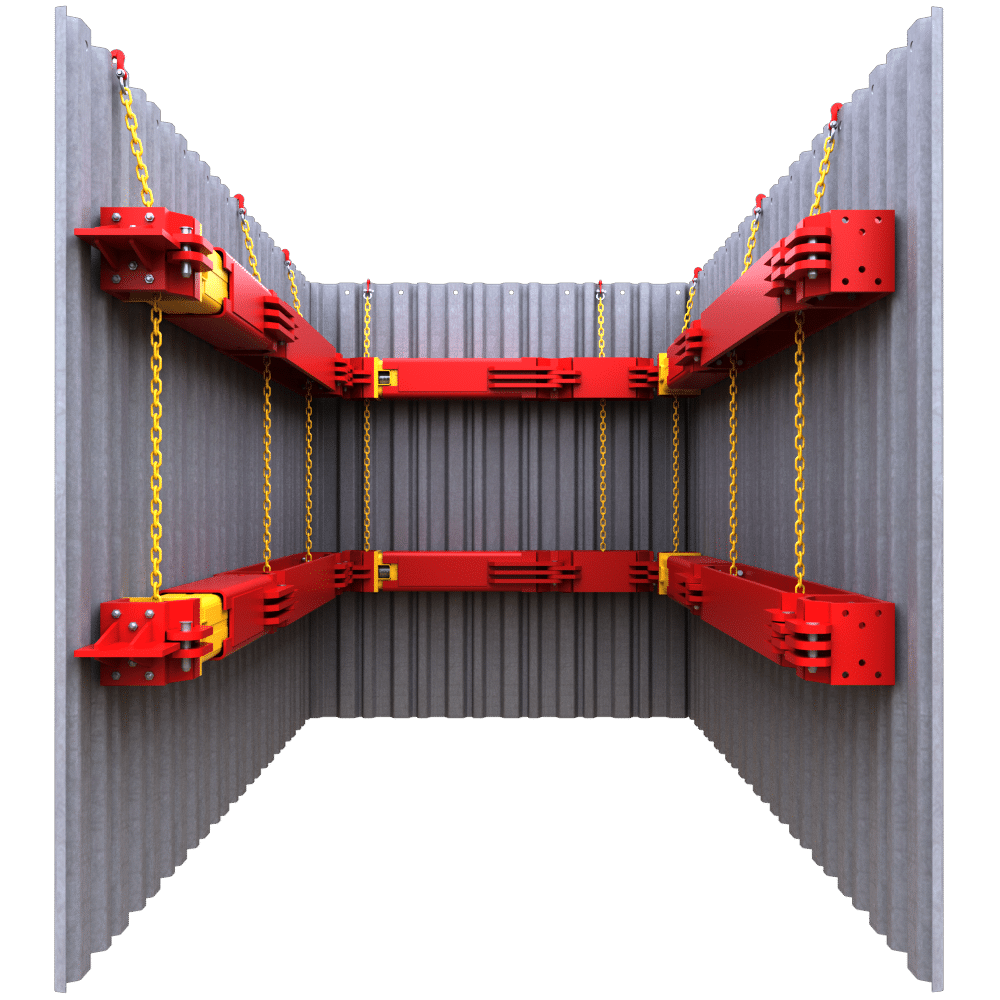

Designed to brace large and deep cofferdams, these are frequently used on major basement and deep substructures where frame loads are high.

Larger sizes possible when combined with 300, 400, 600 and 1000 series bracing struts
Double acting hydraulic power pack combines with a range of fixed length extensions to form brace leg
Compatible with 305 UC and T700 Brace to enable optimum design solutions
Powered by a motorised pump unit

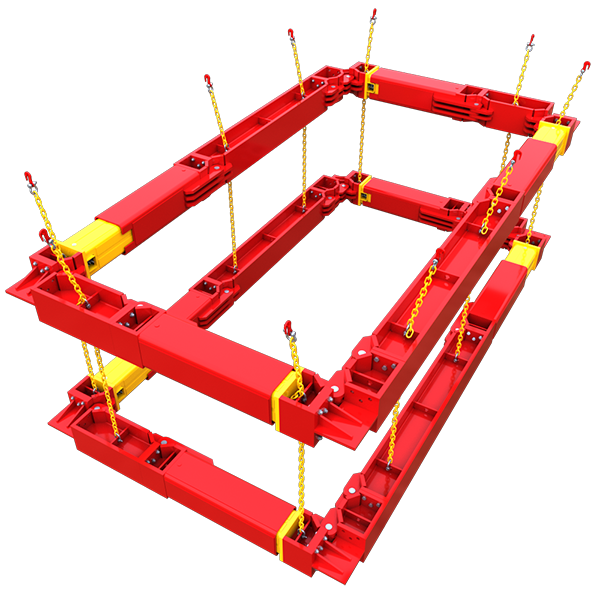

The 406 UC Brace is a heavy duty, modular, hydraulic bracing system, which is suitable for clear spans of up to 15.5m. The range is both simple to assemble and highly versatile and includes a hydraulic power pack and extension pieces.

Description

1250kN 406 UC Ram

406 UC Extension

Length (min - max) (mm)

2096 - 2896

600

1000

2000

3000

4000

5000

6000

7000

8000

9000

10000

Weight (kg)

1490

374

508

868

1228

1588

1992

2309

2659

3173

3388

3749
