Drag Box

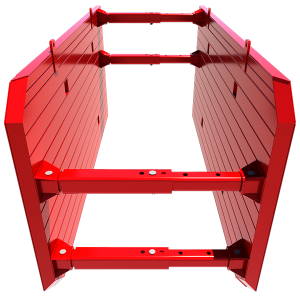

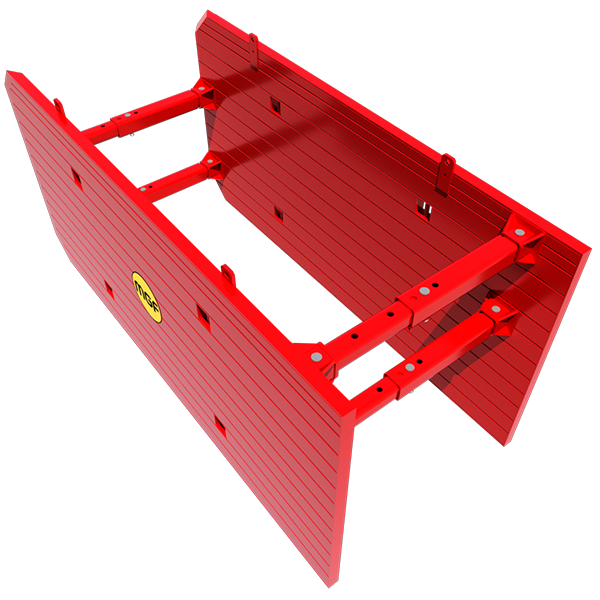

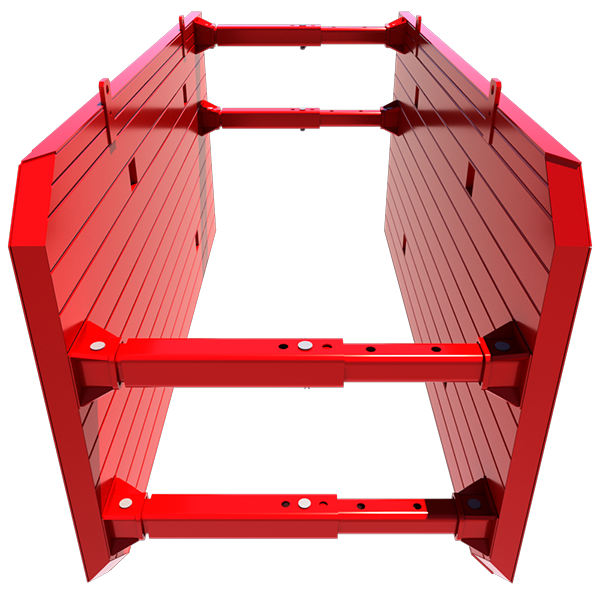

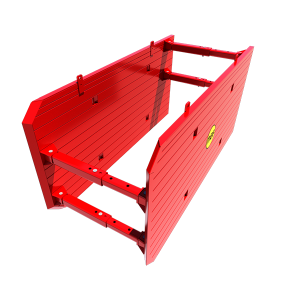

A simple to assemble, two-sided mechanical shield system designed for use in trenches up to 5.0m deep and 3.2m wide.
  • High clearance rear strut to accommodate laid service
  • Front cutting edge to ease froward movement, along pre-excavated trench
  • Designed to be installed by the excavator and lower in place technique
  • ‘Hog-back’ struts available for increased clearance

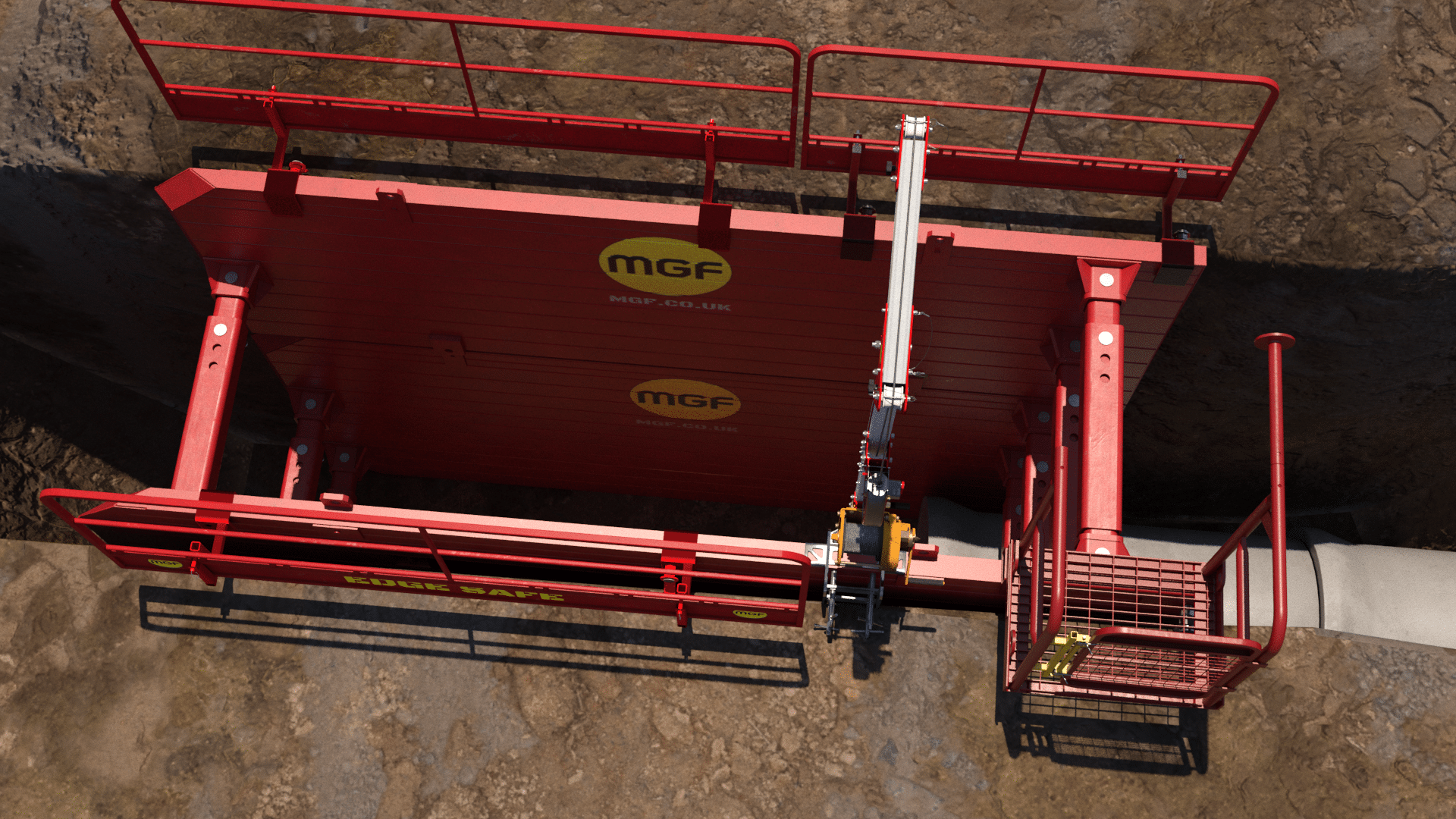

This two-sided trench application is ideal when installing utility pipes in non-urban environments where the ground is self-supporting and ground movement is non-critical.
Description Length x Height (mm)
3220 x 1460
4000 x 2060
5100 x 1824
5100 x 2424
5100 x 3260
7500 x 2048
7500 x 2460
Internal Width (m)
0.6 - 3.0
0.6 - 3.0
0.6 - 3.0
0.6 - 3.0
0.6 - 3.0
0.6 - 3.0
0.6 - 3.0
Panel Thickness (mm)
60
60
100
100
100
100
100
Box Weight (kg)
1004
2028
2612
3186
4720
5120
5920
Length between Struts (m)
2.59
2.97
4.22
4.22
4.22
6.62
6.62
Clearance below Rear Struts (m)
0.79
1.15
1.07
1.37
2.26
1.50
1.50
