Endsafe Struts

Endsafe Struts

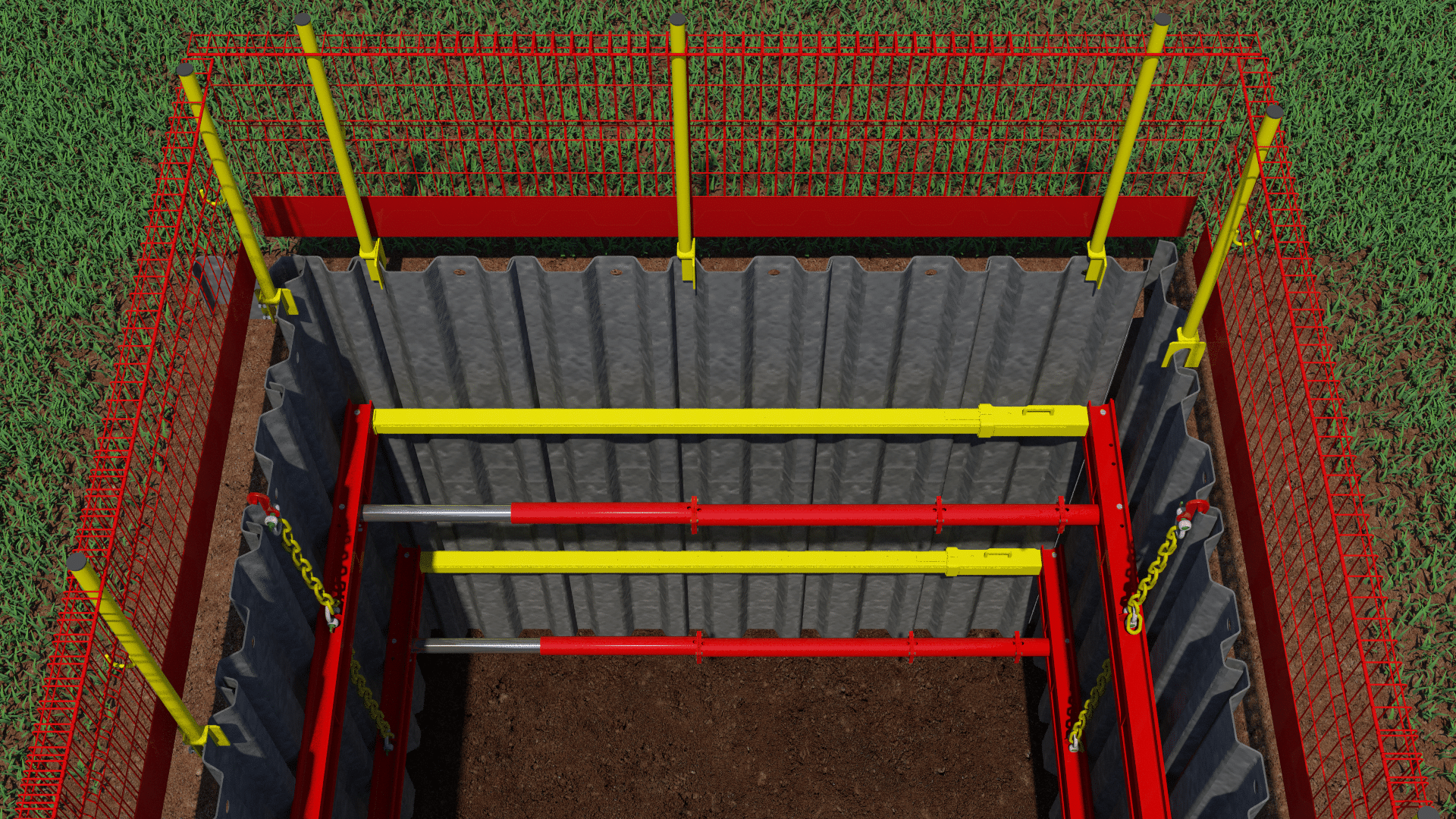

Endsafe Struts are a simple telescopic strut system for use with waler rails and trench sheets. Designed to safely support vertical soil faces at the open ends of trench excavations when it is not possible to safely batter back the ends of the trench to ground level.

Suitable for use with Aluminium, Utility & Heavy Duty Steel Walers.
Light enough to be assembled and installed by hand.

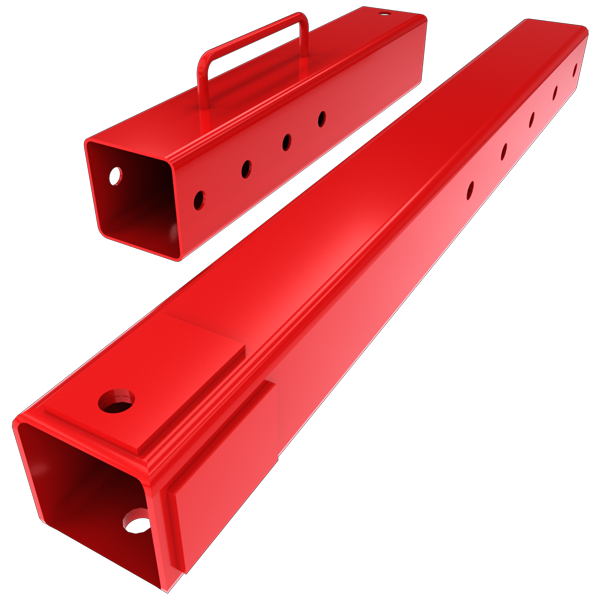

Robust steel struts with pinned connections to waler rails for ease of assembly.

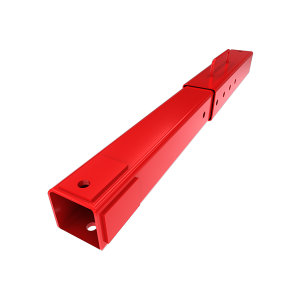

Telescopic struts allows for varying trench widths within the specified limits.

There are 2 ranges, suitable for trench widths from 700mm up to 3375mm. Each features a 500mm long outer section which is built to length using a range of inner sections.

Manhole Box

Clear

Description

550 Endsafe Outer Strut

634 Endsafe Inner Strut

884 Endsafe Inner Strut

1134 Endsafe Inner Strut

1384 Endsafe Inner Strut

1584 Endsafe Inner Strut

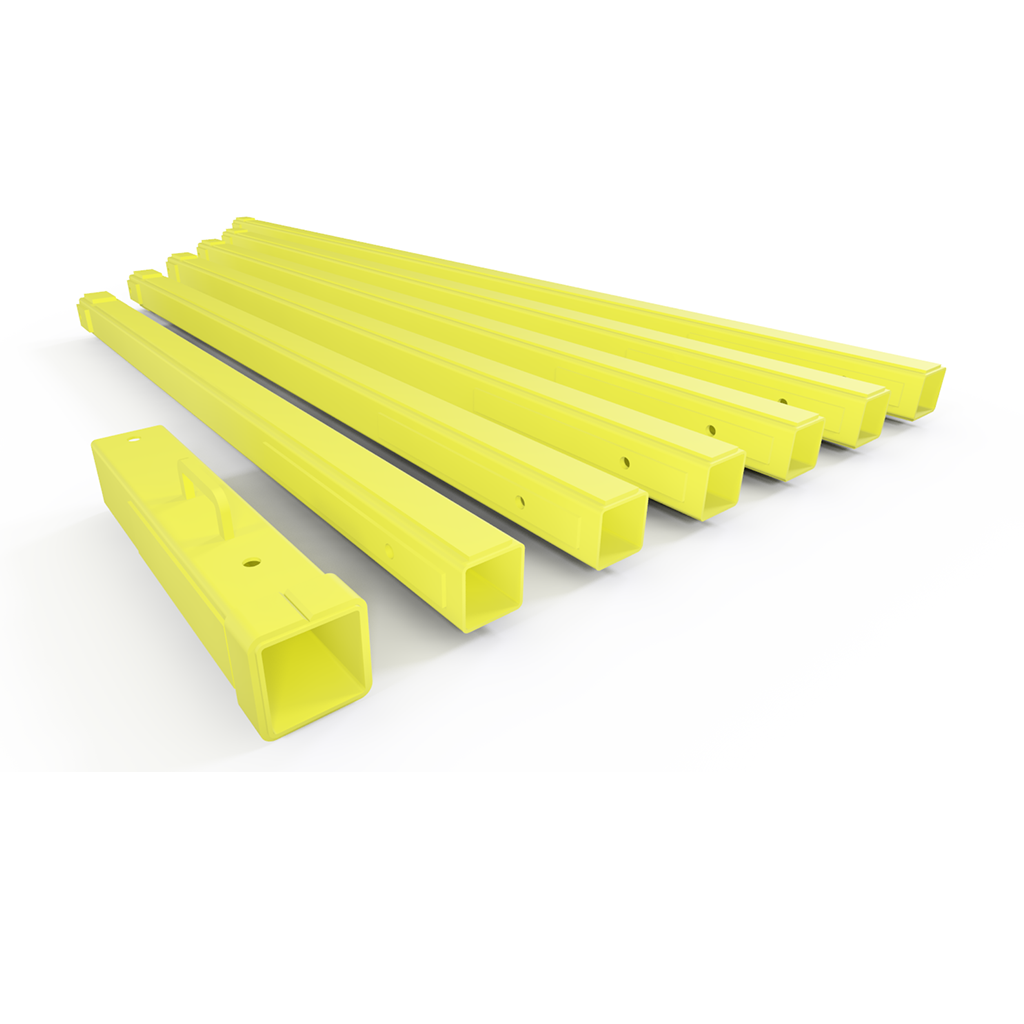

550 HD Endsafe Outer Strut

1584 HD Endsafe Inner Strut

1834 HD Endsafe Inner Strut

2084 HD Endsafe Inner Strut

2334 HD Endsafe Inner Strut

2584 HD Endsafe Inner Strut

2950 HD Endsafe Inner Strut

Trench Width (min - max) (mm)

700 - 1060

965 - 1310

1210 - 1560

1455 - 1810

1650 - 2010

1900 - 2260

2150 - 2510

2400 - 2760

2650 - 3010

3015 - 3375

Weight (kg)

You must be logged in to download files.

Login

Register
