High Clearance Trench Box

A two-sided mechanical excavation support system ideal for installing large diameter pipes and tanks. For us in trenches with widths of up to 5.9m wide and 5.0m deep.
  • Generally suitable for pipe min. lengths of up to 6.0m and a pipe outside diameter of up to 3.0m

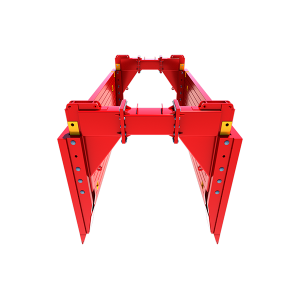

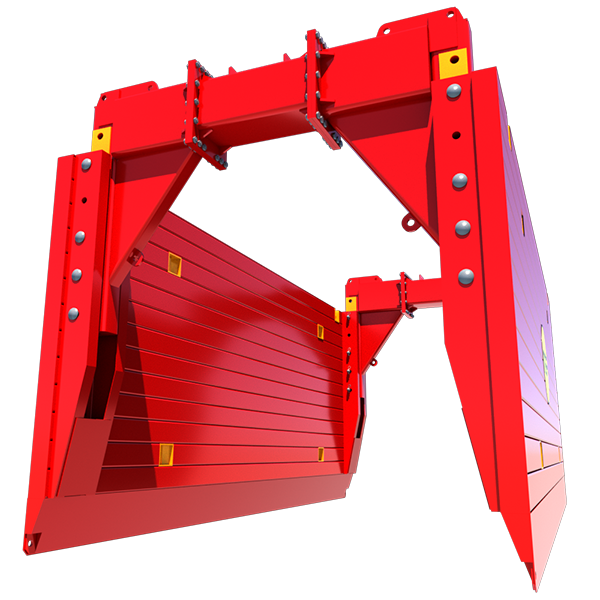

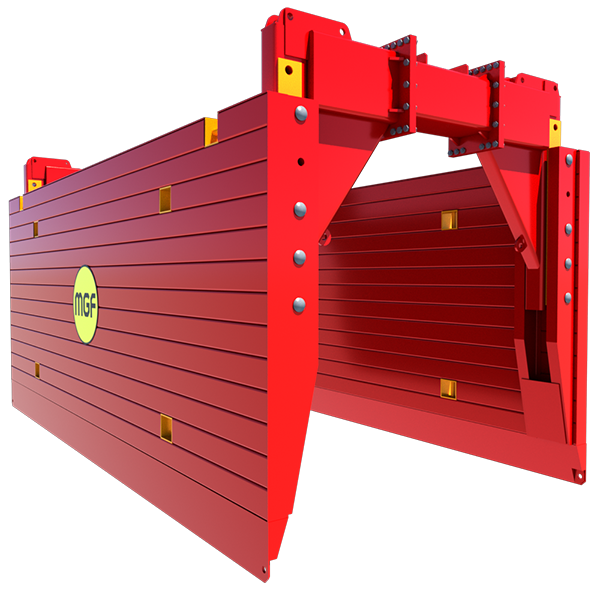

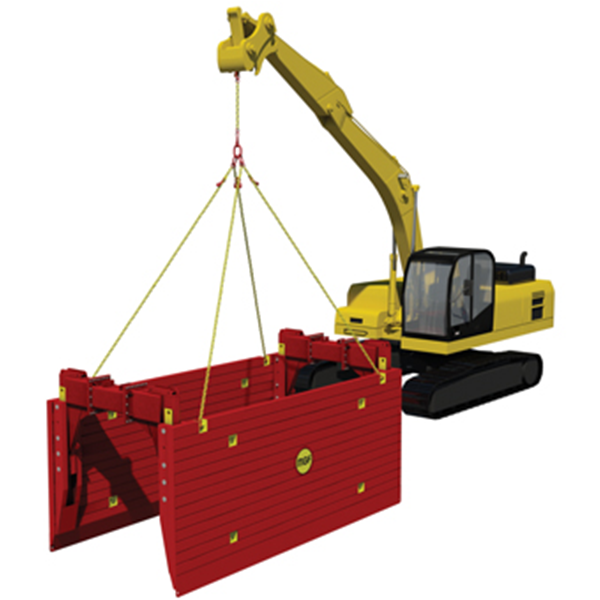

  • Designed to be installed by the excavator and lower in place technique

Description Length x Height (m)
7.0 x 3.0 Base
7.0 x 2.0 Top
Max Depth (m)
5.0
2.0
Panel thickness (mm)
150
150
Approx. Assembled Weight (kg)
9720-11550
4826-5581
Internal Trench Width (m)
2.1-5.6
2.1-5.6
Min. Length Between Struts (m)
5.9
6.2
Max Clearance Below Struts (m)
3.0
0.8
