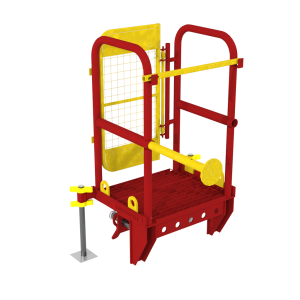

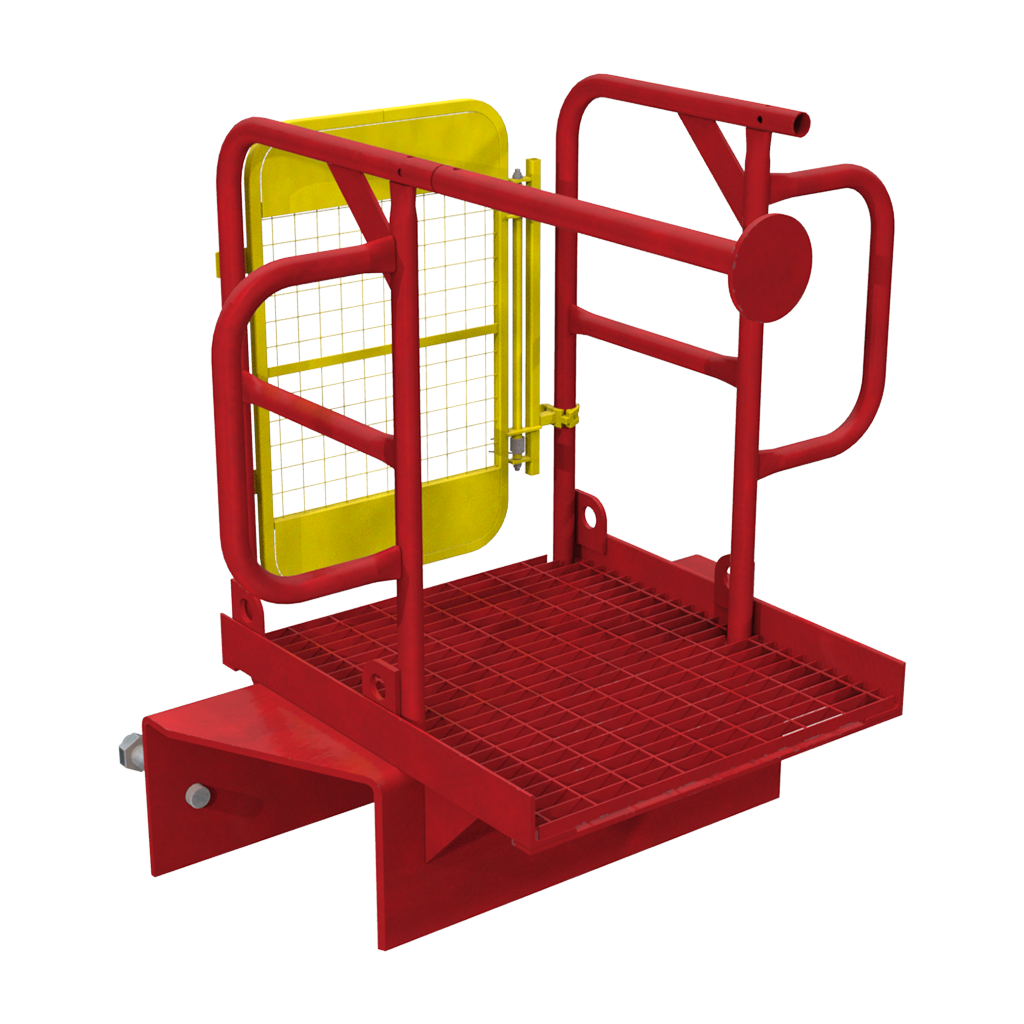

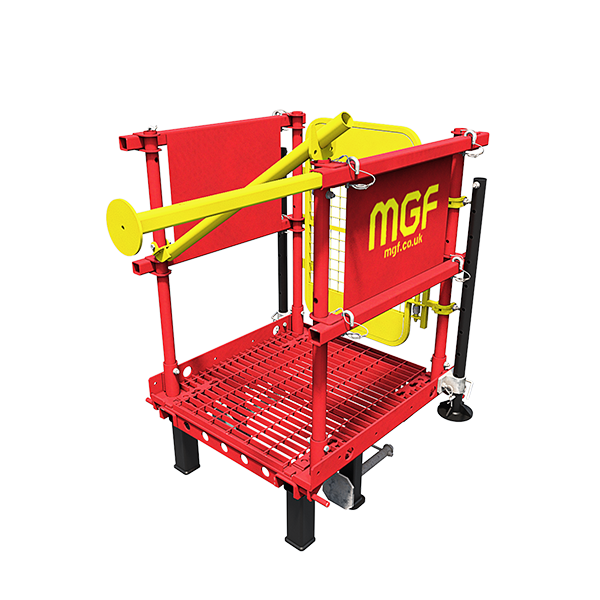

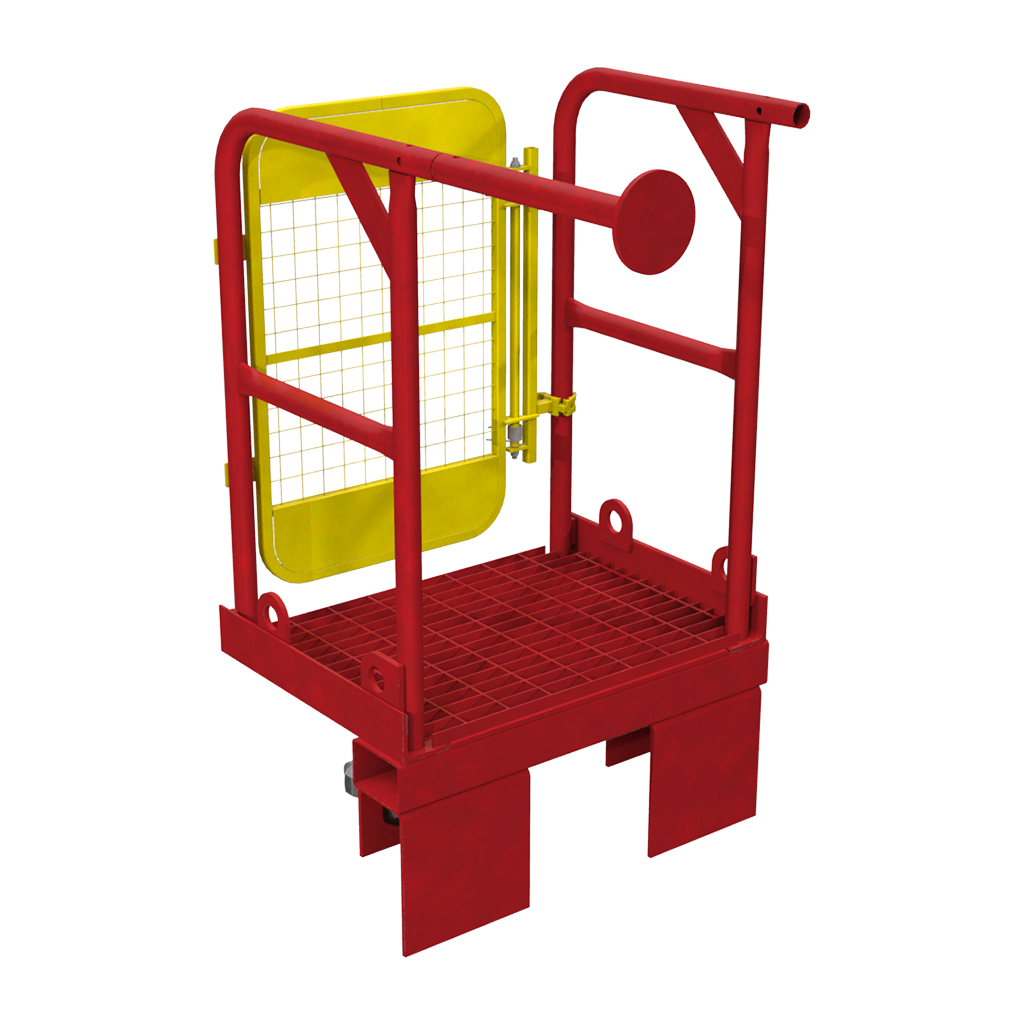

Laddersafe

Laddersafe

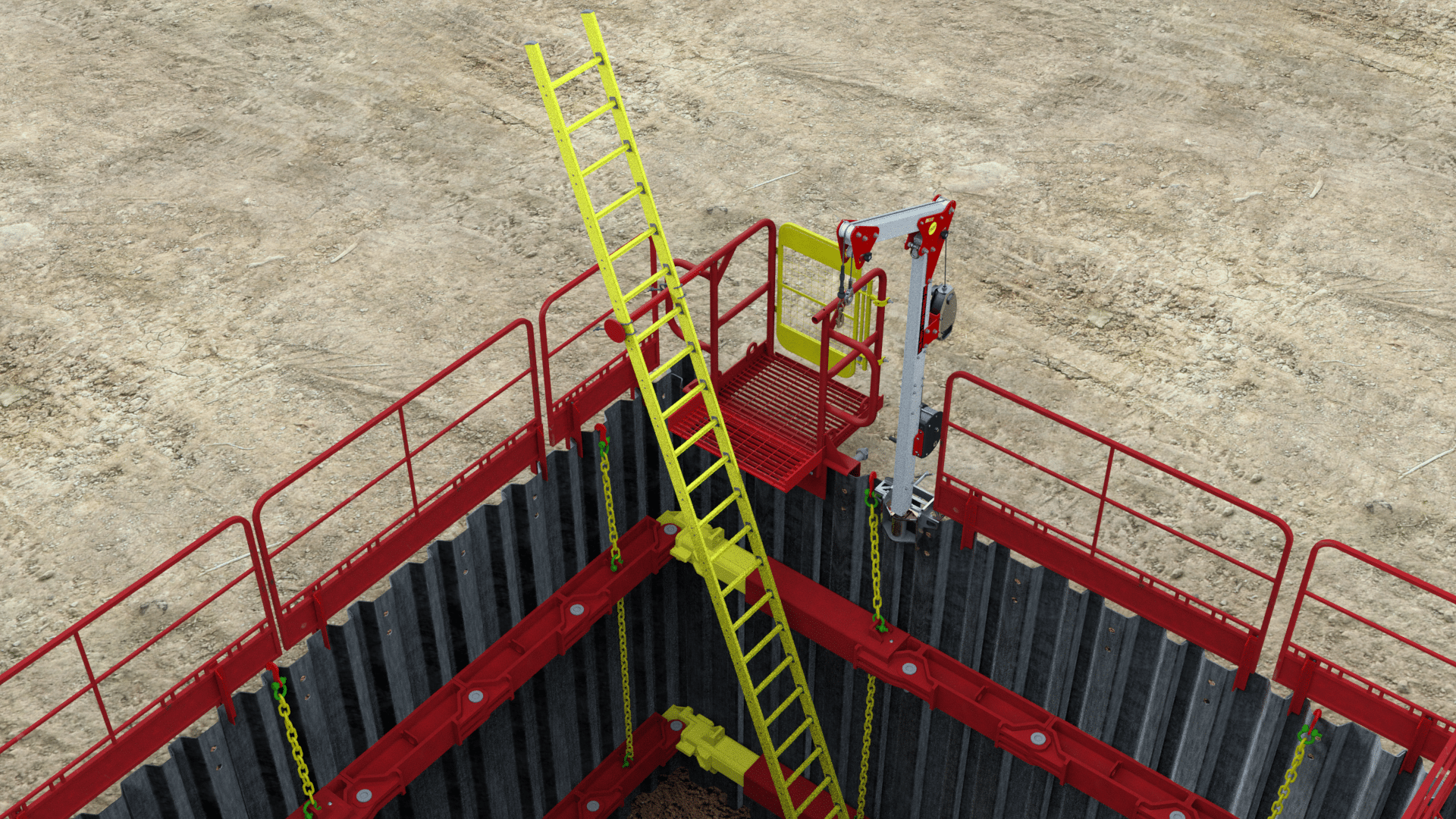

A gated ladder access platform available in a variety of formats that allow it to quickly and effectively clamp to either steel trench sheets, sheet piles or box systems. Designed to be lifted into place by an excavator, this platform allows the safe access and egress of operatives into an excavation.
  • Complies with BS EN 13374 (2013) Class A temporary edge protection systems
  • Compatible with box systems, steel trench sheets and steel piles
  • Interchangeable ladder attachment pole for access from either side
  • Platform extension to suit braced cofferdams
Numerous Laddersafe designs available to suit different shoring applications.
Description
Type 1 Laddersafe
Type 2 Laddersafe
Type 3 Laddersafe
Type 3 Laddersafe for Stairsafe
Mini Laddersafe
Weight (kg)
156
166
277 / 300
330
100
Compatible with
6mm+ thk. Steel Trench Sheets, 60-110mm thk. Steel & Aluminium Box Panels, Framed Excavations up to 406 UC
All Drag Box Panels
Interlocked GU/PU Sheet Piles, Framed Excavations up to 406UC
Interlocked GU/PU Sheet Piles, Framed Excavations up to 406 UC, **150mm thk. High Clearance Trench Box, Stairsafe
60-110mm Steel & Aluminium Box Panels, Steel Trench Sheets, All Boxes and Framed Excavations up to 254 UC Brace
