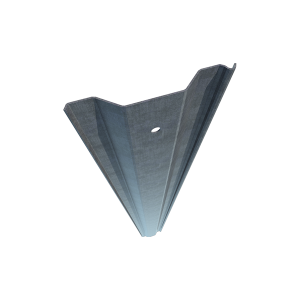

ER 7508

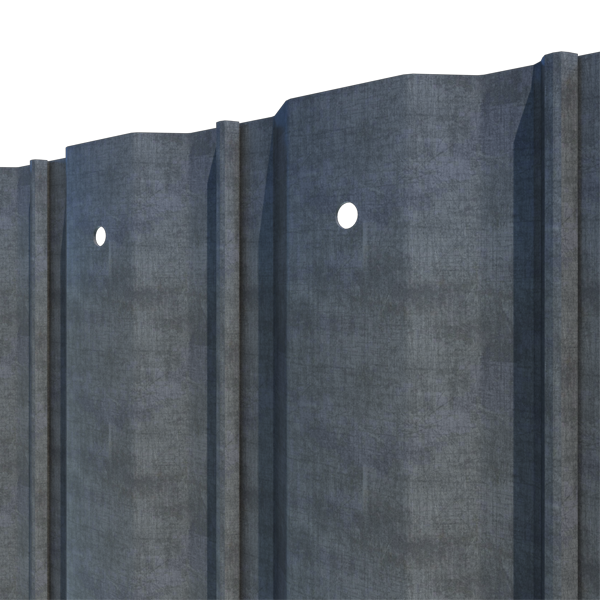

ER 7508 2

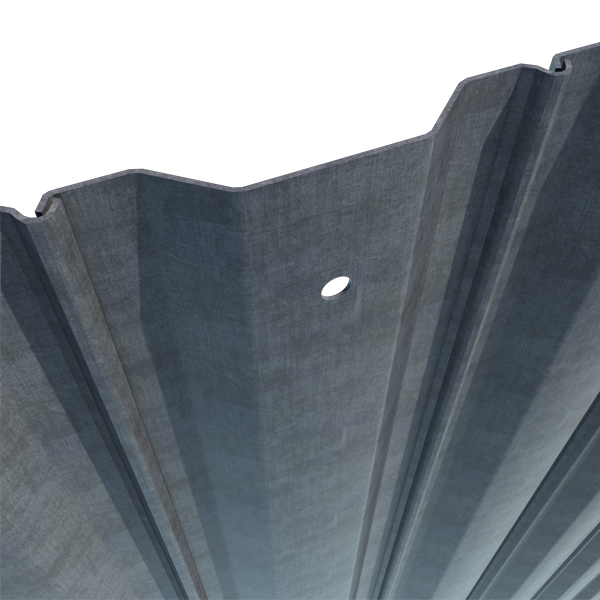

ER 7508 1

Trench Sheets – ER 750/8 (S355 J0C)

Trench sheets provide an effective ground solution to support the vertical faces of small to medium sized trenches and excavations.

Galvanising service
Available lengths: 5m – 9m
Clutch sealing service

Chain Thickness (mm)

Chain Hook

EWL (m)

Chain Shortener

Clear

Profile

ER 750/8

Steel Grade

S355

Width (mm)

742

Height (mm)

94

Thickness (mm)

8.0

Weight (kg/m)

53.6

Weight (kg/m²)

72.2

Section Modulus Z (cm³/m)

254.0

Moment Capacity (kNm/m)

66.0
