Manhole Ring Safety Platform

Manhole Ring Safety Platform

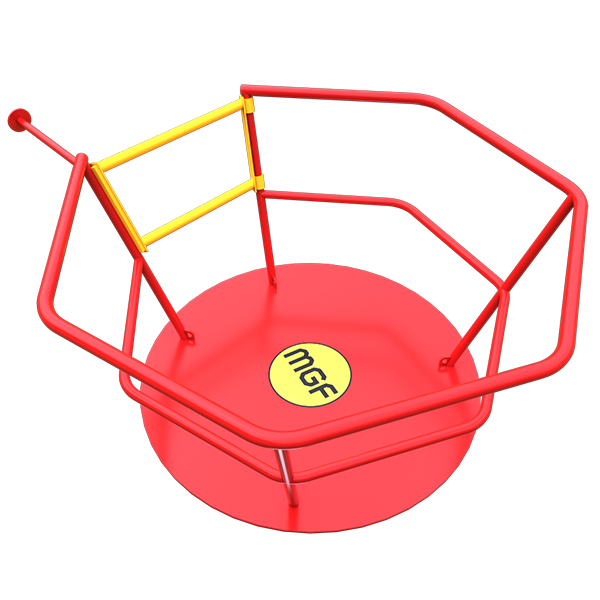

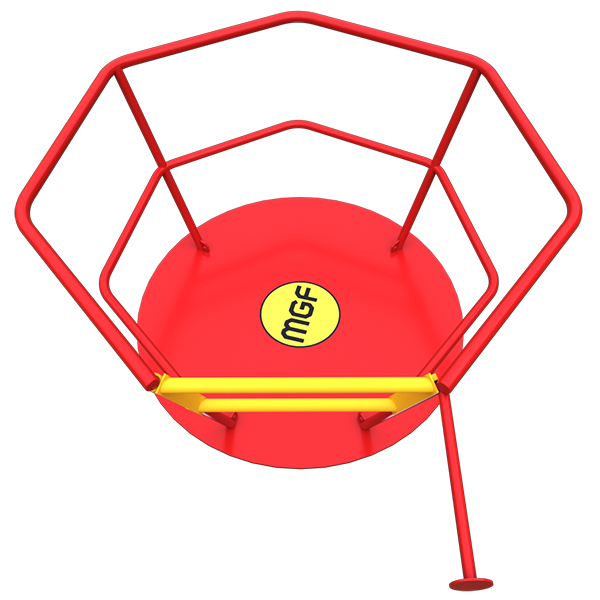

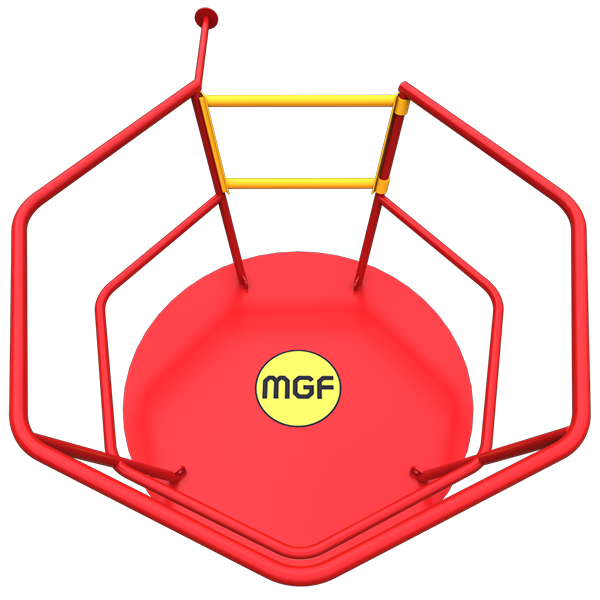

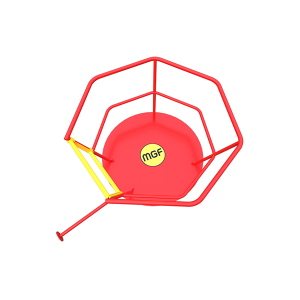

A robust steel constructed manhole ring safety platform with an integrated double hand rail, safety gate and pole ladder support post.

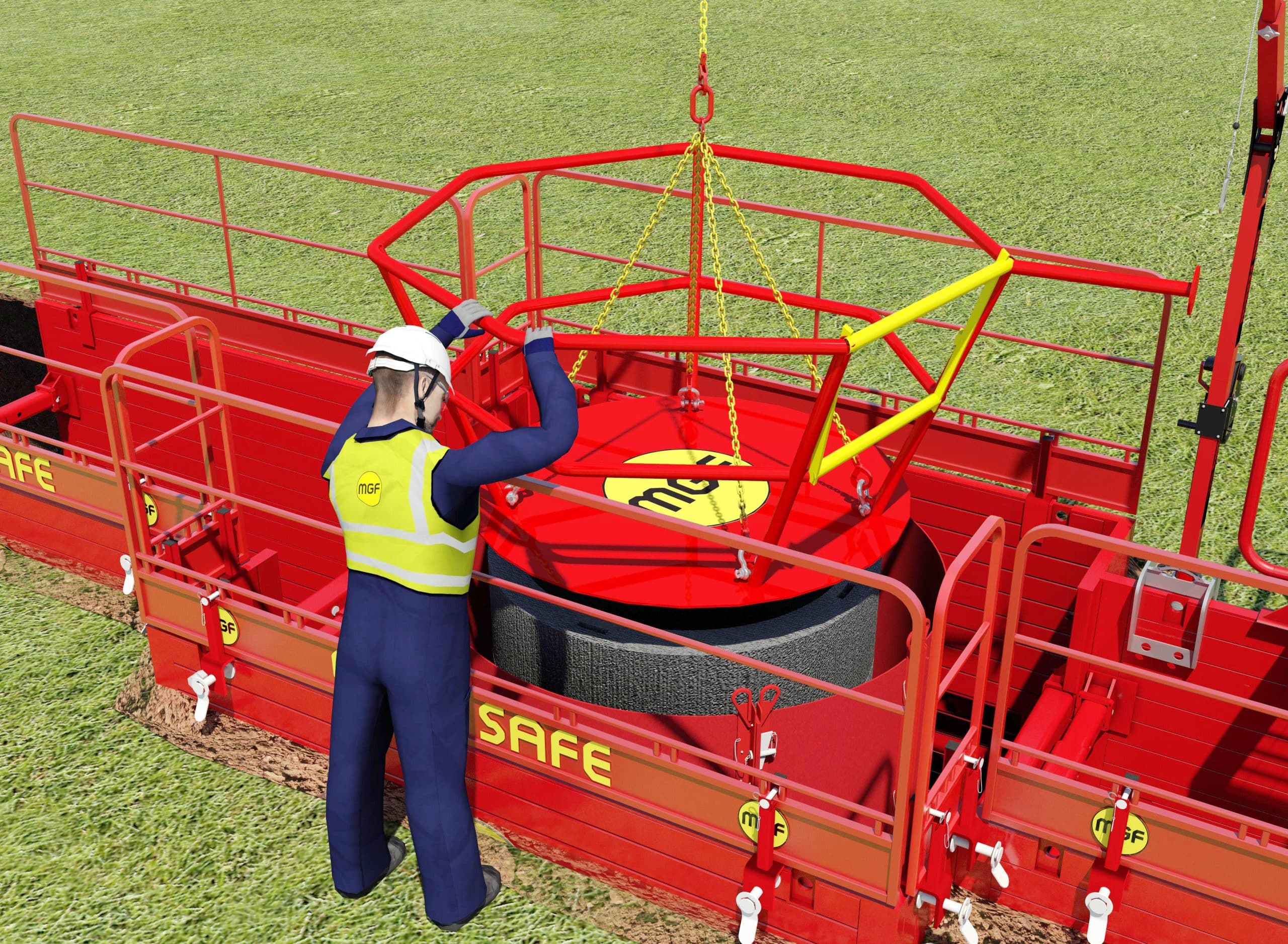

  • For safe access when placing concrete for manhole surrounds
  • Reduces concrete wastage and prevents spill onto benching
Manhole Ring Nominal Diameter (mm)
1050
1200
1350
1500
1800
2100
2400
3000
Platform Diameter (mm)
1210
1380
1540
1700
2030
2350
2680
3380
Weight (kg)
240
270
220
260
340
420
515
1340

No video guide available.
