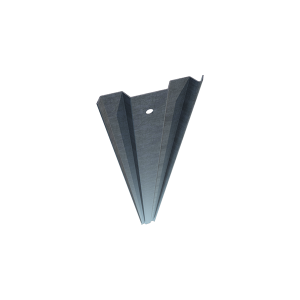

Trench Sheets – Standard (S275 JRC)

Trench Sheets – Standard (S275 JRC)

Trench sheets provide an effective ground solution to support the vertical faces of  trenches and excavations.
  • Galvanising service
  • Clutch sealing service
  • Available lengths: 2m – 4m
Profile
Std S75
Steel Grade
S275
Width (mm)
330
Height (mm)
35
Thickness (mm)
3.5
Weight (kg/m)
11.3
Weight (kg/m²)
34.4
Section Modulus Z (cm³/m)
45.7
Moment Capacity (kNm/m)
9.3
