Utility Trench Box

Utility Trench Box 1
Utility Trench Box 2
Utility Trench Box 1
Utility Trench Box 2

Utility Trench Box

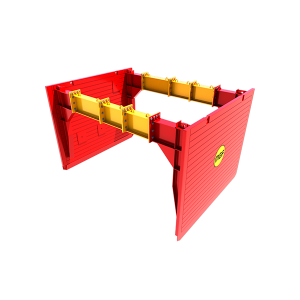

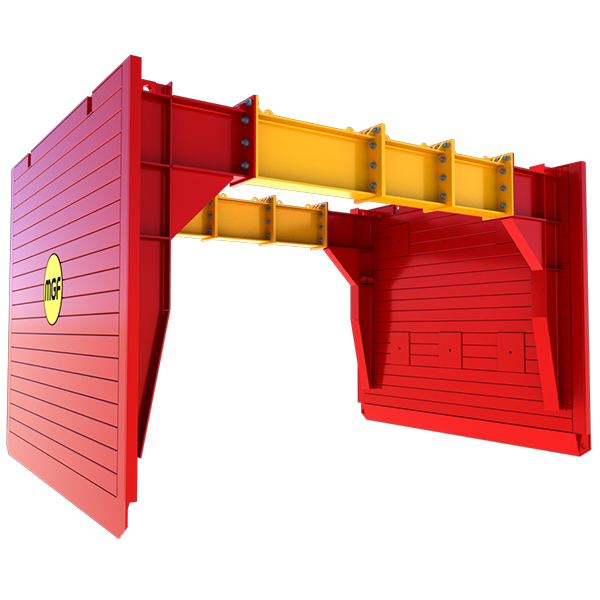

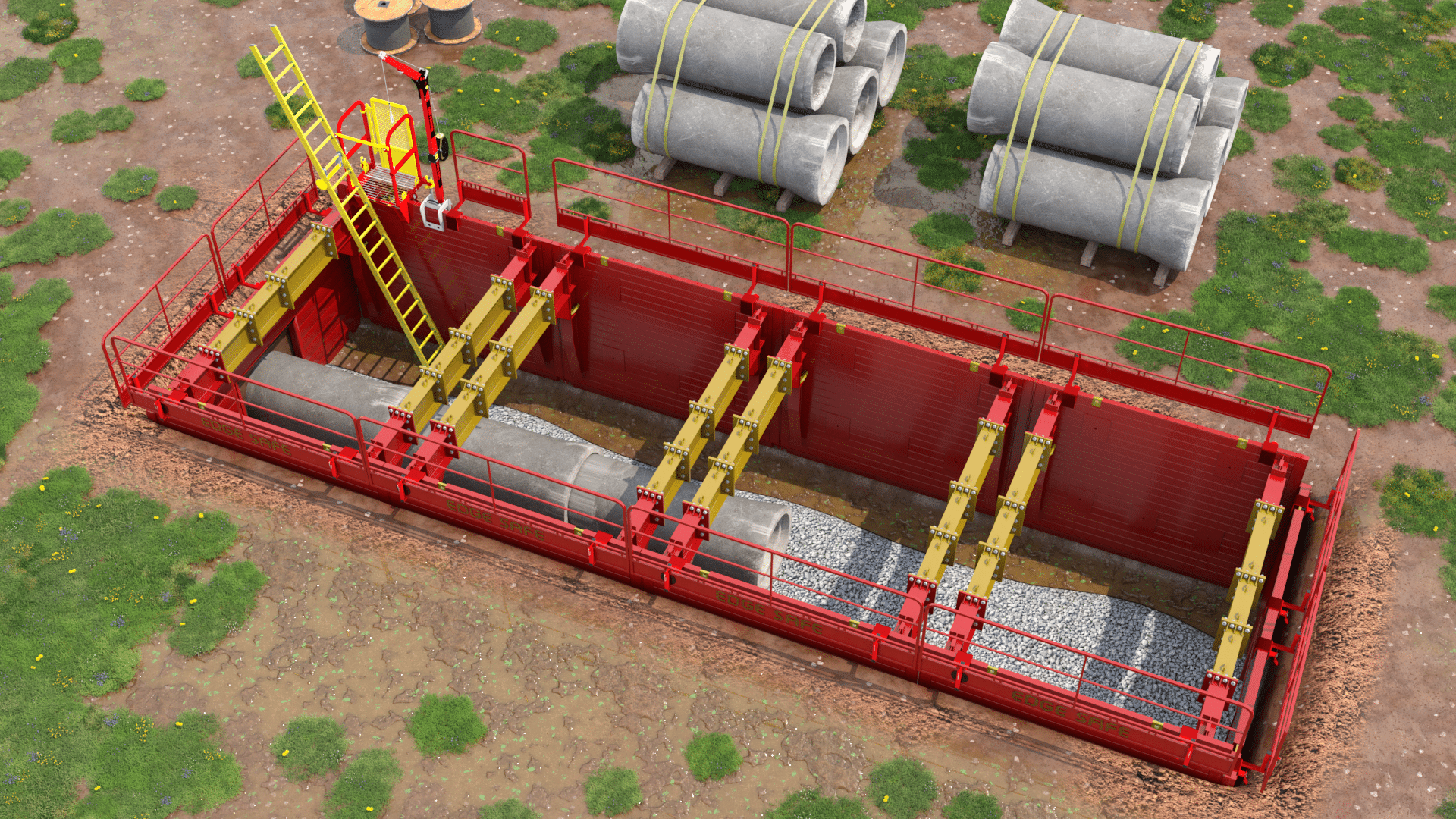

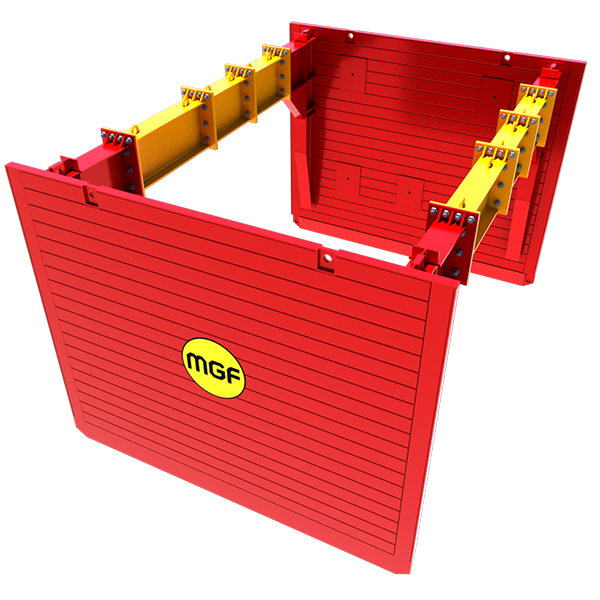

A two-sided mechanical excavation support system designed specifically for utility installation and repairs in trench widths of up to 4.0m and 2.5 deep.
  • Bolted high clearance struts enabling an understrut clearance of 1.95m and horizontal clearance between the struts of 2.18m
  • Compatible with existing MGF shoring safety products
  • Maximum achievable external trench width of up to 4.0m
  • Installed using the excavate and lower in place technique
The utility trench box measures 3.0m in length and 2.5m in height.
External Trench Width (mm)
1620
2300
2620
2970
3300
3620
3970
Internal Trench Width (mm)
1500
2180
2500
2850
3180
3500
3850
Strut Extension Components (per strut)
-
1 No. 675mm (4.1385)
1 No. 1000mm (4.138)
2 No. 675mm (4.1385)
1 No. 675mm (4.1385) & 1 No. 1000mm (4.138)
2 No. 1000mm (4.138)
2 No. 675mm (4.1385) & 1 No. 1000mm (4.138)
Assembled Weight (kg)
1800
1960
2004
2120
2164
2208
2324
