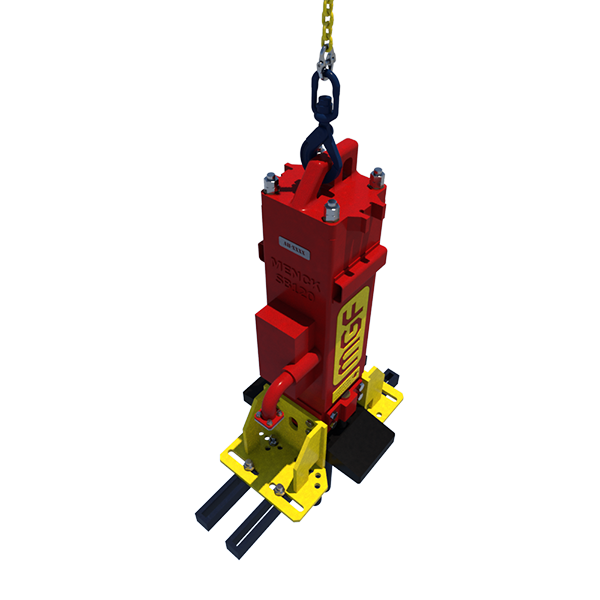

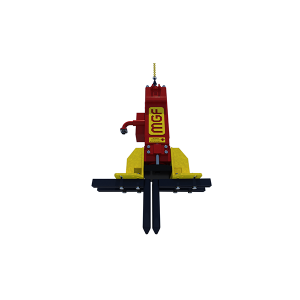

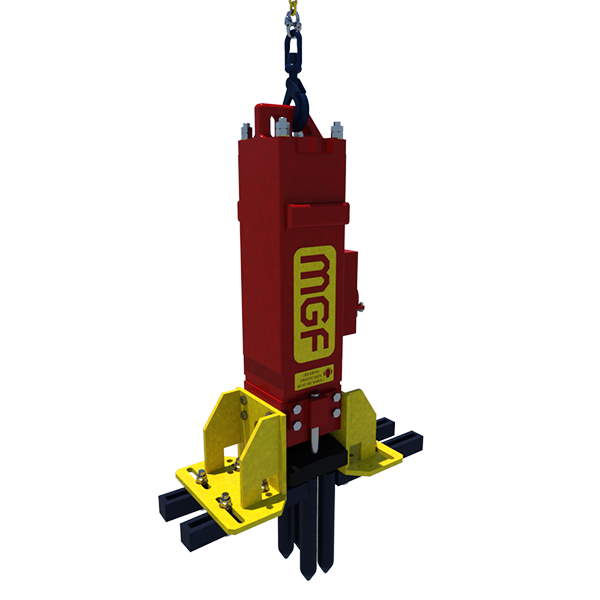

Perfect for when ground conditions are not suitable for a piling hammer. The Air Driven Impact Hammer is powered by an air compressor, which causes it to impact the top of the sheet pile, repeatedly driving the sheet pile into the ground through impact force.

No Hydraulic leaks
High impact rate with powerful impact forces
No electricity required
Low maintenance and operating cost

The Air Driven Impact Hammer is used in combination with an excavator or crane by simply suspending it using a single leg chain. This product provides two Anvil options allowing the configuration suited to all MGF sheet piles as well as AZ sheet piles and king posts.

Model

Anvil Length Option 1 (Length / Width mm)

Anvil Length Option 2 (Length / Width mm)

Assembled Weight - Option 1 (kg)

Assembled Weight - Option 2 (kg)

Percussion Weight (kg)

Theoretical Impact Energy per Impact (kNm)

Theoretical Impact Energy per Impact (kilogram-force meter kg.m)

Stroke Number (air) for Compressor Specification

Operating pressure requirement (air) for compressor specification

Min Compressor Volume required Larger Volume Compressors can be used – but adjust settings to give these values

Air Inlet Connection size

Max Weight of items to be driven by SB120

Menck SB120

530 / 385

950 / 385

2360

2465

390

6.0

611.83

150

6-7 bar or 87-102 psi

11m3/min or 400 CFM

2″ BSP

1600Kg
