Walers and Struts

Walers and Struts

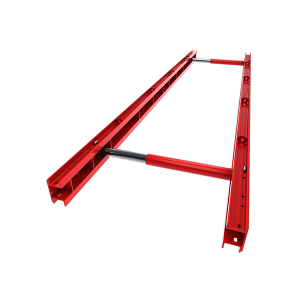

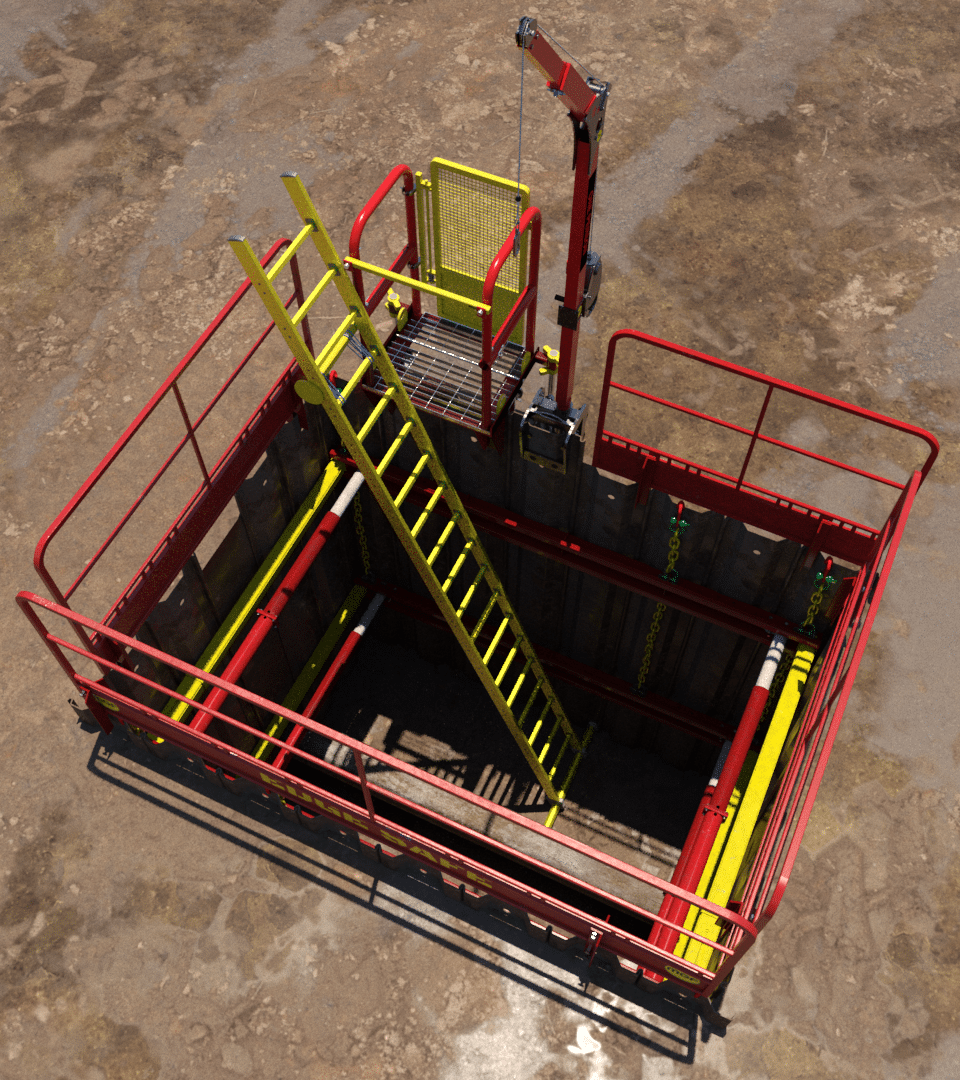

A simple to assemble two-sided, hydraulic bracing system designed for use with steel trench sheets to horizontally brace small trenches for the safe installation of utilities. The complete system can support trench widths of 0.6m to 3.8m and is normally installed using an excavator.
  • A range of waler designs and lengths available to suit the application
  • Allows for the safe installation and repair of utilities
  • Compatible with endsafe struts
  • Designed to be installed using the excavate and lower in place technique

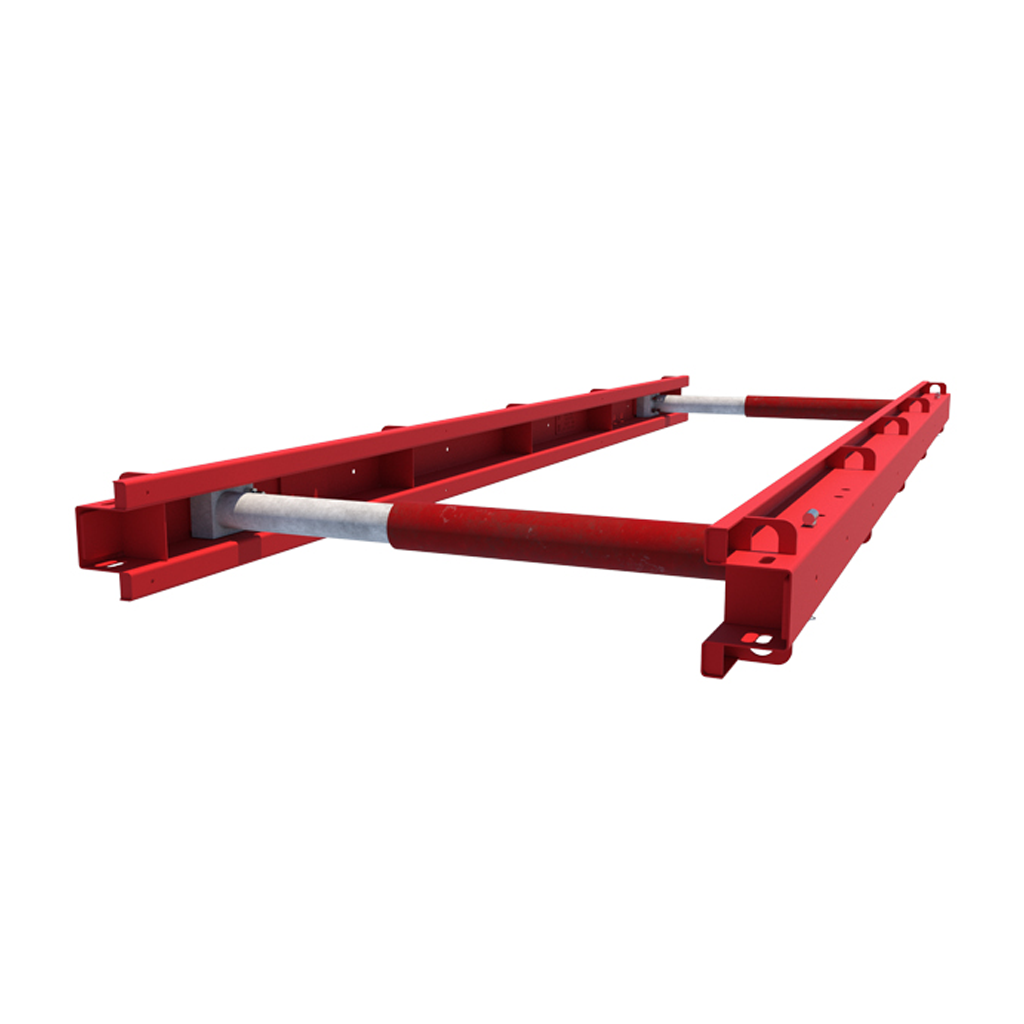

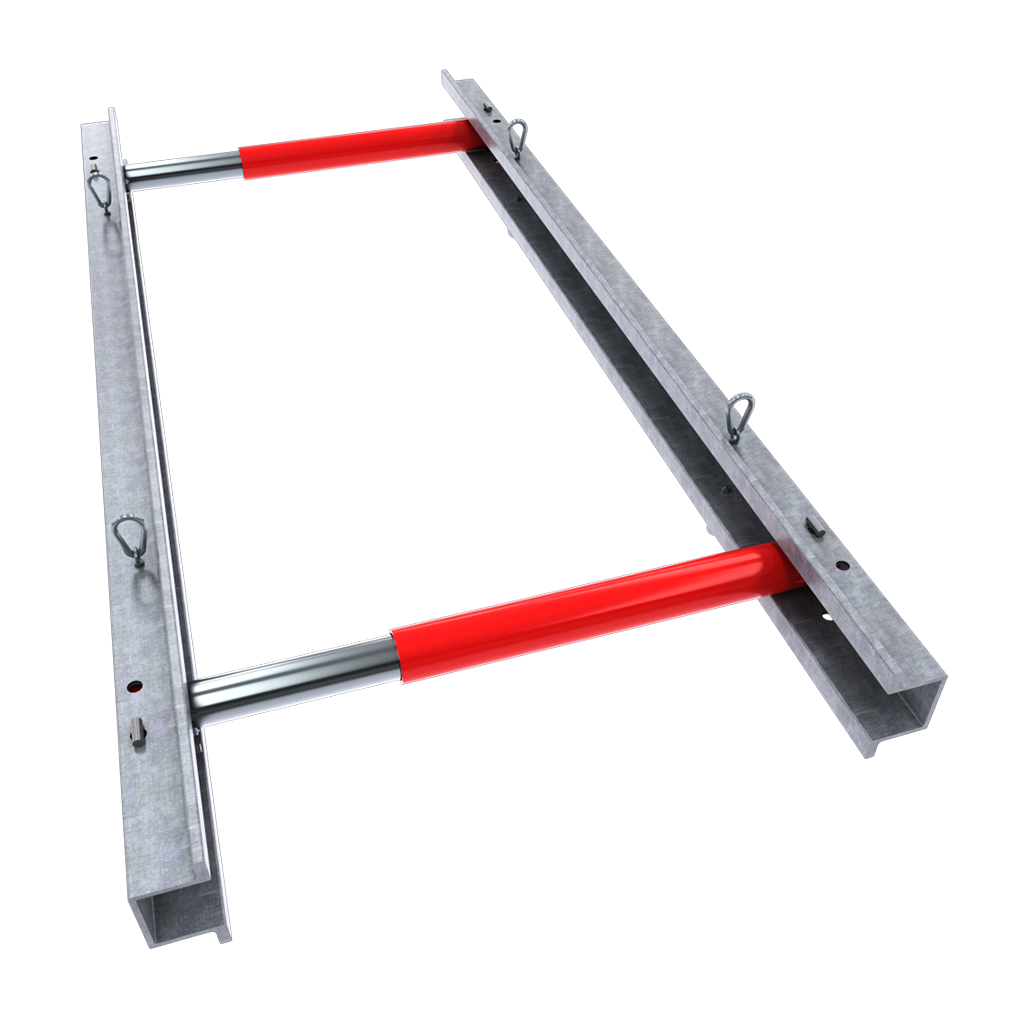

There are 4 different waler designs, Utility Walers, Medium Duty Steel Walers, Heavy Duty Steel Walers and Aluminium Walers. Utility Walers are manufactured out of thin gauge, high grade S700 steel, providing a market leading strength to weight ratio.
Description
Aluminium
Aluminium
Aluminium
Aluminium
Aluminium
Aluminium
Utility
Utility
Utility
Utility
Utility
Utility
Medium Duty
Medium Duty
Medium Duty
Medium Duty
Medium Duty
Medium Duty
Heavy Duty
Heavy Duty
Heavy Duty
Length (mm)
1500
2000
2500
3000
3500
4000
2000
2500
3000
3500
4000
5000
2000
2500
3000
3500
4000
5000
3000
4000
5000
Weight (kg)
18
24
30
36
42
47
31
37
43
48
55
135
70
88
97
112
129
180
112
148
184
Description
550 (A-80)
550 (A-95)
800 (C-80)
800 (C-95)
Extension 1
Extension 2
Extension 3
SWL (kN)
80
95
80
95
N/A
N/A
N/A
Length (min - max) (mm)
550 - 900
546 - 903
800 - 1400
806 - 1422
250
500
1000
Weight (kg)
13
18
18
23
10
20

You must be logged in to download files.

Login

Register
